Cod. 006.0001.1900
01/04/2021 V.2.6
Pioneer
Pulse
321MSR
Instruction manual
Translation of original instructions
ENG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pioneer Pulse 321MSR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weco Pioneer Pulse 321MSR

Summary of Contents for Weco Pioneer Pulse 321MSR

  • Page 1 Cod. 006.0001.1900 01/04/2021 V.2.6 Pioneer Pulse 321MSR Instruction manual Translation of original instructions...
  • Page 2 Cod. 006.0001.1900 Pioneer Pulse 321MSR 01/04/2021 V.2.6 ENGLISH WELD THE WORLD...

  • Page 3: Table Of Contents

    FRONT PANEL ............................. 6 REAR PANEL ............................... 7 UNIT ASSEMBLY ............................8 USER INTERFACE ............................ 10 TECHNICAL DATA ............................ 11 PIONEER PULSE 321MSR ........................11 Pioneer Pulse 321MSR→WF-104 CABLE ....................12 ELECTRICAL DIAGRAM .......................... 13 PIONEER PULSE 321MSR ........................13 SPARE PARTS ............................16...

  • Page 4: Introduction

    Cod. 006.0001.1900 Pioneer Pulse 321MSR 01/04/2021 V.2.6 ENGLISH WELD THE WORLD INTRODUCTION IMPORTANT! This handbook must be consigned to the user prior to installation and commissioning of the unit. Read the "General prescriptions for use" handbook supplied separately from this handbook before installing and commissioning the unit.

  • Page 5: Introduction

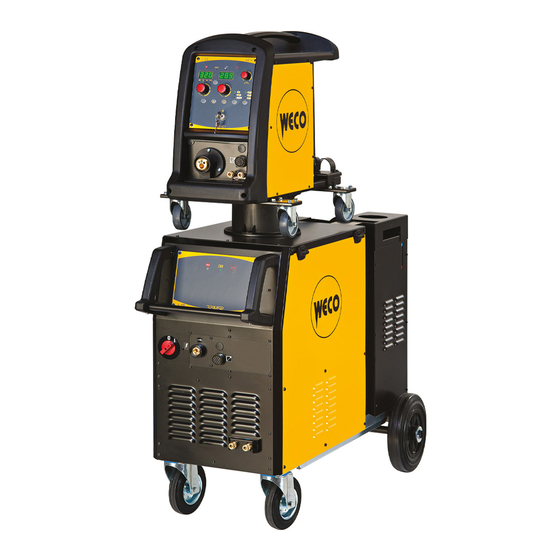

    Pioneer Pulse 321MSR Cod. 006.0001.1900 01/04/2021 V.2.6 ENGLISH WELD THE WORLD 1.1 INTRODUCTION Pioneer Pulse 321MSR is a power source for welding. When combined with a wire feeder it can be used for MIG/MAG welding. Accessories that can be connected to the unit: - Wire feeding unit. - Liquid cooler for torches. Consult your dealer for an updated list of accessories and the latest available new products.

  • Page 6: Installation

    Cod. 006.0001.1900 Pioneer Pulse 321MSR 01/04/2021 V.2.6 ENGLISH WELD THE WORLD INSTALLATION DANGER! Lifting and positioning Read the warnings highlighted by the following symbols in the “General prescriptions for use”. 2.1 CONNECTIONS TO THE ELECTRICAL MAINS NETWORK The mains power supply features to which the equipment should be connected are given in chapter “TECHNICAL DATA”. The machine can be connected to motorgenerators provided their voltage is stabilised. Connect/disconnect the various devices with the machine switched off. 2.2 FRONT PANEL ○...

  • Page 7: Rear Panel

    Pioneer Pulse 321MSR Cod. 006.0001.1900 01/04/2021 V.2.6 ENGLISH WELD THE WORLD 2.3 REAR PANEL ○ Cooler power feeding connector [Item 1]. • Voltage: 230 V a.c. • Current output: 0.8 A • IP protection rating: IP20 (cap open) / IP66 (cap closed) DANGER! High voltage! If the socket is not connected to any devices always close the cap: presence of hazardous voltage levels! ○...

  • Page 8: Unit Assembly

    Cod. 006.0001.1900 Pioneer Pulse 321MSR 01/04/2021 V.2.6 ENGLISH WELD THE WORLD ○ Connector for connection to the programmer. [Item 6]. • ( Programming connector for the process circuit board). You can update the software of the equipment using the programming kit. ○ Signals connector for automatic application. [Item 7]. 2.4 UNIT ASSEMBLY 1. Fit the front swivel wheels with the supplied screws. 2. Screw the fixed rear wheels to the studs in the base of the unit and secure them with the supplied nuts. 3. Mount the cooler in the relevant location. 4. Screw the cooler fixing bracket to the welding power source chassis using the supplied screws. 5. Screw the base of the cooler to the unit base using the supplied screws. 6. Connect the plug of the cooler power cable to the cooler power socket on the rear panel of the...
  • Page 9 Pioneer Pulse 321MSR Cod. 006.0001.1900 01/04/2021 V.2.6 ENGLISH WELD THE WORLD welding power source.

  • Page 10: User Interface

    Cod. 006.0001.1900 Pioneer Pulse 321MSR 01/04/2021 V.2.6 ENGLISH WELD THE WORLD USER INTERFACE Pioneer Pulse 321MSR CODE SYMBOL DESCRIPTION This LED illuminates to show an anomaly in the operating conditions. For information on alarm management, please refer to the relevant section in the manual of the wire feeder. This LED illuminates to confirm the presence of power on the output sockets.

  • Page 11: Technical Data

    Electromagnetic compatibility (EMC) Directives applied Low voltage (LVD) Restriction of the use of certain hazardous substances (RoHS) Construction standards EN 60974-1; EN 60974-10 Class A Equipment compliant with European directives in force Equipment suitable in an environment with increased hazard of electric shock Conformity markings Equipment compliant with WEEE directive Equipment compliant with RoHS directive 4.1 PIONEER PULSE 321MSR EN 60974-1 Construction standards EN 60974-10 Class A Supply voltage 3 x 400 V~±15 % / 50-60 Hz Mains protection 25 A Delayed Dimensions ( L x D x H ) 1110 x 530 x 750 mm Weight...

  • Page 12: Pioneer Pulse 321Msr→Wf-104 Cable

    Cod. 006.0001.1900 Pioneer Pulse 321MSR 01/04/2021 V.2.6 ENGLISH WELD THE WORLD Pioneer Pulse 321MSR→WF-104 CABLE...

  • Page 13: Electrical Diagram

    Pioneer Pulse 321MSR Cod. 006.0001.1900 01/04/2021 V.2.6 ENGLISH WELD THE WORLD ELECTRICAL DIAGRAM 6.1 PIONEER PULSE 321MSR IR IR RS232 COM 1 RS232 COM 1 JP1 MORS. JP1 MORS. JP1 MFT 4V JP1 MFT 4V 1 1 2 2 3 3 4 4...
  • Page 14 Cod. 006.0001.1900 Pioneer Pulse 321MSR 01/04/2021 V.2.6 ENGLISH WELD THE WORLD 040.0003.0060 040.0003.0060 J1 J1 040.0003.1002 040.0003.1002 J2 J2 050.000X.0057 050.000X.0057 050.000X.0044 050.000X.0044 J2 J2 J1 J1 J3 J3 J3 J3 J1 J1 J2 J2 J3 J3 BROWN BROWN J1 J1...
  • Page 15 Pioneer Pulse 321MSR Cod. 006.0001.1900 01/04/2021 V.2.6 ENGLISH WELD THE WORLD 040.0003.0060 040.0003.0060 022.0002.0190 022.0002.0190 MAINS SWITCH MAINS SWITCH 022.0002.0215 022.0002.0215 BLACK BLACK 022.0002.0131 022.0002.0131 J1 J1 040.0003.1002 040.0003.1002 050.000X.0057 050.000X.0057 BLACK BLACK 050.0001.0147 050.0001.0147 J2 J2 J1 J1 J3 J3...

  • Page 16: Spare Parts

    Cod. 006.0001.1900 Pioneer Pulse 321MSR 01/04/2021 V.2.6 ENGLISH WELD THE WORLD SPARE PARTS 7.1 PIONEER PULSE 321MSR 56 55 62 61 60 59 10 11 12 13 14 15 17 18 19 20 21 22 23 24 25 26...
  • Page 17 Pioneer Pulse 321MSR Cod. 006.0001.1900 01/04/2021 V.2.6 ENGLISH WELD THE WORLD N° CODE DESCRIPTION 011.0006.0030 RIGHT HANDLE 011.0016.0128 FRONT HANDLE 021.0001.0259 FIXED SOCKET 400 A 011.0006.0029 LEFT HANDLE 013.0022.0301 FRONT PANEL LABEL 013.0000.8013 LOGIC BOARD PLATE 050.0001.0096 LED BOARD 050.5129.0000 COMPLETE FRONT PANEL 011.0016.0134 FRONT PLATE (1) 040.0001.0017 THREE-POLE SWITCH 011.0016.0145...
  • Page 18 Cod. 006.0001.1900 Pioneer Pulse 321MSR 01/04/2021 V.2.6 ENGLISH WELD THE WORLD N° CODE DESCRIPTION 011.0016.0146 TUNNEL HOUSING (1) 044.0004.0020 OUTPUT INDUCTOR 042.0003.0041 POWER TRANSFORMER 045.0000.0017 CABLE CLAMP 006.0002.0022 WF SUPPORT 011.0016.0140 UPPER COVER 011.0016.0148 INTERNAL PLATE 050.0002.0057 POWER SUPPLY CONTROL BOARD 050.0002.0102 BUS-SUPPLY BOARD 011.0016.0149...
  • Page 19 Pioneer Pulse 321MSR Cod. 006.0001.1900 01/04/2021 V.2.6 ENGLISH WELD THE WORLD...
  • Page 20 Cod. 006.0001.1900 01/04/2021 V.2.6 www.weco.it...
