- Page 1 Cod.006.0001.0206 09/05/2023 v1.0 Cruiser 150TP Instruction manual Translation of original instructions...
- Page 2 Cod.006.0001.0206 Cruiser 150TP 09/05/2023 v1.0 ENGLISH WELD THE WORLD...
-
Page 3: Table Of Contents
REAR PANEL ............................... 6 PREPARING FOR MMA WELDING ......................7 PREPARING FOR TIG WELDING ....................... 8 COMMISSIONING ............................9 USER INTERFACE ............................9 WELDING PARAMETERS ......................... 10 TECHNICAL DATA ............................ 11 SPARE PARTS ............................13 ELECTRICAL DIAGRAM .......................... 15 Cruiser 150TP ............................15... -
Page 4: Introduction
Cod.006.0001.0206 Cruiser 150TP 09/05/2023 v1.0 ENGLISH WELD THE WORLD INTRODUCTION IMPORTANT! This handbook must be consigned to the user prior to installation and commissioning of the unit. Read the “General prescriptions for use” handbook supplied separately from this handbook before installing and commissioning the unit. -
Page 5: Introduction

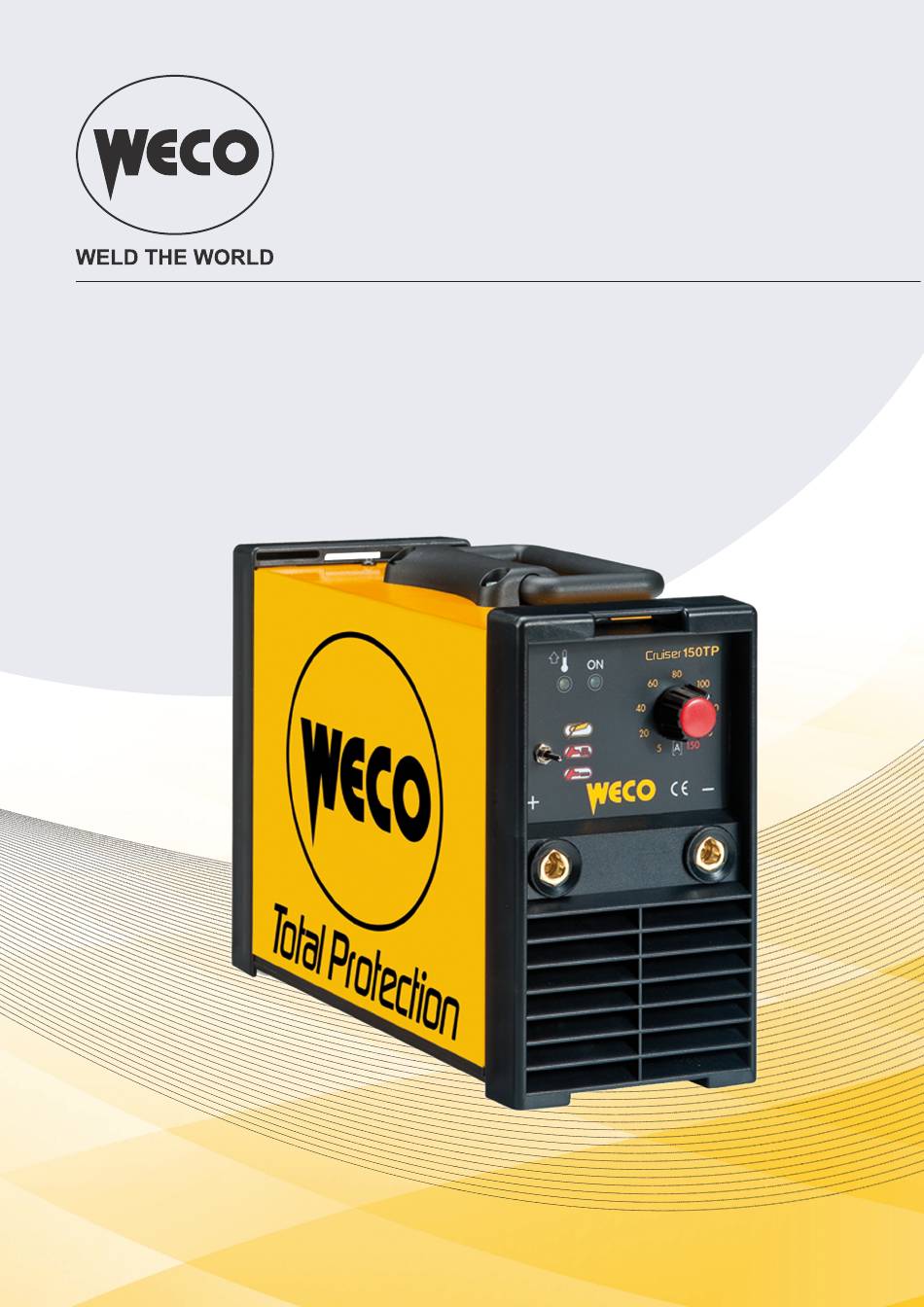

Cruiser 150TP Cod.006.0001.0206 09/05/2023 v1.0 ENGLISH WELD THE WORLD 1.1 INTRODUCTION Cruiser 150TP is an advanced inverter power source characterized by a robust and reliable industrial construction. It is recommended for MMA welding and TIG DC applications providing excellent arc characteristics. Cruiser 150TP is ideal for operations on site like basic maintenance and building construction. A built-in Total Protection Device saves the inverter components from overvoltage and makes the unit suitable for use with unstable power supply and motor-generators. Factory optimized Hot Start, Arc Force and Anti Sticking allow an easy and excellent quality welding using electrodes up to 3.25 mm diameter. In TIG DC, Pulse selection is included, making Cruiser 150TP unique in its range. Lift Start function guarantees arc ignition without damaging the tungsten electrode. INSTALLATION DANGER! Lifting and positioning Read the warnings highlighted by the following symbols in the “General prescriptions for use”. -
Page 6: Front Panel
Cod.006.0001.0206 Cruiser 150TP 09/05/2023 v1.0 ENGLISH WELD THE WORLD 2.2 FRONT PANEL ○ Positive pole welding socket [Part. 1]. ○ Negative pole welding socket [Part. 2]. 2.3 REAR PANEL ○ Warning LED for overcut protection triggering. In case of over-voltage in the supply line, the sup- ply to the power source is cut off. The overcut protection protects electronic parts of the machine against damage caused by voltage surges [Part. 1]. ○ Welding power source ON/OFF switch [Part. 2]. ○ Power cable [Part. 3]. • Total length (including internal part): 3.0 m • Number and cross section of wires: 3 x 2.5 mm • Power plug type: Schuko... -
Page 7: Preparing For Mma Welding
Cruiser 150TP Cod.006.0001.0206 09/05/2023 v1.0 ENGLISH WELD THE WORLD 2.4 PREPARING FOR MMA WELDING 1. Set the welding power source ON/OFF switch to “O” (unit de-energized). 2. Plug the power cable plug into a mains socket outlet. 3. Choose the electrode based on the type of material and thickness of the workpiece to be welded. 4. Insert the electrode in the electrode holder. 5. Connect the electrode holder cable to the welding socket based on the polarity requested by the type of electrode used. 6. Connect the plug of the ground clamp to the welding socket on the basis of the polarity required. 7. Connect the earth clamp to the workpiece being processed. DANGER! Electric shock hazard! Read the warnings highlighted by the following symbols in the “General prescriptions for use”. -
Page 8: Preparing For Tig Welding
Cod.006.0001.0206 Cruiser 150TP 09/05/2023 v1.0 ENGLISH WELD THE WORLD 2.5 PREPARING FOR TIG WELDING 1. Set the welding power source ON/OFF switch to “O” (unit de-energized). 2. Plug the power cable plug into a mains socket outlet. 3. Choose the electrode based on the type of material and thickness of the workpiece to be welded. 4. Insert the electrode in the TIG torch. 5. Connect the torch plug to the welding socket on the basis of the polarity required by the type of electrode in question. 6. Connect the plug of the ground clamp to the welding socket on the basis of the polarity required. 7. Connect the earth clamp to the workpiece being processed. 8. Set the welding power source ON/OFF switch to “I” (unit powered). 9. Select the following welding mode on the user interface: DC TIG This model of welding machine has not been provided either with the control for gas flow (sole- noid valve) or with the torch button. -
Page 9: Commissioning
Cruiser 150TP Cod.006.0001.0206 09/05/2023 v1.0 ENGLISH WELD THE WORLD COMMISSIONING 3.1 USER INTERFACE POT1 SEL1 CODE SYMBOL DESCRIPTION This LED illuminates to confirm the presence of power on the output sockets. Overheating alarm Indicates tripping of the welding power source thermal protection. Leave the unit running so that the overheated components cool as rapidly as possible. When the unit has cooled, the welding power source will reset automatically. • Make sure that the power required by the welding process is lower than the maximum rated power output. • Check that the operating conditions are in compliance with the welding power source data plate specifications. • Check for the presence of adequate air circulation around the welding power source. POT1 The potentiometer sets the value of the following parameter: WELDING CURRENT The selector sets the welding mode. SEL1 PULSED DC TIG TIG DC CONTINUOUS... -
Page 10: Welding Parameters
Cod.006.0001.0206 Cruiser 150TP 09/05/2023 v1.0 ENGLISH WELD THE WORLD 3.2 WELDING PARAMETERS PARAMETER MIN. DEFAULT MAX. NOTES WELDING CURRENT (MMA) 140 A WELDING CURRENT (TIG) 150 A PULSED CURRENT FREQUENCY 100 Hz TIG only, set by the manufacturer. HOT-START 50 % Set by the manufacturer. ARC FORCE 50 % Set by the manufacturer. -
Page 11: Technical Data
Cruiser 150TP Cod.006.0001.0206 09/05/2023 v1.0 ENGLISH WELD THE WORLD TECHNICAL DATA Waste electrical and electronic equipment (WEEE) Electromagnetic compatibility (EMC) Directives applied Low voltage (LVD) Restriction of the use of certain hazardous substances (RoHS) Construction standards EN 60974-1; EN 60974-10 Class A Equipment compliant with European directives in force Equipment suitable in an environment with increased hazard of electric shock Conformity markings Equipment compliant with directive WEEE Equipment compliant with directive RoHS Supply voltage 1 x 230 Va.c. ± 15 % / 50-60 Hz Mains protection 16 A Delayed This equipment complies with IEC 61000-3-12 provided that the maximum permissi- ble system impedance is less than or equal to 27 mΩ at the interface point between... - Page 12 Cod.006.0001.0206 Cruiser 150TP 09/05/2023 v1.0 ENGLISH WELD THE WORLD Efficiency (140A / 25,6V): 85,5% Power source efficiency No-Load condition power consumption (U1= 230 Va.c.): 13,3 W According to the information provided by our suppliers, this product does not contain essential raw materials in quantities greater than 1g Essential raw materials per component.
-
Page 13: Spare Parts
Cruiser 150TP Cod.006.0001.0206 09/05/2023 v1.0 ENGLISH WELD THE WORLD SPARE PARTS... - Page 14 Cod.006.0001.0206 Cruiser 150TP 09/05/2023 v1.0 ENGLISH WELD THE WORLD N° CODE DESCRIPTION 005.0001.0002 BELT 011.0000.0021 COVER PLATE 015.0001.0001 HEAT SINK L= 107mm 015.0001.0002 HEAT SINK L= 50 mm 050.0006.0001 POWER BOARD 012.0001.0000 INTERNAL FRAMEWORKS 050.0002.0018 LOGIC BOARD 013.0015.0202 FRONT LABEL 021.0001.1022 FIXED SOCKET 10 012.0001.0150 FRONT PLASTIC PANEL 11 014.0002.0000...
-
Page 15: Electrical Diagram
Cruiser 150TP Cod.006.0001.0206 09/05/2023 v1.0 ENGLISH WELD THE WORLD ELECTRICAL DIAGRAM 6.1 Cruiser 150TP FLAT 10V 10 9... - Page 16 Cod.006.0001.0206 09/05/2023 v1.0 www.weco.it...
