IHP 900005-02 Installation Instructions

INSTALLATION INSTRUCTIONS FOR FIREBOX LINER AND CONTEMPORARY FLOOR KITS
FOR USE WITH ENVY AND ENVY CD SERIES DIRECT-VENT GAS FIREPLACES
[MODELS ENVY35T(E/Y)N, ENVY40T(E/Y)N, ENVY45T(E/Y)N, ENVYCD35T(E/Y)N, ENVYCD40T(E/Y)N, AND ENVYCD45T(E/Y)N]
HOT GLASS WILL CAUSE BURNS.
DO NOT TOUCH GLASS UNTIL COOLED.
NEVER ALLOW CHILDREN TO TOUCH GLASS.
• Install only when fireplace is OFF and COLD.
• Fireplace surfaces get EXTREMELY HOT!
• The glass on the front of the fireplace reaches EXTREMELY HIGH
temperatures and can cause severe burns if touched. Even after
the gas is turned off, fireplace surfaces remain extremely hot.
• Keep children away from an operating fireplace. Closely
supervise children in any room where a fireplace is operating to
prevent contact with glass.
f i r e - p a r t s . c o m
CAUTION
RISK OF PERSONAL INJURY OR PROPERTY DAMAGE.
• Never operate fireplace without liner panels installed.
• These appliances are NOT approved for operation without
liner panels.
• Do NOT abuse glass doors by striking or slamming shut.
• Never operate fireplace with glass door assembly removed.
• Handle glass door assembly with extreme care. Replace
damaged glass door assembly with approved replacement
assembly only.
• Use only media approved for use with these fireplaces (as
applicable). Failure to use approved media may result in sooting,
delayed ignition, or other improper fireplace operation, and may
void the warranty.
NOTICE
• READ ALL STEPS BEFORE STARTING INSTALLATION.
• LEAVE THESE INSTRUCTIONS WITH THE APPLIANCE.
• All warnings, precautions, and instructions in the Installation
Instructions and Care and Operation Instructions provided with the
appliance also apply to these instructions.
• If you encounter any problems, need clarification of these
instructions, or are not qualified to properly install this kit, contact
your local distributor or dealer.
Required Tools
• 5/16 in. Hex Head Nut Driver (Porcelain Kit only)
• Safety Glasses
• Protective Work Gloves
P/N 900005-02
Rev. NC 05/2014
DANGER
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
NOTE: Turn OFF the appliance and allow it to cool completely
before proceeding.
GENERAL INFORMATION
This document contains installation instructions for firebox liner
and contemporary floor kits used with the ENVY and ENVY CD
series direct vent gas fireplaces.
Ceramic panels are fragile, as is the finish on the porcelain
panels. Use care to prevent breakage or marring the finish when
handling the panels.
DO NOT install the liner panels until the appliance installation is
complete, the gas line is connected and tested for leaks, and the
initial burner operation has been verified.
KIT CONTENTS
Porcelain
• Porcelain Panel, Left (1)
• Porcelain Panel, Right (1)
• Porcelain Panel, Rear (1)
• Porcelain Panel, Top (1)
• Porcelain Floor, Front (1)*
• Porcelain Floor, Rear (1)*
• Mounting Screws (5)

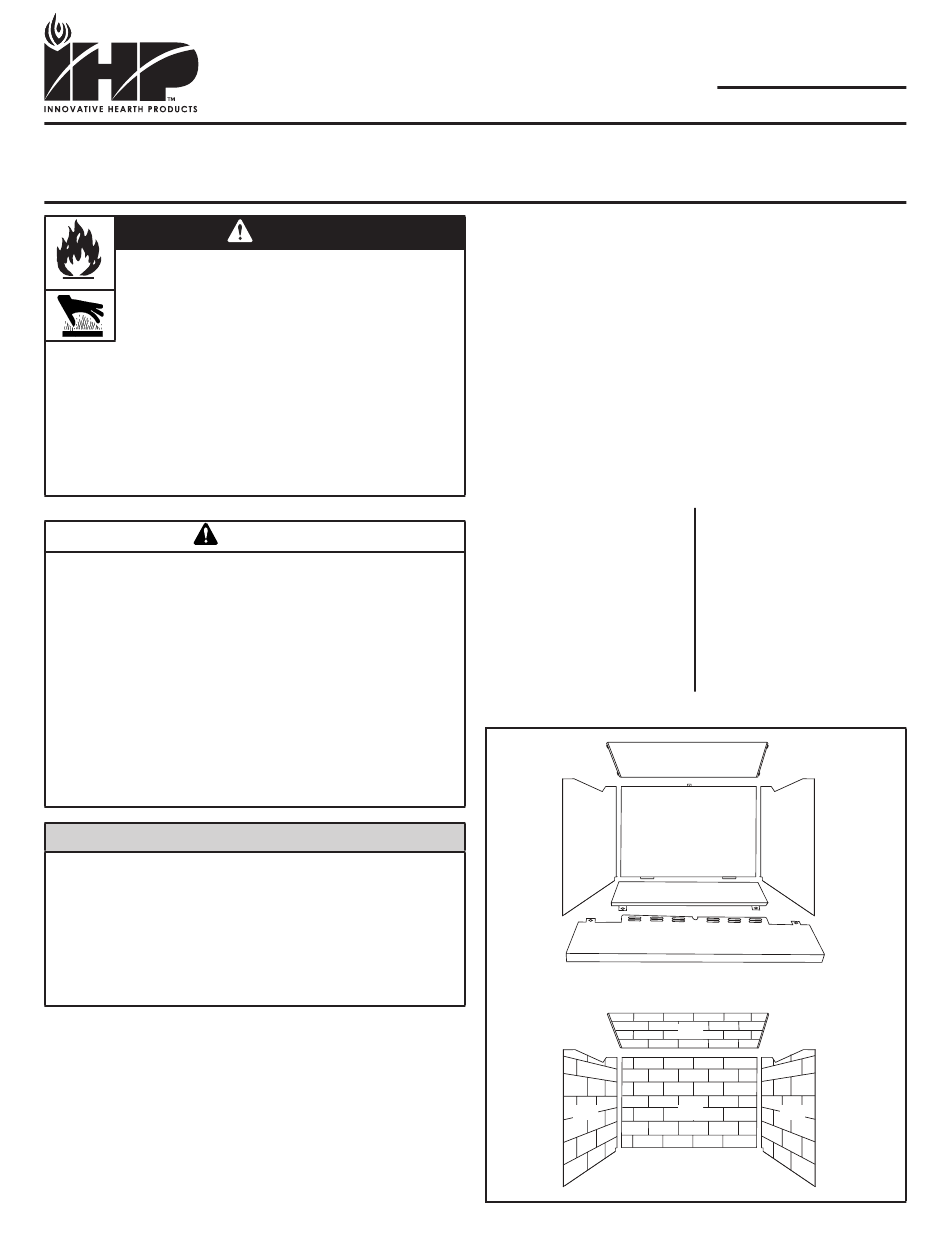

Figure 1: Firebox Liner Panels
Left
Front Floor
Porcelain Firebox Liner and Floor Panels
Left
Ceramic Firebox Liner Panels
HEARTH PRODUCTS
KITS AND ACCESSORIES
FIREBOX LINER PANEL KITS
Ceramic
• Ceramic Panel, Left (1)
• Ceramic Panel, Right (1)
• Ceramic Panel, Rear (1)
• Ceramic Panel, Top (1)
*CD models only
Top
Rear Right
Rear Floor
Top
Rear Right
