INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING: Do not store gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read
the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could
result in serious injury, death, or property damage.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
- Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
Report No. #20-024
WHEN USED AS AN OUTDOOR APPLIANCE
CARBON MONOXIDE WARNING
• This appliance can produce
carbon monoxide which has
no odor.
• Using it in an enclosed space
can kill you.
• Never use this appliance in
an enclosed space such as a
camper, tent, car or home.
Installation and Operation Instructions

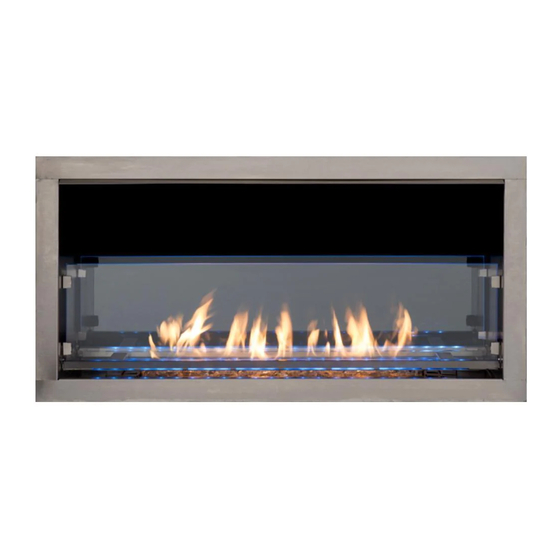

OUTDOOR DECORATIVE GAS FIREPLACE
Barcelona Lights | VRE4600 |ODLVF
Models
ODLVF36ZEN, ODLVF48ZEN, ODLVF60ZEN, ODLVF72ZEN
INSTALLATION PRECAUTION: This fireplace requires a minimum
18-square inches (per side) of cross ventilation. Failure to provide
proper ventilation can void the warranty.
Installateur : Laissez cette notice avec l'appareil.
Consommateur : Conservez cette notice pour consultation ultérieure.
WARNING: For Outdoor Use Only.
DANGER
IF YOU SMELL GAS:
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appli-
ance and immediately call your gas supplier
or fire department.
AVERTISSEMENT:
RISQUED'INDENDIE OU D'EXPLOSION
Le non-respect Des avertissements de sécurité pourrait d'entraîner
des blessures graves, la mort ou des dommages matériels.
- Ne pas entreposer ni utilizer d'essence ni d'autres vapeurs
ou liquides inflammables dans le voisinage de cet appareil
ou de tout autre appareil.
- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d'allumer d'appareil.
• Ne touchez à aucan interrupteur. Ne pas vous servir des
téléphones se trouvant dans le bâtiment où vous trouvez.
• Sortez immédiatement de bâtiment.
• Appelez immédiatement votre fournisseur de gaz depuis
un voisin. Suivez les instructions du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz, appelez
le service des incindies.
- L'installation et l'entretien doivent être assurés par un instal-
lateur ou un service d'entretien qualifié ou par le fournisseur
de gaz.
