EPA Certified
Wood-Burning
Fireplace Inserts
Save These Instructions
For Future Reference
P/N 900980-00, Rev. NC, 08/2019
C
US
Report # 14-185
INSTALLATION AND OPERATION MANUAL
P900980-00
A French manual is available upon request. Order P/N 900980-01.
Ce manuel d'installation est disponible en francais, simplement en faire la demande. Numéro de
la pièce 900980-01.
This appliance must be properly installed and operated in order to prevent the
• Hot! Do not touch! The glass and surfaces of this appliance will
be hot during operation and will retain heat for a while after
shutting off the appliance. Severe burns may result.
• Carefully supervise children in the same room as appliance.

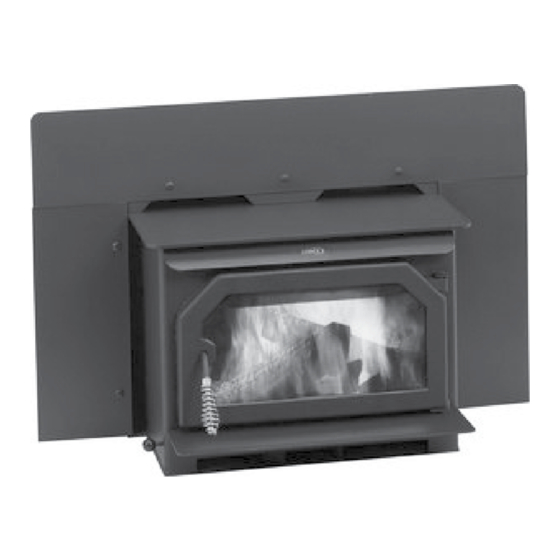

Performer™ Model C210GL
possibility of a house fire. Please read this entire installation and operation
manual before installing and using your wood fireplace insert. Failure
to follow these instructions could result in property damage, bodily
injury or even death. Contact your local building or fire officials
to obtain a permit and information on any installation re-
quirements and inspection requirements in your area.
WARNING
Performer™ C210TGL
Performer™ C210AGL
Wood Fireplace Inserts
Advertisement
Table of Contents
Related Manuals for IHP IronStrike Performer C210TGL
Summary of Contents for IHP IronStrike Performer C210TGL
- Page 1 INSTALLATION AND OPERATION MANUAL EPA Certified Wood-Burning Fireplace Inserts Save These Instructions For Future Reference Performer™ C210TGL P/N 900980-00, Rev. NC, 08/2019 P900980-00 Performer™ C210AGL Wood Fireplace Inserts Performer™ Model C210GL A French manual is available upon request. Order P/N 900980-01. Ce manuel d’installation est disponible en francais, simplement en faire la demande.
-
Page 2: Table Of Contents
Maximizing Your appliance’s Overall Efficiency ......16 Thank you for selecting an Innovative Hearth Products (IHP) wood- Achieving Clean, Long Burns ............16 burning fireplace insert as the answer to your home heating needs. -
Page 3: Important Safety Information
13. Inspect your chimney at least once a month during the burn- IMPORTANT SAFETY AND WARNING ing season to check for soot and creosote accumulations. INFORMATION Any accumulations over 1/8” thick should be removed by a professional chimney sweep. Do not attempt to burn out heavy creosote accumulations with a hot fire. -
Page 4: Testing Information
28. This wood heater has a manufacturer-set minimum low burn Excessive draft may cause an uncontrollable burn or a glowing red fire- place insert or chimney part. rate that must not be altered. It is against federal regulations to alter this setting or otherwise operate this wood heater Overfiring Damage - If the heater or chimney connector glows, you are overfiring. -
Page 5: Negative Pressure Warning
Be sure your home has adequate makeup air to eliminate negative pressures caused by the above-mentioned sources. IHP accepts no liability for damages resulting from negative pressures described above. Ventilation Requirements - Provide adequate air for combustion. The fresh air requirements of this appliance must be met within the space where it will be installed. -
Page 6: Fuel
When a tree is cut down, the wood is green, full of sap and moisture. (cat. no. H8159), available from all IHP dealers. This moisture content can exceed 80%, which must be reduced to less than 20%. -
Page 7: Brick Installation
CAUTION: Make sure the baffle blankets are down flat on the BRICK INSTALLATION baffle boards, pulled together in the center so that no gaps exists between them and do not protrude beyond baffle boards. It is CAUTION: Wear gloves during brick installation in case of sharp critical that baffle boards and baffle blankets are fully against edges behind the fireplace insert. -
Page 8: Required Clearances
REQUIRED CLEARANCES Maximum Mantel Depth = 9” (229mm) COMBUSTIBLE MANTEL WARNING: BE ABSOLUTELY SURE THE DISTANCE BETWEEN THE HEATER AND THE SURFACE OF ANY COMBUSTIBLE CONSTRUC- Top Facing / Trim TION IS NOT LESS THAN SHOWN ON THIS PAGE. Model E(1) USA-24”... -
Page 9: Hearth Protection
Using the r formula: HEARTH PROTECTION Minimum r-value (per Inch) Specified min. The hearth and/or floor protection must be a thermally rated non-com- thickness of of listed material thickness bustible hearth/floor protector meeting or exceeding a thermal rating of alternate r-value (per inch) of listed k=.84 or equivalent with a listed thickness of 3/8"... -
Page 10: Chimney Requirements
If a full-length liner is not used Listed Material and a consistent draft cannot be maintained during operation, it may be necessary to use a full-length liner. See your IHP dealer for details. k (per inch) r (per inch) Listed Min. -
Page 11: Positive Flue Connection
POSITIVE FLUE CONNECTION A full chimney liner is recommended A positive flue connection is providing a seal between the vent pipe or Fireplace liner and the existing fireplace chimney for the purpose of preventing Chimney room air passage to the chimney cavity of the fireplace. There are dif- ferent approved methods to achieve this. -
Page 12: Installation Procedure - Factory-Built Zero Clearance Fireplaces
This appliance can only be installed in the following brands of factory-built zero clearance fireplaces: IHP, SUPERIOR, HEATILATOR, MAJESTIC, INSERT PRE-INSTALLATION PREPARATION MARTIN, PREWAY, MARCO, TEMCO and FMI. Install the two 3” (76 mm) long bolts (with the head up) through the nuts The fireplace cavity must be 36”... -
Page 13: Chimney Liner Installation
CHIMNEY LINER INSTALLATION POST INSTALLATION CHECKS Remove the existing chimney cap and install a stainless steel liner into 1. Check that all chimney pipe joints are securely fastened. the chimney (if a special section has been used or drilled to attach to the insert, it must be the bottom piece). -
Page 14: Operating Hints
OPERATING HINTS STARTING AND MAINTAINING A FIRE 1. Burn only dry, well-seasoned wood for maximum heat output. In some Be sure to clean plated accessories with a household type cleaner and a very soft cloth to remove any fingerprints and states it is illegal to burn wet wood or anything other than clean, dry residues prior to the first fire. -
Page 15: Blower Operation (Optional Kit)
BLOWER OPERATION Blower Operation The blower can be operated manually or automatically (blower will turn on when the stove or insert is hot and turn off when the stove or insert is cool). The rocker switch on the control panel allows you to select between manual operation or automatic operation as follows (see Figure 10): MANUAL OPERATION: Turn rocker switch to the manual position (up) Manual / Auto... -
Page 16: Operating Techniques And Hints
What this can minutes to ignite the wood. All IHP stoves and inserts are EPA tested for mean to you is longer, cleaner burns, less wood use and more heat. -
Page 17: Maintenance
After reloading, allow all the wood to catch flame before dampering compressed. If compressed, replace with a special woven door rope. down the appliance. (Don’t try substituting rope, only use special IHP door rope). PLATED ACCESSORIES: Clean only with a household type glass cleaner CAUTION and a very soft cotton cloth Other products may damage plated finish, paint and gaskets. - Page 18 GLASS REPLACEMENT INSTRUCTIONS Door Gasket Step 1. Remove Door Assembly - Open door to remove E clip from the upper hinge pin. Remove upper hinge pin by pulling up while holding the op- posite side of the door. Lift door out of the lower hinge pin and place Screws and Washers face down on a soft surface.
-
Page 19: Troubleshooting
TROUBLESHOOTING Problem Solution POOR DRAFT: Extend chimney in length or have the chimney realigned to the proper size flue. Oversized chimneys normally have poor drafts. Remember, the appliances’ draft depends solely on the natural draft of the chimney (See Draft Requirements on Page 4). -
Page 20: Do's And Don'ts
• Paper products, colored paper, cardboard, plywood, or particleboard; gasket from adhering to the curing paint. • gasoline; • naphtha; Enjoy the warm feeling of your new IHP appliance. • engine oil; • flammable liquids; • solvents; • grease; or •... -
Page 21: Replacement Parts List
H8067 UHPII Wiring Harness H5655 UHPI & UHPII Blower Speed Control Contact an IHP dealer to obtain any of these parts. Never use substitute materials. Use of non-approved parts can result in H8068 Snap Switch Bracket w/ hardware poor performance and safety hazards. - Page 22 REPLACEMENT PARTS - MODEL C210TGL AND C210AGL NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
- Page 23 REPLACEMENT PARTS - MODEL C210TGL AND C210AGL Door Parts Blower Parts NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
-
Page 24: Accessories
ACCESSORIES - MODELS C210TGL AND C210AGL BLOWERS Cat. No. Model Description H7907 WSINS-BLWR-B-SS Blower Insert Black Product Reference Information H7909 WSINS-BLWR-N-SS Blower Insert Nickel Ship. Ship. Cat. No. Description H7910 WSINS-BLWR-BN-SS Blower Insert Brushed Nickel Weight Volume MISC. PARTS C210TGL, Insert / Traditional Black Door / F4163 427 lb. -
Page 25: Safety / Listing Label
SAFETY / LISTING LABEL - MODELS C210TGL AND C210AGL CONTACT YOUR LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA COMMUNIQUEZ AVEC LES AUTORITÉS LOCALES EN BÂTIMENT OU LE SERVICE DE PRÉVENTION DES INCENDIES POUR CONNAÎTRE LES NORMES D'INSTALLATION ET D'INSPECTION DE VOTRE RÉGION Listed Factory-built or Masonry Fireplace Accessory/Insert / Poêle encastrable certifié... - Page 26 NOTES ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
-
Page 27: Warranty
In order for any claim under this warranty to be valid, you must contact the IHP dealer/distributor from which you purchased the product. If you cannot locate the dealer/ distributor, then you must notify IHP in writing. IHP must be notified of the claimed defect in writing within 90 days of the date of failure. Notices should be directed to the IHP Warranty Department at 1769 East Lawrence Street;... -
Page 28: Product Reference Information
Date Installed ______________________________________________________ Your Dealer's Name _________________________________________________ Innovative Hearth Products (IHP) reserves the right to make changes at any time, without notice, in design, materials, specifications, and prices, and also to discontinue colors, styles, and products. Consult your local distributor for fireplace code information.
