IHP Sentry 45 Installation & Operation Instructions

IHP Sentry 45 Installation & Operation Instructions

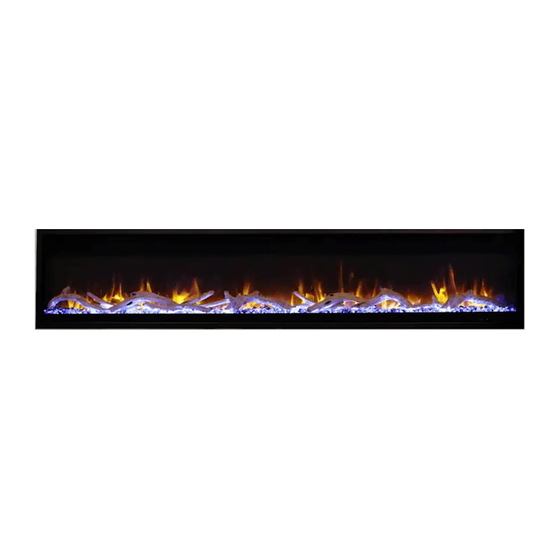

45", 55", 60", 72", 84" and 100" linear electric fireplaces

Advertisement

Quick Links

INSTALLER: Leave this manual with the appliance
CONSUMER: Retain this manual for future reference
INSTALLATEUR : Laissez cette notice avec l'appareil.
CONSOMMATEUR : Conservez cette notice pour con-
sultation ultérieure.
A French manual is available upon request. Order P/N 901042-02
Ce manuel d'installation est disponible en francais, simplement en
faire la demande. Numéro de la pièce 901042-02.
IMPORTANT! TO ASSURE PROPER ALIGNMENT, INSTALL THIS
FIREPLACE IN A SQUARE AND PLUMB CONDITION, USING SHIMS
AS NECESSARY AT SIDES.
IHP electric fireplaces are designed for use as a decorative appli-
ance and/or as a supplemental heater. They are not intended
for continuous use as a primary heat source.
®
C
US
Report # 2048831
P901042-00
Installation and Operation Instructions
45", 55", 60", 72", 84" AND 100"
LINEAR ELECTRIC FIREPLACES
45", 55", 60", 72", 84" AND 100" Linear Electric Fireplaces
P/N 901042-00 Rev. C 08/2021
MODELS
Sentry 45
Sentry 55
Plexus 60
Plexus 72
Plexus 84
Plexus 100
This manual will enable you to obtain a safe, efficient and depend-
able installation and operation of your electric fireplace. Please read
and understand these instructions before beginning your installation.
Do not alter or modify this fireplace or its components under any
circumstances. Any modification or alteration of the fireplace system,
including but not limited to the fireplace and accessories, may void
the warranty, listings and approvals of this system and could result
in an unsafe and potentially dangerous installation.
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE
VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER
APPLIANCE.
EXPOSED SURFACES OF THE ELECTRONIC FIREPLACE ADJACENT
TO HEATERS AND BLOWERS MAY BECOME HOT. CARE SHOULD
BE TAKEN TO AVOID CONTACT WITH BLOWER HEAT DISCHARGE
OUTLETS SUCH AS THE ONE ON THE TOP OF THIS FIREPLACE.
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, AN ELECTRICAL SHOCK OR FIRE MAY RESULT CAUS-
ING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
BEFORE STARTING YOUR FIREPLACE INSTALLATION, READ THIS
INSTALLATION AND OPERATION MANUAL VERY CAREFULLY TO
ENSURE YOU UNDERSTAND IT COMPLETELY AND IN ENTIRETY.
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN A
POSSIBLE ELECTRIC SHOCK, FIRE HAZARD AND/OR INJURY OR
PROPERTY DAMAGE AND WILL VOID THE WARRANTY.
EXTREME CAUTION IS NECESSARY WHEN ANY HEATER IS USED
BY OR NEAR CHILDREN OR INVALIDS AND WHENEVER THE
HEATER IS LEFT OPERATING AND UNATTENDED.
ELECTRIC FIREPLACES INSERTS AND FREE STANDING ELECTRIC
FIREPLACES HEATERS RATED AT 1500W/ 5000 BTU
MPE-45S
ERL2045
MPE-55S
ERL2055
ERL3060
MPE-60D
ERL3072
MPE-72D
MPE-84D
ERL3084
MPE-100D
ERL3100
