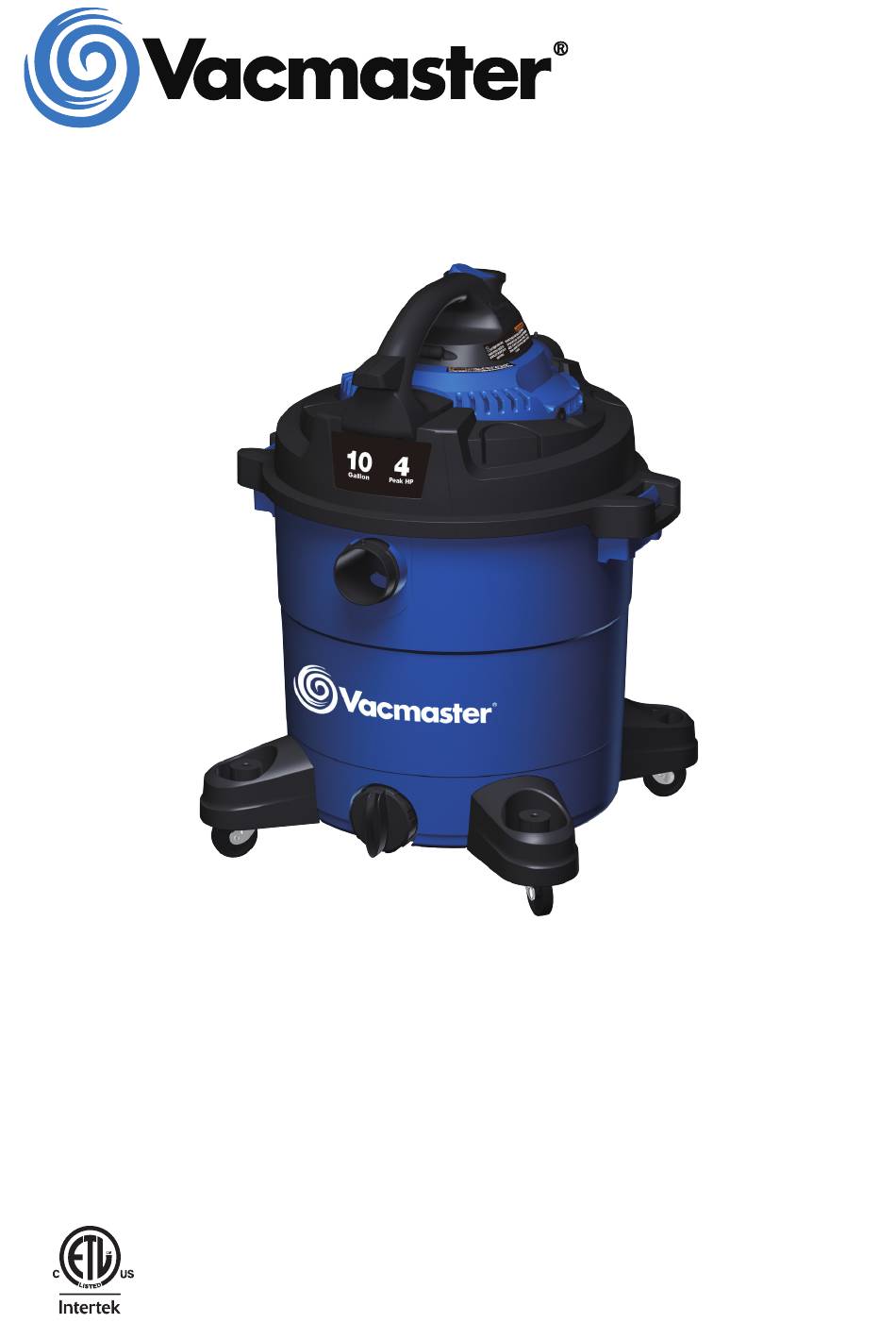

Wet/Dry Vacuum
Operator's Manual
10 Gallon
Model No.
VBVA1010PF
FOR YOUR SAFETY
Read and understand this manual before use.
Keep this manual for future reference.
Distributed By
Replacement Filters &
Cleva North America, Inc.
Accessories available at:
601 Regent Park Court
Vacmaster.com
Greenville, SC 29607
Advertisement
Table of Contents
Related Manuals for Vacmaster VBVA1010PF
Summary of Contents for Vacmaster VBVA1010PF
- Page 1 Wet/Dry Vacuum Operator’s Manual 10 Gallon Model No. VBVA1010PF FOR YOUR SAFETY Read and understand this manual before use. Keep this manual for future reference. Distributed By Replacement Filters & Cleva North America, Inc. Accessories available at: 601 Regent Park Court Vacmaster.com...
-
Page 2: Table Of Contents
FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS. WARRANTY ® We take pride in producing a high quality, durable product. This Vacmaster product carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM. Read and understand this operator’s manual and all labels on the Wet/Dry Vacuum cleaner before operating. Safety is a combination of common sense, staying alert and knowing how your vacuum works. - Page 4 When using as blower: • Direct air discharge only at work area. • Do not use Wet/Dry Vac as a sprayer. • Do not direct air at bystanders. • Keep children away when blowing. • Use safety goggles. SAVE THESE INSTRUCTIONS DOUBLE INSULATION INSTRUCTIONS This Wet/Dry Vacuum is double-insulated, eliminating the need for a separate grounding system.
-
Page 5: Extension Cords
EXTENSION CORDS When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord are in good working condition. Make repairs or replacements before using the vacuum cleaner. -
Page 6: Unpacking & Checking Carton Contents
UNPACKING & CHECKING CARTON CONTENTS Remove all contents from the box. Remove the power head and take out any contents inside the collection tank. Check each item against the carton contents list. Carton Contents List Description ......Q t y. Vac Assembly ......1 Extension Wands.....2 Hose ........1... -
Page 7: General Assembly Instructions
GENERAL ASSEMBLY INSTRUCTIONS A Philips head screw driver is required. WARNING : DO NOT PLUG POWER CORD INTO POWER OUTLET. MAKE SURE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VACUUM. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN. UNPACKING YOUR WET/DRY VACUUM &... -
Page 8: Dry Vacuum Operation
DRY VACUUM OPERATION DRY VACUUMING WARNING : BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION ENTITLED ‘IMPORTANT SAFETY INSTRUCTIONS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS. -
Page 9: Liquid Vacuum Operation
LIQUID VACUUM OPERATION LIQUID VACUUMING WARNING : BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION ENTITLED ‘IMPORTANT SAFETY INSTRUCTIONS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS. -
Page 10: Blower Operation
BLOWER OPERATION This Wet/Dry Vac has blowing capabilities. To use the blower feature follow the instructions listed. WARNING: ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (OR IN CANADA, CSAZ94.3) BEFORE USING BLOWER. CAUTION: KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS. WARNING: WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE INHALED. - Page 11 BLOWER OPERATION DETACHABLE BLOWING OPERATION This Wet/Dry Vac converts to a detachable blower that can be used for leaf blowing in yards, decks, and patios. To use the detachable blower feature follow the instructions listed. CAUTION: TO REDUCE THE RISK OF HEARING DAMAGE, WEAR EAR PROTECTION WHEN USING THE VAC/BLOWER FOR EXTENDED HOURS OR WHEN USING IT IN NOISY AREAS.
-
Page 12: Maintenance
MAINTENANCE EMPTYING THE COLLECTION TANK WARNING: ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE REMOVING THE POWER HEAD FROM COLLECTION TANK. 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Disconnect the hose from the vacuum (Fig. 2). 3. - Page 13 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Remove the four screws holding the intake shield and lift off the shield (Fig. 2). 3. Remove the foam pad from the blower and clean the foam pad with soapy water and allow to dry (Fig.
-
Page 14: Installing & Cleaning Cartridge Filter
INSTALLING & CLEANING CARTRIDGE FILTER INSTALLING & CLEANING THE SUPPLIED CARTRIDGE FILTER 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Remove the power head and place in upside down position. 3. Install the cartridge filter over the filter cage making sure the cage is completely covered (Fig. -
Page 15: Installing & Cleaning Foam Wet Filter
INSTALLING & CLEANING FOAM WET FILTER INSTALLING FOAM WET FILTER 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Remove power head and place in upside down position. Follow instructions to remove the cartridge filter on page 14. 3. -
Page 16: Exploded View
EXPLODED VIEW... -
Page 17: Parts List
PARTS LIST Part Part Number Description Quantity Power Head Assembly 551132102 Collection Tank Lid Assembly 551005103 Float 551290106 Filter Cage Collection Tank 551011106 Vacuum Port Assembly 551002110 Drain Cap Assembly 551006109 Caster Foot Assembly 551002121 Blower Adapter V2CT Crevice Tool 551002115 Blower Concentrator Nozzle V2CC...
