Summary of Contents for Vacmaster VBVB1518PF 01

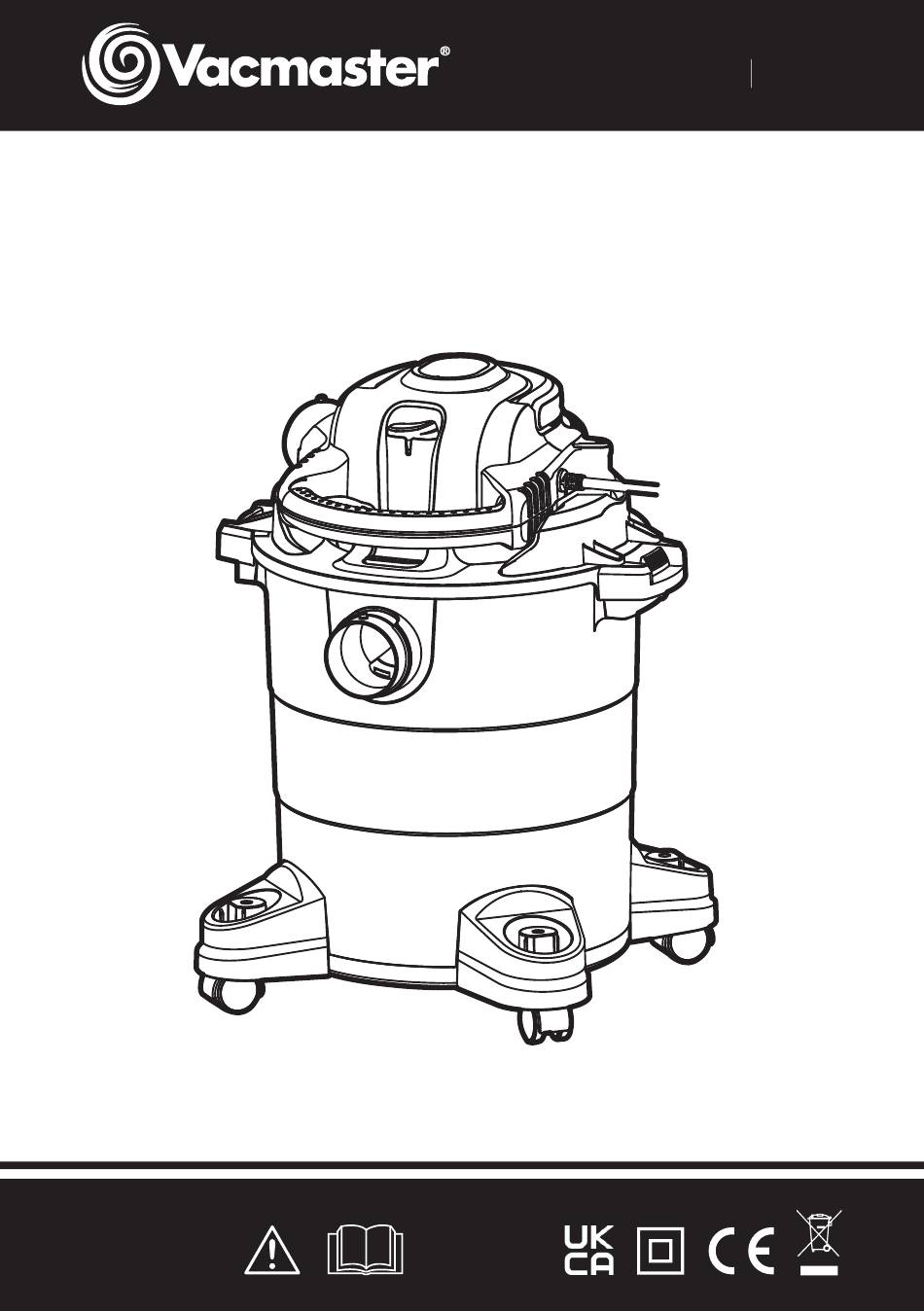

- Page 1 1500W VBVB1518PF 01 IPX4...
-
Page 4: Table Of Contents
Troubleshooting ........................... 13 Technical Data ..........................14 Recycling and Disposal ....................... 14 ® Thank you for purchasing this Vacmaster wet and dry vacuum cleaner. Feel confident that with ® Vacmaster you are obtaining a high-quality product that is engineered for optimal performance. -
Page 5: Symbols
SYMBOLS Caution. Read instruction manual. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Appliance in which protection against electric shock does not rely on basic insulation only but in which additional safety precautions are provided, such as double insulation or reinforced insulation, there being no provision for protective earthing or reliance upon installation conditions. -
Page 6: Safety Information
SAFETY INFORMATION READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER. When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating manual with due care. Keep this manual in a safe place so that the information is always available. - Page 7 • Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or corners. • Do not handle the plug or vacuum cleaner with wet hands. • To reduce the risk of health hazards from vapours or dusts, do not vacuum toxic materials.
- Page 8 examine it for signs of damage. When using as blower: • Read the instructions carefully. Be familiar with the controls and the correct use of the appliance. • Keep in mind, that the operator or user is responsible for accidents or hazards occurring to other people or their property. •...
- Page 9 appliance to stop. Disconnect the appliance from the supply and take the following steps before restarting and operating the appliance: - Inspect for damage; - Replace or repair any damaged parts; - Check for and tighten any loose parts. • Keep the plug clean of debris and other accumulations to prevent damage to the plug or possible fire.
-
Page 10: Unpacking And Checking Carton Contents
UNPACKING AND CHECKING CARTON CONTENTS 1 On/Off Switch 10 Power Head 19 Blower Tube Washable Cartridge Filter 2 Blower Handle 11 Folding Carry Handle (pre-installed) 3 Blower Release Button 12 Blowing Port 21 Filter Retainer (pre-installed) 4 Suction Port 13 Hose Storage / Cord Storage 22 Nylon Pre-filter (pre-installed) 5 Accessory Storage 14 Suction Hose... -
Page 11: Operation
OPERATION 1. Switching On/Off Connect the mains plug to a suitable power outlet. Position Status 2. Wet & Dry Vacuum Operation WARNING: ENSURE YOU READ, UNDERSTAND AND APPLY SECTION ENTITLED ‘SAFETY INFORMATION’. 1) Verify that the correct filter is installed for wet or dry vacuuming and the tank latches are secured. - Page 12 OPERATION For Wet Vacuuming: 1) To prepare your vacuum cleaner for wet vacuuming, remove the pre-filter. Verify that the washable cartridge filter is installed. NOTE: Please make sure the washable cartridge filter is dry before using it for wet vacuuming. IMPORTANT! The vacuum cleaner is equipped with a float valve ( ) which is operational during wet suction (Fig.
-
Page 13: Cleaning Artificial Lawns And Outdoor Areas
CLEANING ARTIFICIAL LAWNS AND OUTDOOR AREAS 1. Everyday Cleaning with Dry Suction 1) Clear large objects and debris from the lawn surface to ensure no large objects block or damage the vacuum cleaner (Fig. 15). 2) Attach the artificial grass floor nozzle to the end of the extension wands and hose (Fig. 16). NOTE: The artificial grass floor nozzle has been specially developed for cleaning long fibers of artificial lawns. -
Page 14: Maintenance
MAINTENANCE WARNING: REMOVE THE POWER CORD FROM THE POWER SUPPLY BEFORE CARRYING OUT ANY MAINTENANCE. 1) Keep all safety devices, air vents and the motor housing free of dirt and dust. Use a soft, dry brush to clean the equipment regularly. 2) Clear all dirt or debris from the container after each use. -
Page 15: Troubleshooting
TROUBLESHOOTING. Cleaning Performance Vacmaster vacuum cleaners are tested for endurance. If your motor is operating, then the most likely cause for a loss in suction is a blockage or an opening in the vacuum. To maintain a high cleaning performance from your appliance, it is important to replace or clean cartridge filters as necessary. -
Page 16: Technical Data
TECHNICAL DATA Model Number VBVB1518PF 01 Motor 220-240V~50Hz Power Input 1500W Tank Volume Sound Pressure Level (L 76.1dB(A) K=3dB Sound Power Level (L ) Guaranteed 96dB(A) Vibration <2.5m/s K=1.5m/s Net Weight 5.5kg RECYCLING AND DISPOSAL This marking indicates that this product should not be disposed with other household wastes. - Page 17 ① ②...
- Page 20 VBVB1518PF 01 Suzhou Cleva Electric Appliance Co., Ltd. No.8 Ting Rong Street Suzhou Industrial Park, Suzhou Jiangsu Province, China www.cleva-europe.com Made in P.R.C www.cleva-europe.com MADE IN P.R.C...
