SOMFY EOLIS Inteo Wind Control Installation And Operating Instructions page 2

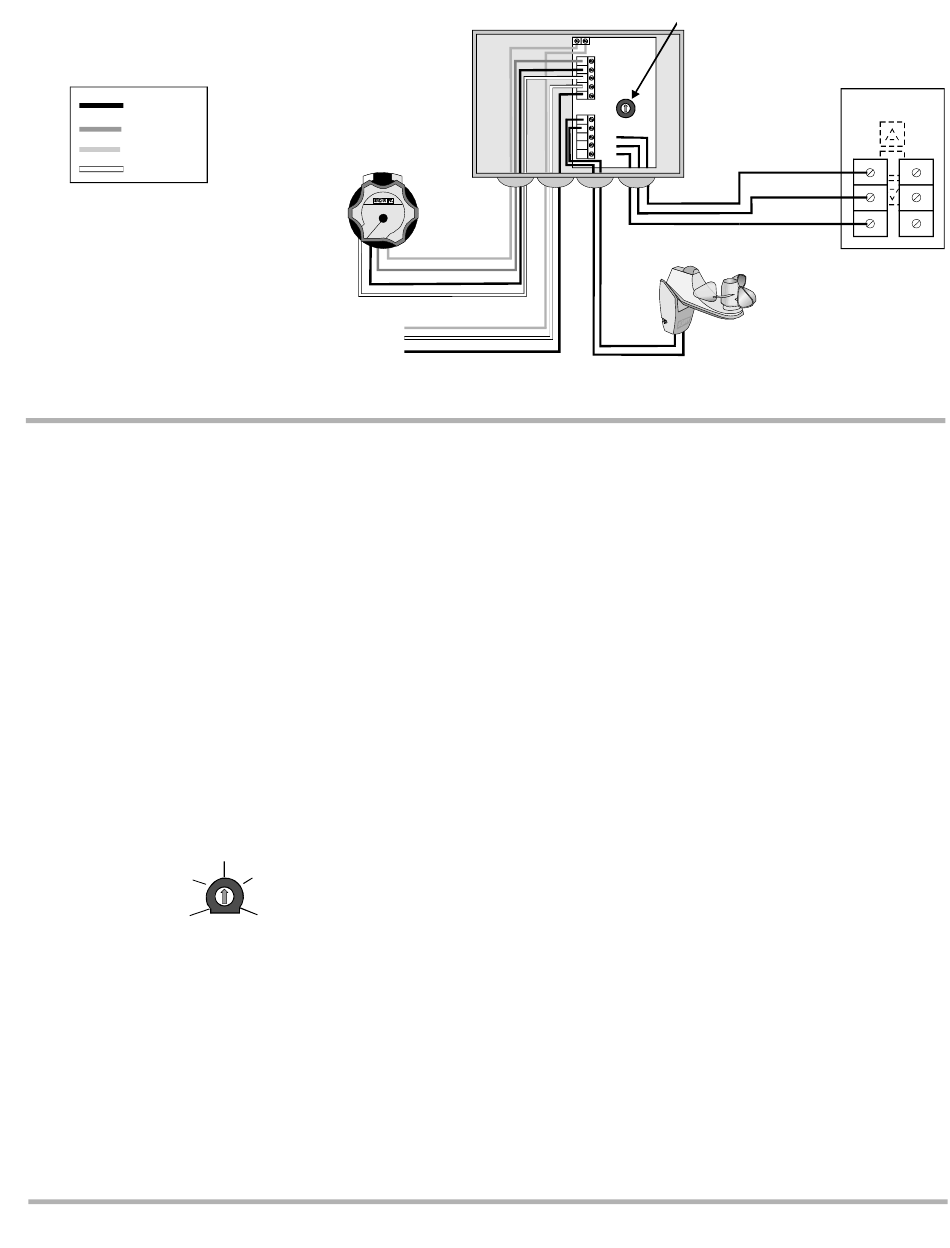

WIRING DIAGRAM
COLOR CODE
BLACK
RED
GREEN
WHITE
NOTE:
Mount control with
fittings facing downward!
OPERATING INSTRUCTIONS
System Set Up
1. With power off, wire the control as indicated above. Turn all
circuit breakers on (motors should not move).
2. Operate each motor in the DOWN direction by pressing the down
arrow on the low voltage switch.
3. T he motorized treatment should move down or out. If this is
incorrect, turn off the circuit breakers and reverse the red and
black wires of the motor.
Setting The Wind Level
1. To change the wind sensitivity, simply rotate the wind adjustment
knob to the desired setting.
12
Wind Adjustment Detail
MOTOR
GROUND
NEUTRAL
HOT
22
31 MPH
Wind Adjustment
UP
DOWN
MTRCOM
NEUT
HOT
WIND
WIND
DIR1
DIR2
COM
Operating Procedures
LOW VOLTAGE SWITCH
1. Pressing the DOWN button will move the window treatment down
or out.
2. Pressing the UP button will move the treatment up or in.
3. To stop the motorized awning or shutter at any time, simply press
the STOP button on the low voltage switch.
WIND FUNCTION
5. When the monitored wind speed is greater than the setting, the
UP
direction will activate after 2 seconds. As long as the wind
speed
remains high, all other commands will be ignored.
6. When the wind speed drops below the set value, the Eolis
will return to normal operation following a very brief delay.
Low Voltage
Switch
UP
DOWN
COM
WIND
SENSOR
UP
DOWN
COM
