Wiring Diagram - Whirlpool INAC700W Installation & User Manual

Hide thumbs

Advertisement

W
Model INAC700W
Voltage
220V-240VAC 50Hz
Power consumption
Total:
Lamp:
Fan:
Serial No.
Date of mfr.
Model INAC900W
Voltage
220V-240VAC 50Hz
Power consumption
Total:
Lamp:
Fan:
Serial No.
Date of mfr.
D
IRING
IAGRAM

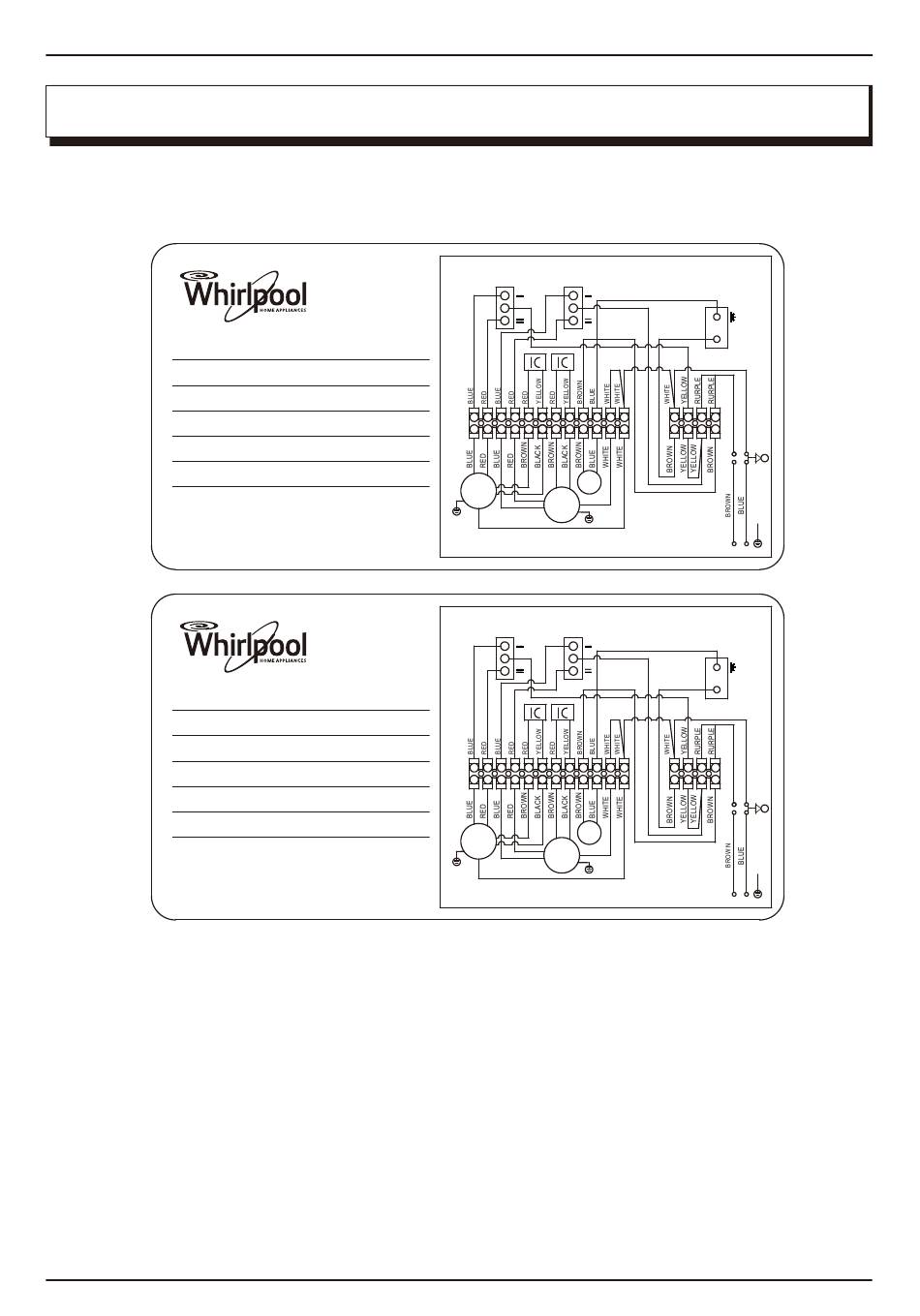

DUAL MOTOR RANGE HOOD CIRCUIT DIAGRAM
1A
1
1B
250W
14W Max.
236W
L
MOTOR
REMARKS:1. CAPACITOR 3.5μF X 2 450V AC FIT AC220V~240V 50Hz
DUAL MOTOR RANGE HOOD CIRCUIT DIAGRAM
1A
1
1B
250W
14W Max.
236W
L
MOTOR
REMARKS:1. CAPACITOR 3.5μF X 2 450V AC FIT AC220V~240V 50Hz
12
1A
1
1B
LAMP
R
MOTOR
1A
1
1B
LAMP
R
MOTOR
2
4
P
3
1
SW
BODY
2
4
P
3
1
SW
BODY
