Keysight 16089A/B/C Kelvin Clip Leads
Operation and
Service Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 16089A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Keysight Technologies 16089A

Summary of Contents for Keysight Technologies 16089A

  • Page 1 Keysight 16089A/B/C Kelvin Clip Leads Operation and Service Manual...
  • Page 2 FAR and the DFARS agreement and written consent from used or copied only in accordance and are set forth specifically in Keysight Technologies, Inc. as with the terms of such license. writing elsewhere in the EULA. governed by United States and...

  • Page 3: Table Of Contents

    Supplemental Performance Characteristics ........9 Supplemental Performance Characteristics of 16089A ......9 Supplemental Performance Characteristics of 16089B .
  • Page 4 Contents Keysight 16089A/B/C Operation and Service Manual...

  • Page 5: General Information

    General Information Introduction The purpose of this manual is to enable you to use your Keysight 16089A/B/C Kelvin Clip Leads efficiently and confidently. This manual contains both general and specific information. To use the 16089A/B/C to perform a specific function (without having to read the entire manual), follow the directions in “Using the...

  • Page 6: Product Description

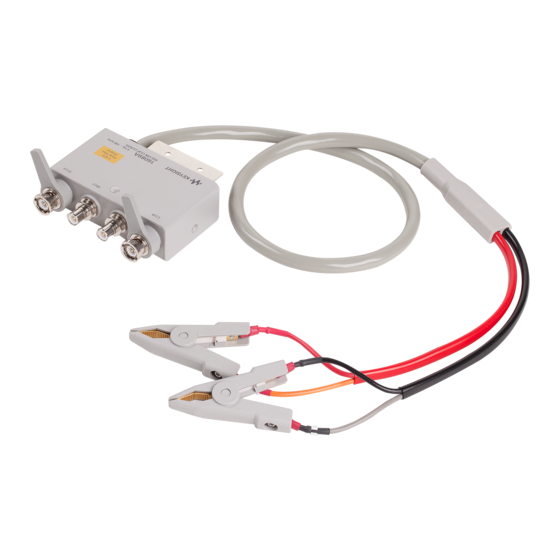

    16089C consist of a direct attachment, four-terminal-pair type test leads that are equipped with two insulated Kelvin clips. Three sizes of Kelvin clips are provided. The 16089A Kelvin Clip Leads is equipped with two large Kelvin clips, the 16089B Kelvin Clip Leads is equipped with middle size clips and the 16089C Kelvin Clip Leads is equipped with small size clips.

  • Page 7: Operating And Safety Precautions

    Operating You need to observe only normal precautions in handling and operating the 16089A/B/C. Do not exceed the operating input power, voltage and current level and signal type appropriate for the instrument being used, refer to your instrument’s operation manual.

  • Page 8: Specifications

    General Information Specifications Specifications This section lists the complete 16089A/B/C specifications. These specifications are the performance standards and limits against which the 16089A/B/C is tested. When shipped from the factory, the 16089A/B/C meets the following specifications: Maximum dc Bias Voltage ±...

  • Page 9: Supplemental Performance Characteristics

    This section gives supplemental performance characteristics. Supplemental performance characteristics are not specifications, but are typical characteristics included as additional information for the operator. Supplemental performance characteristics are not guaranteed. Supplemental Performance Characteristics of 16089A Applicable DUT size Diameter of DUT’s terminals ≤ 15mm...
  • Page 10 General Information Supplemental Performance Characteristics Keysight 16089A/B/C Kelvin Clip Leads...

  • Page 11: Preparation For Use

    Operation and Service Manual Preparation for Use Introduction This chapter explains how to install the Keysight 16089A/B/C Kelvin Clip Leads. The topics covered include initial inspection, ambient environmental considerations, connecting the test leads for use, and repackaging the test leads for shipment.

  • Page 12: 16089A

    Kelvin Clip Leads 16089-60601 16089-60001 Operation and Service Manual Option ABA (this manual) 1. Keysight internal-only part number. Figure 2-1 2. Operation and Service Manual is not shown in and furnished only Option ABA is ordered. Keysight 16089A/B/C Kelvin Clip Leads...

  • Page 13: 16089B

    Kelvin Clip Leads 16089-60602 16089-60002 Operation and Service Manual Option ABA (this manual) 1. Keysight internal-only part number. Figure 2-2 2. Operation and Service Manual is not shown in and furnished only Option ABA is ordered. Keysight 16089A/B/C Kelvin Clip Leads...

  • Page 14: 16089C

    Kelvin IC Clip Leads 16089-60603 16089-60003 Operation and Service Manual Option ABA (this manual) 1. Keysight internal-only part number. Figure 2-3 2. Operation and Service Manual is not shown in and furnished only Option ABA is ordered. Keysight 16089A/B/C Kelvin Clip Leads...

  • Page 15: Ambient Environmental Considerations

    The 16089A/B/C must be operated within an ambient temperature range of 0°C to 55°C and relative humidity up to 95% at 40°C (non-condensing). The 16089A/B/C may be stored within a temperature range of -40°C to +70°C, and at a relative humidity of up to 95% at +40°C (non-condensing).
  • Page 16 Preparation for Use Packaging the Test Leads Keysight 16089A/B/C Kelvin Clip Leads...

  • Page 17: Preparation For Use

    Keysight 16089A/B/C Kelvin Clip Leads Operation and Service Manual Preparation for Use Introduction This Chapter describes using the test leads and compensation techniques for these test leads. Test Leads Features 16089A/B/C Figure 3-1 16089A/B/C Test Leads Features 1. Kelvin Clips. These are connected to the DUT.

  • Page 18: Open And Short Compensation

    Figure 3-3 Making a short Condition for the 16089A If the furnished short bar of 16089A is corroded, worn or damaged, reverse the position or replace it with a new short bar. To reverse the short bar, remove the 2 screws that fixes the short bar and reverse the position.

  • Page 19: Operation

    16089A/B/C are: 1. Set the Cable Length setting according to the LCR meter/Impedance Analyzer operation manuals. 2. Connect the test leads of 16089A/B/C to the measurement instrument’s UNKNOWN terminals. 3. Perform OPEN and SHORT compensation as described in the measurement instrument’s operation manual.
  • Page 20 Preparation for Use OPEN and SHORT Compensation Keysight 16089A/B/C Kelvin Clip Leads...

  • Page 21: Service

    Keysight 16089A/B/C Kelvin Clip Leads Operation and Service Manual Service Introduction This chapter gives replaceable parts information for the 16089A, 16089B and 16089C. Serial Number for Non-RoHS Kelvin Clip Leads: 16089A: “MY44100001 - MY44199999” 16089B: “MY40100001 – MY40199999” 16089C: “MY44100001 – MY44199999” or “SG44100001- SG44199999”...

  • Page 22: Replaceable Parts

    4-3. If a faulty part is located in an assembly that cannot be disassembled, order the next higher assembly or return the fixture to the nearest Keysight Technologies Sales/Service Office for repair or replacement. Shown are the supported parts and their respective RoHS compliant replacement support part.

  • Page 23: 16089B Replaceable Parts

    On one Kelvin clip, the orange cable is screwed on the “V” marked side, and the red cable is screwed on the non-marked side. On the other Kelvin clip, the gray cable is screwed on the “V” marked side, and the black cable is screwed on the non-marked side. Keysight 16089A/B/C Kelvin Clip Leads...

  • Page 24: 16089C Replaceable Parts

    2. The whole unit. Keysight internal-only part. 3. Poka-Yoke Design Change. RoHS cover top (16089-04603) is not backward com- patible with non-RoHS fixture. REplace the whole fixture. Connection from the cables to the Kelvin clip is shown in Figure 4-1. Keysight 16089A/B/C Kelvin Clip Leads...
  • Page 25 Service Replaceable Parts Figure 4-1 Kelvin Clip Connections Keysight 16089A/B/C Kelvin Clip Leads...
  • Page 26 Service Replaceable Parts Keysight 16089A/B/C Kelvin Clip Leads...
  • Page 27 This information is subject to change without notice. © Keysight Technologies 1999-2020 Edition 7, January 2020 *16089-90030* 16089-90030 www.keysight.com...

This manual is also suitable for:

16089b16089c
