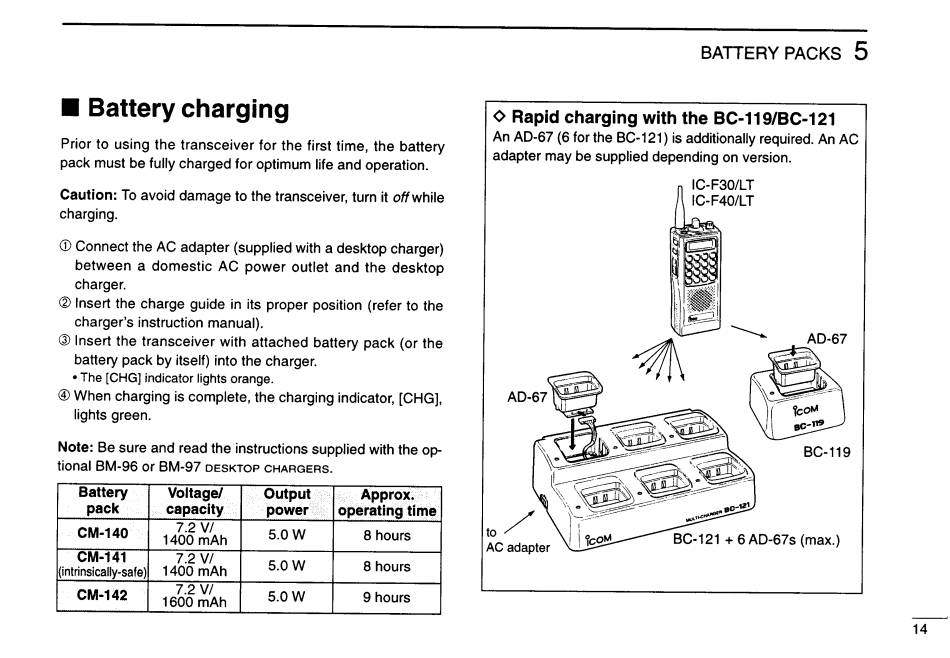

• Battery charging
Prior to using the transceiver for the first time, the battery
pack must be fully charged for optimum life and operation.
Caution: To avoid damage to the transceiver, turn it offwhile
charging.
CD
Connect the AC adapter (supplied with a desktop charger)
between a domestic AC power outlet and the desktop
charger.
® Insert the charge guide in its proper position (refer to the
charger's instruction manual).
@
Insert the transceiver with attached battery pack (or the
battery pack by itself) into the charger.
• The [CHG] indicator lights orange.
@)
When charging is complete, the charging indicator, [CHG],
lights green.
Note: Be sure and read the instructions supplied with the op-
tional BM..96 or BM. . . 97
DESKTOP CHARGERS.
Battery Voltagel Olltput " , Apprqx'·:", .
pack capacity. power
operatingtimtt'
CM-140
7.2 VI
5.0W 8 hours
1400 mAh
CM·141 7.2 VI
5.0W 8 hours
(intrinsically-safe)
1400 mAh
CM-142
7.2 VI
5.0W 9 hours
1600 mAh
BATTERY PACKS
5
¢
Rapid charging with the BC-119/BC-121
An AD-67 (6 for the BC-121) is additionally required. An AC
adapter may be supplied depending on version.
14
