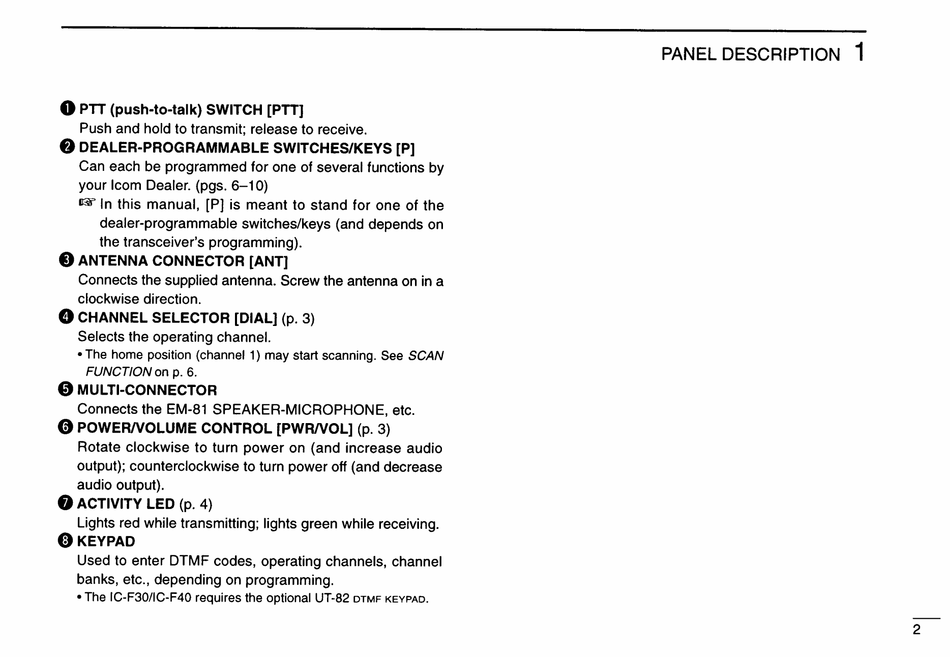

Icom IC-F30 Instruction Manual page 5

o
PIT (push-ta-talk) SWITCH [PTT]
Push and hold to transmit; release to receive.
• DEALER-PROGRAMMABLE SWITCHES/KEYS [P]
Can each be programmed for one of several functions by
your Icom Dealer. (pgs.
6-10)
~
In this manual, [P] is meant to stand for one of the
dealer-programmable switches/keys (and depends on
the transceiver's programming).
o
ANTENNA CONNECTOR [ANT]
Connects the supplied antenna. Screw the antenna on in a
clockwise direction.
• CHANNEL SELECTOR [DIAL] (p. 3)
Selects the operating channel.
• The home position (channel 1) may start scanning. See SCAN
FUNCTION on p. 6.
o
MULTI-CONNECTOR
Connects the EM-81 SPEAKER-MICROPHONE, etc.
o
POWERNOLUME CONTROL [PWRNOL] (p. 3)
Rotate clockwise to turn power on (and increase audio
output); counterclockwise to turn power off (and decrease
audio output).
• ACTIVITY LED (p. 4)
Lights red while transmitting; lights green while receiving.
_KEYPAD
Used to enter DTMF codes, operating channels, channel
banks, etc., depending on programming.
• The IC-F30/IC-F40 requires the optional UT-82
DTMF KEYPAD.
PANEL DESCRIPTION
1
2
