40 C 4: C
HAPTER ABLING
If you have not already done so, remove the SC
3
connector cover from the transceiver, as shown in
Figure 17.

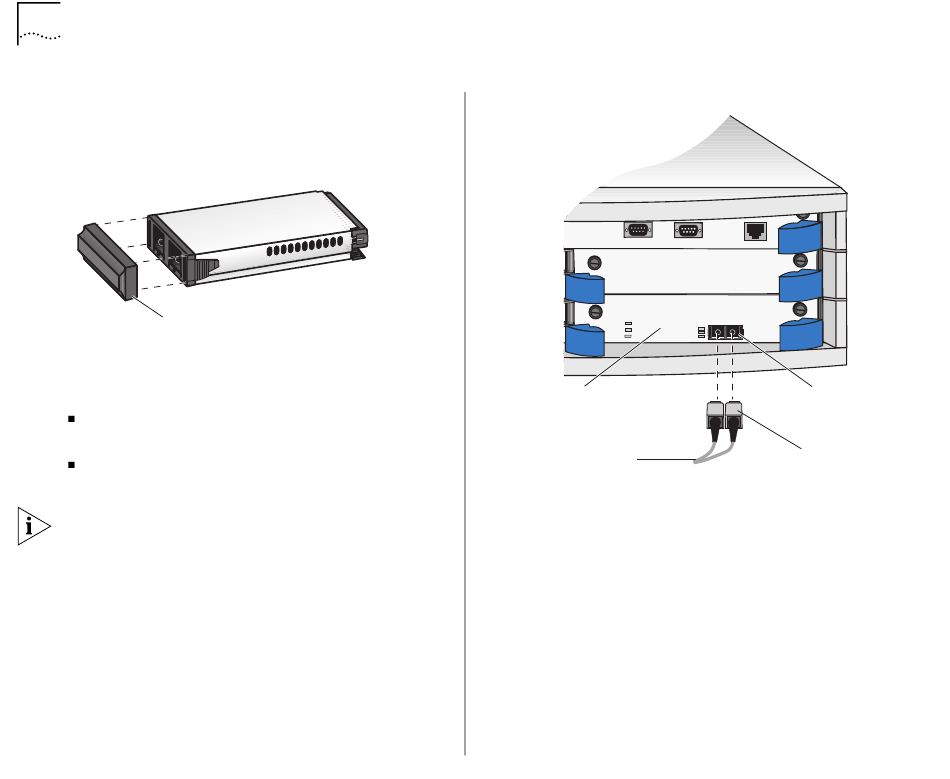

Figure 17 Removing the SC Connector Cover
SC connector cover
Attach the male duplex SC connector on the network
4
cable into the duplex SC port on the GBIC transceiver,
as shown in Figure 18.
If you are using an SX transceiver, the network
cable must support multimode transmission.
If you are using an LX transceiver, the network
cable must support single-mode transmission.
You can also connect an LX transceiver to multimode
fiber. See "Connecting the LX Transceiver to MMF" on
page 41 for details.
Figure 18 Cabling the GBIC Module
MODEM
TERMINAL
INS
C
1000 BASE (GBIC)
3C35330
PWR
L
INS
E
ERR
T
1000BASE
GBIC module
Network cable
Attach the other end of the network fiber-optic cable
5
to the network device that you want to connect.
6 Repeat steps 1 through 5 for additional GBIC
modules.
ETHERNET
10BT
GBIC
transceiver
Duplex
SC connector
