Fast Ethernet Modules

Each system can accommodate up to four Fast
Ethernet modules. The modules are hot-swappable.
The Fast Ethernet modules are available in these
configurations:
6-port RJ-45 10/100BASE-TX
The 10/100BASE-TX module autonegotiates
between 10 and 100 Mbps and autosenses
full-duplex and half-duplex mode.
6-port SC 100BASE-FX MMF and SMF
The 100BASE-FX, which is 100 Mbps only, is
available for multimode and single mode fiber.
Figure 4 illustrates the Fast Ethernet modules.

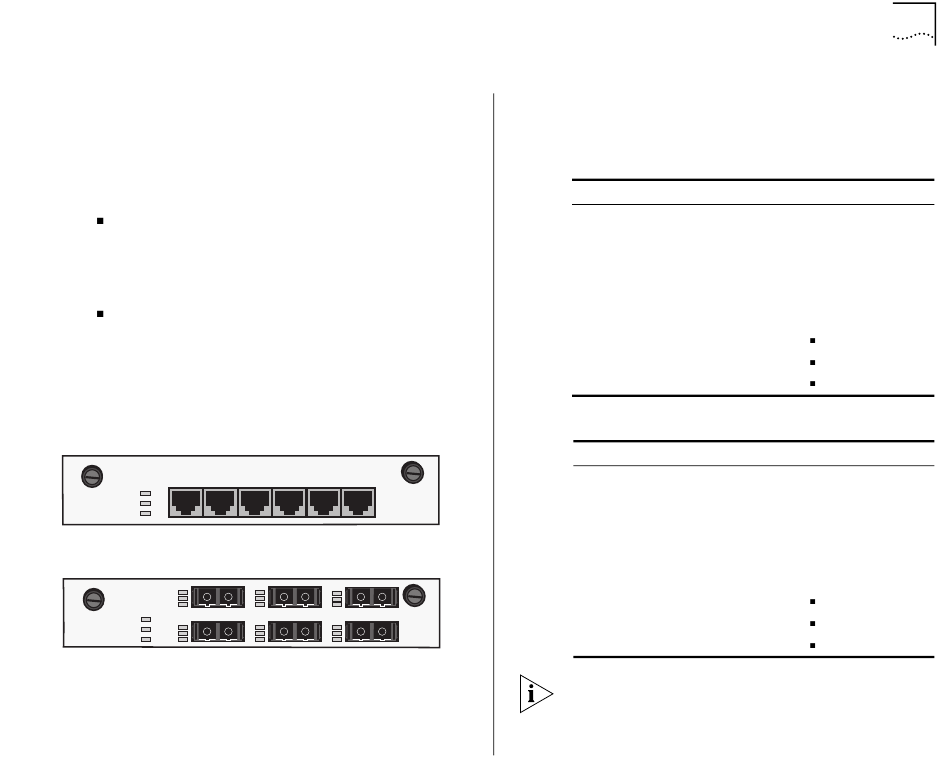

Figure 4 Fast Ethernet Modules
100 BASE - TX
3C35210 1X 2X
L E T L E T
PWR
INS
ERR
100BASE-TX
100 BASE - FX
1X
L
3C35220
E
T
PWR
4X
L
INS
E
ERR
T
100BASE-FX
3X 4X 5X 6X
L E T L E T L E T L E T
2X 3X
L L
E
E
T
T
5X 6X
L L L
E E E
T T T
CoreBuilder 3500 Modules
Module specifications for the Fast Ethernet modules
are provided in Table 3 and Table 4.
Table 3 Fast Ethernet 100BASE-FX Module MMF
Specifications
Parameter
Minimum TX output power
Maximum TX output power
Minimum RX input sensitivity
Maximum RX input sensitivity
Power Budget
Wavelength
Table 4 Fast Ethernet 100BASE-FX Module SMF Specifications
Parameter
Minimum TX output power
Maximum TX output power
Minimum RX input sensitivity
Maximum RX input sensitivity
Power Budget
Wavelength
For module installation instructions, see Chapter 3 or
the guide that is shipped with the module.
