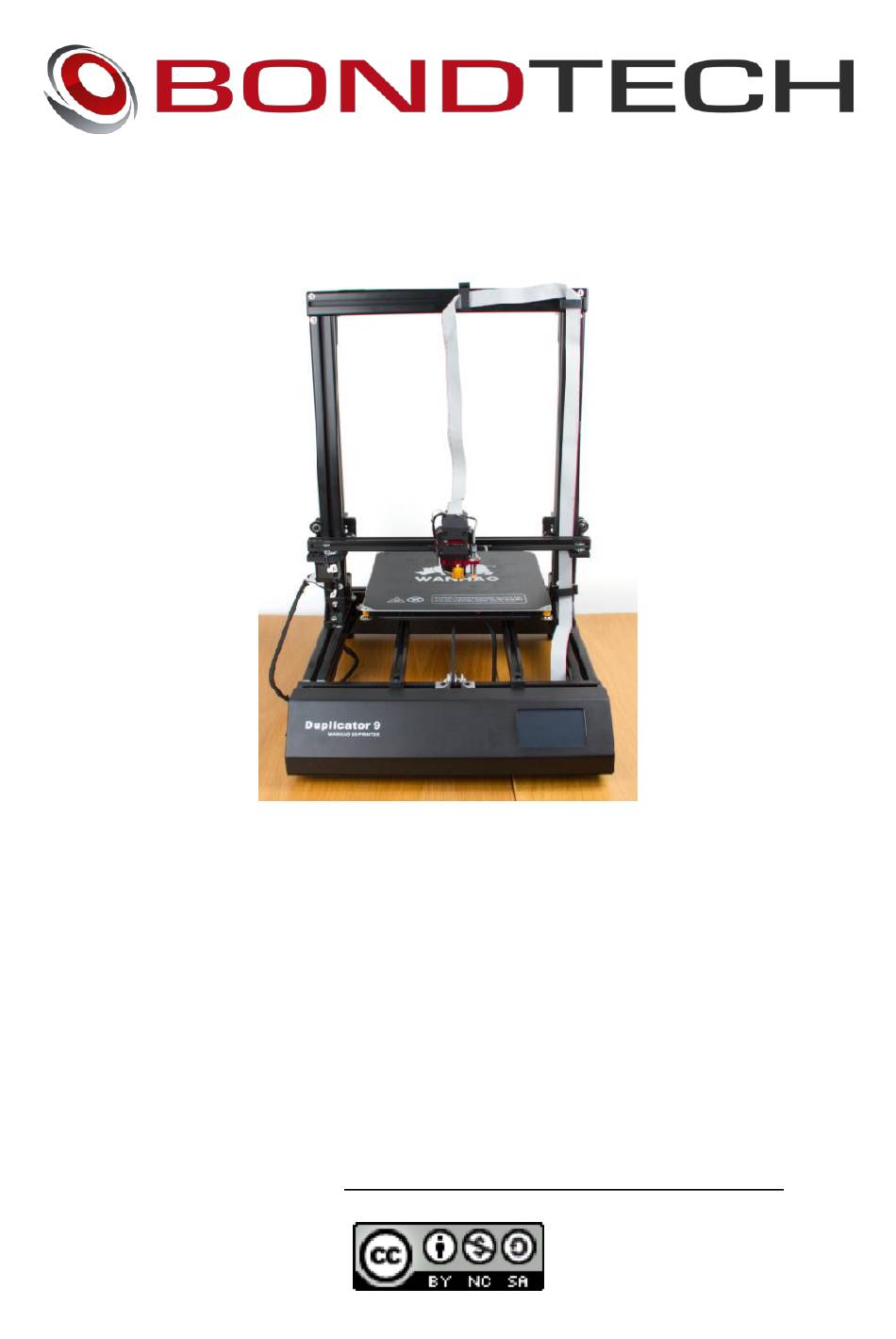

- Page 1 Wanhao D9 Assembly and installation manual This work is licensed under a Creative Commons Attribution 4.0 International License.
-
Page 2: Table Of Contents
Fel! Bokmärket är inte definierat. Raise3D SingleDirect Fel! Bokmärket är inte definierat. Mechanical Installation What you need Raise3D DualDirect and Raise3D SingleDirect Fel! Bokmärket är inte definierat. Raise3D N2 DualDirect Fel! Bokmärket är inte definierat. Raise3D N2 SingleDirect Fel! Bokmärket är inte definierat. -
Page 3: Introduction
Introduction The Bondtech extruder for Wanhao D9 is developed by Bondtech, is the simplest way to increase the performance of your Wanhao D9 printer in a matter of minutes. This new revolution in design utilizes the proven Bondtech Dual Drive Technology with precision CNC-manufactured parts. -
Page 4: Mechanical Installation
• Start by unloading and remove the filament from your printer. After the filament is removed, power off the printer. ● Start with disconnecting the flatcable to the printhead and put it out of the way Installation manual Bondtech Wanhao D9 V1.0... - Page 5 • Use a 2,5 mm hex wrench and loosen the two screws on the left side that hold the extruder assembly to the carriage. • Support the extruder when removing the screws so it will not fall to the printbed. Installation manual Bondtech Wanhao D9 V1.0...
- Page 6 • Extruder assembly removed. • Place the extruder assembly on a flat surface and remove the cover over the breakout board. • Locate the two M3 screws that holds the board to the carrier. Installation manual Bondtech Wanhao D9 V1.0...
- Page 7 • Loosen the connector to the stepper motor carefully. • Place the extruder assembly so you can reach the two M3 screws that holds the extruder to the bottom plate. Loosen the left screw using a 2,5mm hex wrench. Installation manual Bondtech Wanhao D9 V1.0...
- Page 8 • Loosen the right screw using a 2,5mm hex wrench. • Slide the extruder off the bottom plate and put it aside. • Now it is time to assemble the Bondtech upgrade. Installation manual Bondtech Wanhao D9 V1.0...
- Page 9 • And then press the board downwards until it clicks into place. Take it carefully and make sure it is in the correct position before it is pressed down. Installation manual Bondtech Wanhao D9 V1.0...
- Page 10 • And the cut-out for the inductive sensor on the rear side. Installation manual Bondtech Wanhao D9 V1.0...
- Page 11 • Connect the flatcable to the breakout board. Installation manual Bondtech Wanhao D9 V1.0...
-
Page 12: Software Configuration
This video gives a good reference of how to do it, please not use the firmware mentioned above and not the one on the video as it don’t work. Installation manual Bondtech Wanhao D9 V1.0... -
Page 13: Changing The E-Step Value
1mm filament. The Wanhao D9 E-step value needs to be updated to achieve the correct extrusion volume. The reason for this is that the Bondtech extruder has a different drive gear diameter and a gearing ratio. The increased E step value means that the extruder will feed the material with higher precision and with a lot higher force. - Page 14 Repslagarvägen 3 33153 Värnamo Sweden e-mail: support@bondtech.se phone: +46702220193 paypal: payments@bondtech.se web: www.bondtech.se VAT-registration number: SE556995564301 Installation manual Bondtech Wanhao D9 V1.0...
