Hobo MicroRX RX2100 Installing Manual

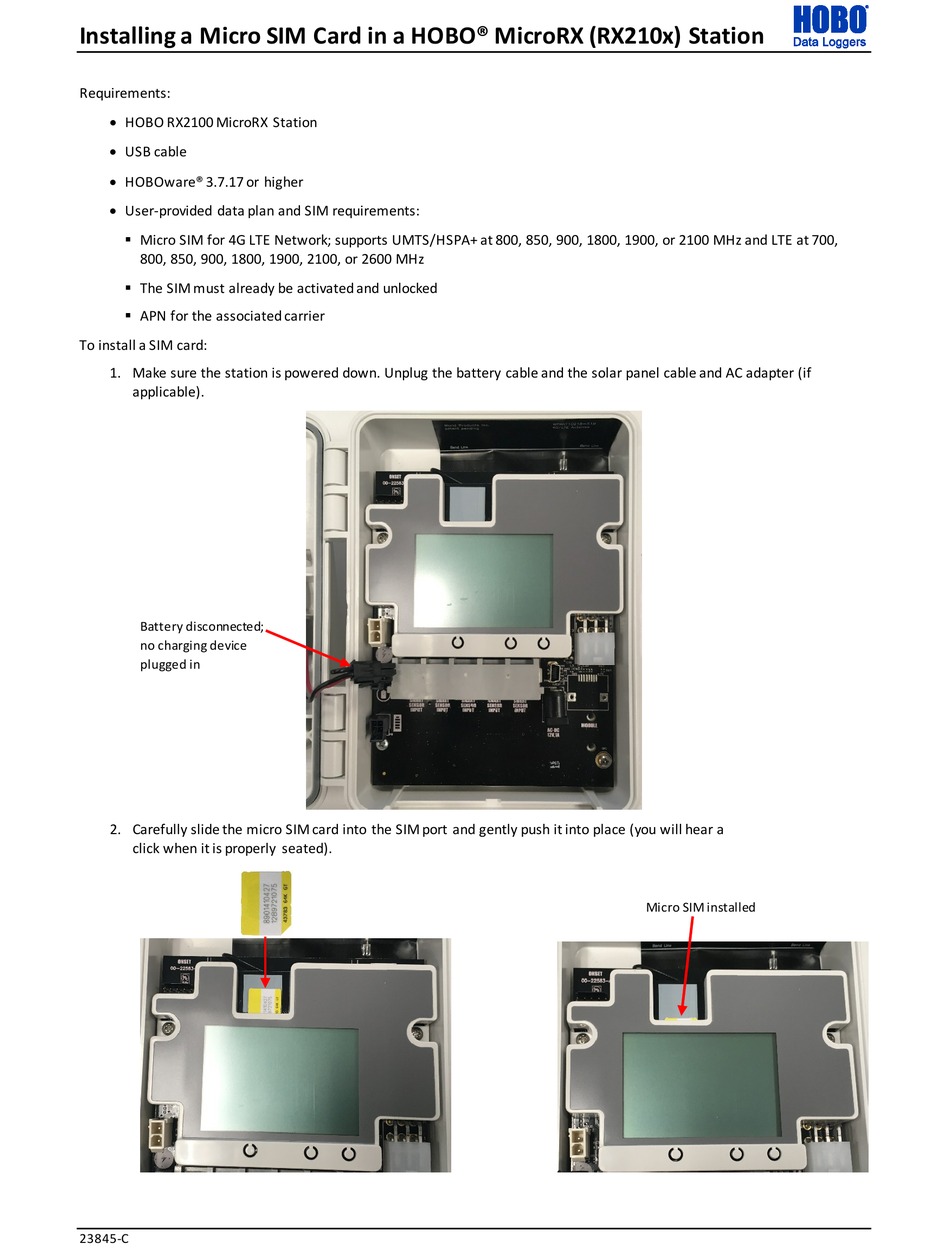

Installing a Micro SIM Card in a HOBO® MicroRX (RX210x) Station

Requirements:

• HOBO RX2100 MicroRX Station
• USB cable
• HOBOware® 3.7.17 or higher
• User-provided data plan and SIM requirements:
 Micro SIM for 4G LTE Network; supports UMTS/HSPA+ at 800, 850, 900, 1800, 1900, or 2100 MHz and LTE at 700,
800, 850, 900, 1800, 1900, 2100, or 2600 MHz
 The SIM must already be activated and unlocked
 APN for the associated carrier
To install a SIM card:
1. Make sure the station is powered down. Unplug the battery cable and the solar panel cable and AC adapter (if
applicable).
Battery disconnected;
no charging device
plugged in
2. Carefully slide the micro SIM card into the SIM port and gently push it into place (you will hear a
click when it is properly seated).
23845-C
Micro SIM installed
