Hobo MicroRX RX210 Series Installation Manual

Installing a micro sim card
Hide thumbs Also See for MicroRX RX210 Series:
1
2
3
4

Advertisement

Table of Contents

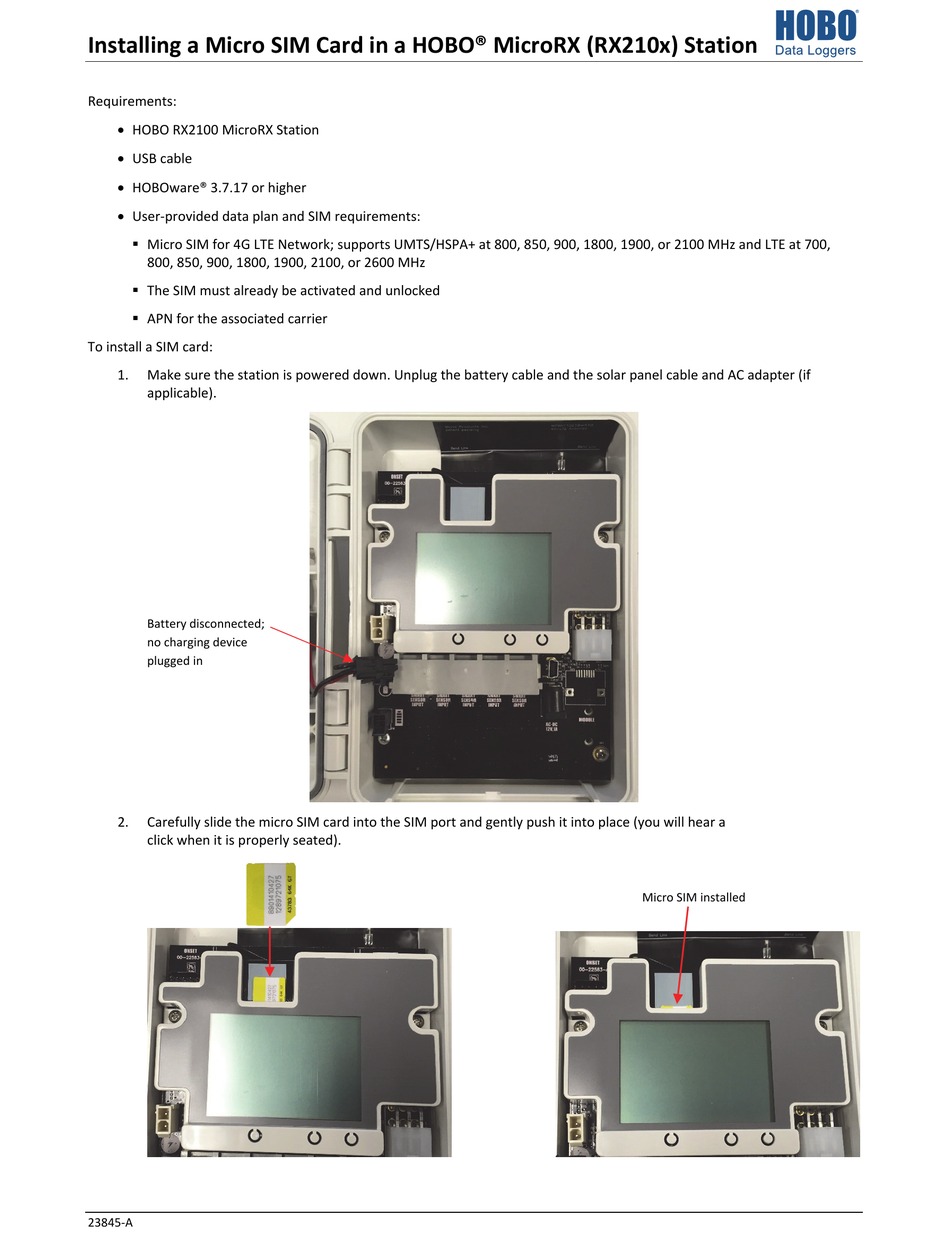

Installing a Micro SIM Card in a HOBO® MicroRX (RX210x) Station

Requirements:

• HOBO RX2100 MicroRX Station
• USB cable
• HOBOware® 3.7.17 or higher
• User-provided data plan and SIM requirements:
 Micro SIM for 4G LTE Network; supports UMTS/HSPA+ at 800, 850, 900, 1800, 1900, or 2100 MHz and LTE at 700,
800, 850, 900, 1800, 1900, 2100, or 2600 MHz
 The SIM must already be activated and unlocked
 APN for the associated carrier

To install a SIM card:

1.
Make sure the station is powered down. Unplug the battery cable and the solar panel cable and AC adapter (if
applicable).
Battery disconnected;
no charging device
plugged in
2.
Carefully slide the micro SIM card into the SIM port and gently push it into place (you will hear a
click when it is properly seated).
23845-A
Micro SIM installed

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MicroRX RX210 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hobo MicroRX RX210 Series

Summary of Contents for Hobo MicroRX RX210 Series

  • Page 1 Installing a Micro SIM Card in a HOBO® MicroRX (RX210x) Station Requirements: • HOBO RX2100 MicroRX Station • USB cable • HOBOware® 3.7.17 or higher • User-provided data plan and SIM requirements:  Micro SIM for 4G LTE Network; supports UMTS/HSPA+ at 800, 850, 900, 1800, 1900, or 2100 MHz and LTE at 700, 800, 850, 900, 1800, 1900, 2100, or 2600 MHz ...
  • Page 2 Installing a Micro SIM Card in a HOBO MicroRX (RX210x) Station Plug in the battery and any charging device (if applicable). “Initializing System” will blink on the LCD while the system powers up. Wait until “System” appears with a checkmark.
  • Page 3 Installing a Micro SIM Card in a HOBO MicroRX (RX210x) Station In the app.properties file, look for the two settings “hoboware.enable.dealer” and “hoboware.enable.setapn” as circled below. For hoboware.enable.dealer = off, replace “off” with “on_authdealer470”. For hoboware.enable.setapn = off, replace “off” with “on_authdealersetapn”.
  • Page 4 14. Click Save and then click Done. 15. Click Close in the RX Series Manager. 16. Disconnect the USB cable from the station. It should now be ready to connect with HOBOlink®. Refer to the HOBO MicroRX Station Manual at www.onsetcomp.com/manuals/support/23808-rx2100-manual for details on setting up and configuring the station.
