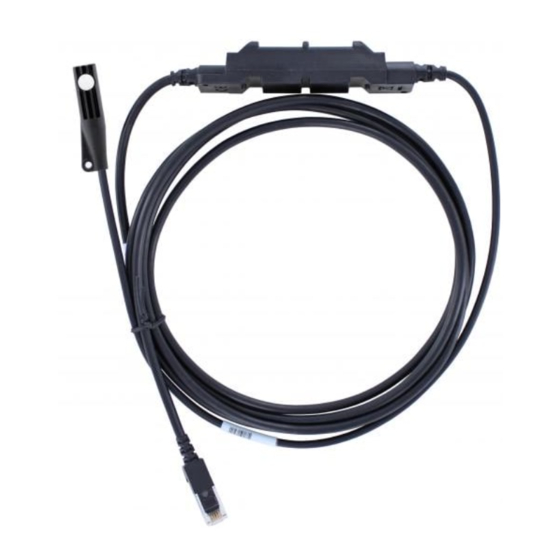

Temperature/RH Smart Sensor (S-THC-M00x) Manual
Temperature/RH
Smart Sensor
Models: S-THC-M002
S-THC-M008
Accessories:
• Solar radiation shield
(RS3-B)
25929-A
The temperature/RH smart sensor is designed to work with smart sensor-compatible HOBO®
data loggers and stations. All sensor parameters are stored inside the smart sensor, which
automatically communicates configuration information to the logger without any
programming, calibration or extensive user setup.

Specifications

Measurement Range
Accuracy
Resolution
Bits Per Sample
Drift
Response Time (typical, to 90%
of change)
Operating Temperature Range
Environmental Rating
Housing
Sensor Dimensions
Weight
Number of Data Channels**
Measurement Averaging Option
Cable Lengths Available
Length of Smart Sensor
Network Cable*
* Maximum 100% RH readings are only logged with RX3000 stations. The maximum readings for this sensor with U30 and
H21 stations is approximately 99.99%.
** A single HOBO station can accommodate 15 data channels and up to 100 m (328 ft) of smart sensor cable (the digital
communications portion of the sensor cables).
Temperature
-40°C to 75°C (-40°F to 167°F)
±0.25°C from -40° to 0°C (±0.45°F
from -40° to 32°F)
±0.20°C from 0° to 70°C (±0.36°F
from 32° to 158°F)
±0.25°C from 70° to 75°C
(±0.45°F from 158° to 167°F)
0.02°C (0.036°F)
16
<0.01°C (0.018°F) per year
Without solar radiation shield:
3 minutes, 45 seconds in air
moving 1 m/s
With RS3-B solar radiation
shield: 6 minutes, 30 seconds in
air moving 1 m/s
-40°C to 75°C (-40°F to 167°F)
Weatherproof: 0 to 100% RH intermittent condensing environments.
For best results, protect the temp/RH sensor from sunlight and direct
splashing by mounting it inside a protective enclosure, such as a solar
radiation shield.
PVC cable jacket with ASA styrene polymer RH sensor cap; modified
hydrophobic polyethersulfone membrane
45.97 x 11.43 x 10.16 mm (1.81 x 0.45 x 0.40 inches)
S-THC-M002: 110 g (3.88 oz)
S-THC-M008: 180 g (6.35 oz)
2
No
2.5 m (8.2 ft); 8 m (26.2 ft)
0.5 m (1.6 ft); 6 m (19.6 ft)
The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
The UKCA marking identifies this product as complying with all
relevant directives in the UK Declaration of Conformity.
RH
0-100%* RH at -40° to 75°C (-40°
to 167°F); exposure to conditions
below -20°C (-4°F) or above 95%
RH may temporarily increase the
maximum RH sensor error by an
additional 1%
±2.5% from 10% to 90% RH
typical to a maximum of ±3.5%
including hysteresis at 25°C
(77°F); below 10% and above
90% ±5% typical
0.01% RH
16
<1% per year typical
Without solar radiation shield:
15 seconds in air moving 1 m/s
With RS3-B solar radiation
shield: 30 seconds in air moving
1 m/s
