HOBO® RX3000 Remote Monitoring Station Manual

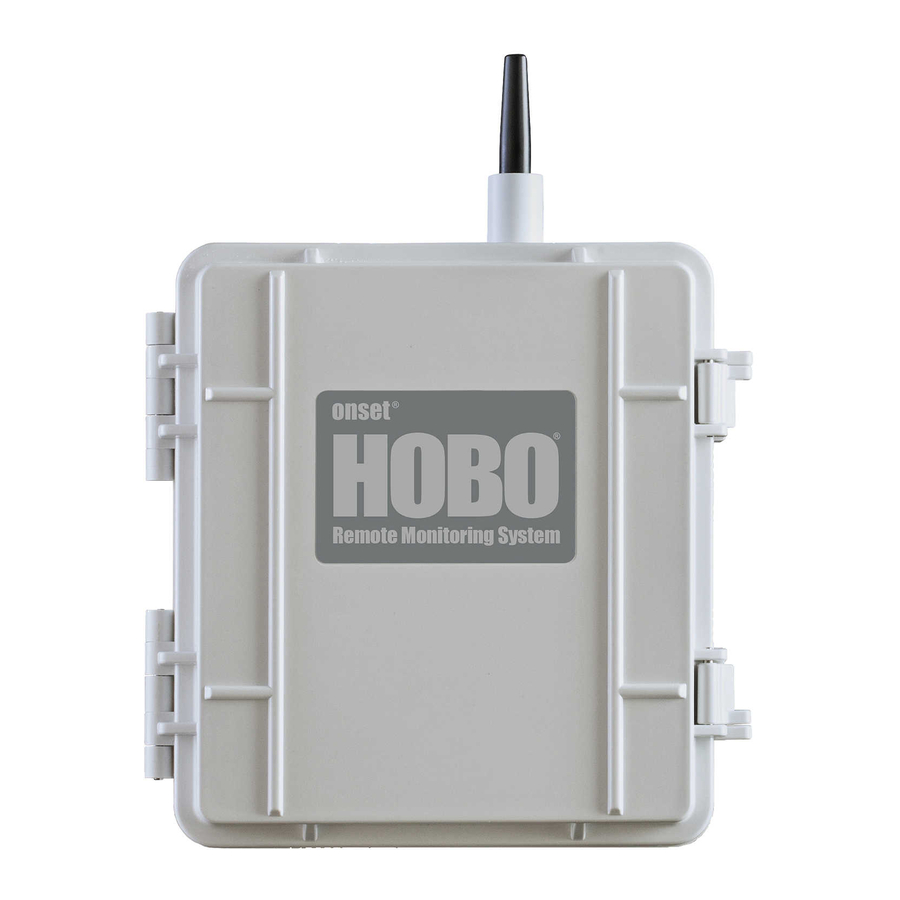

(RX3003 Model Shown)
HOBO RX3000 Remote
Monitoring Station
Models: RX3001-00-01 Ethernet
RX3002-00-01 Wi-Fi
RX3003-00-01 Cellular
Included Items:
• Two plates for cable access
openings with eight
thumbscrews and one wrench
• Two rubber cable channels
• Rubber plugs
• Grease packet
• Two mounting plates with
four screws
• Grounding wire
• Two U-bolts
Required Items:
• HOBOlink
• HOBOware
®
3.7.2 or later
with USB cable for RX3002 Wi-
Fi models (optional for RX3001
and RX3003 models)
• AC adapter (AC-U30) or solar
panel (SOLAR-1.2W, SOLAR-
3W, or SOLAR-6W)
Optional Items:
• Smart sensors
• Analog sensor module
(RXMOD-A1)
• Relay module (RXMOD-R1)
• External DC power cable
(CABLE-RX-PWR)
• Tripod kit (M-TPA or M-TPB)
• Guy wire kit (M-GWA)
• 1/2 inch stake kit (M-SKA)
• Grounding kit (M-GKA),
required if using wind speed
or wind direction smart sensor
Sensors, modules, and
accessories are available at
www.onsetcomp.com.
18255-I
The HOBO RX3000 Remote Monitoring Station provides continuous logging for a broad range of
energy and weather monitoring applications with up to ten smart sensors and optional relay and
analog sensor modules. Data from the RX3000 station is transferred at regular connection
intervals to HOBOlink® web-based software where you can check the latest conditions, view
graphs, configure sensors and alarms, download your data, or schedule data delivery via email or
FTP. Inside its weatherproof enclosure, this durable station has a built-in LCD screen to check the
current system configuration and status, start and stop logging, add and remove smart sensors,
and connect to HOBOlink on demand. Up to three individual relays can be activated on the
optional relay module while the optional analog module has four analog inputs that support
excitation power, scaling, and statistics measurements. Both of these easy-to-install modules can
be configured with HOBOlink.

Specifications

Station
Operating Range
Smart Sensor Connectors
Smart Sensor Network Cable
Length
Smart Sensor Data Channels
Module Slots
Logging Rate
Time Accuracy
Battery Type/Power Source
Rechargeable Battery
Service Life
Memory
Alarm Notification Latency
Enclosure Access
LCD
Materials
Size
Weight
Mounting
Environmental Rating
-40° to 60°C (-40° to 140°F); no remote communications for battery
voltage less than 3.9 V DC
10
100 m (328 ft) maximum
Maximum of 15 (some smart sensors use more than one data
channel; see sensor manual for details)
2
1 second (RX3001 and RX3002) or 1 minute (RX3003) to 18 hours
±8 seconds per month in 0° to 40°C (32°F to 104°F) range;
±30 seconds per month in -40° to 60°C (-40° to 140°F) range
4 Volt, 10 AHr, rechargeable sealed lead-acid; external power
required using one of these options: AC power adapter (AC-U30),
solar panel (SOLAR-xW), or external power source 5 V DC to 17 V DC
with external DC power cable (CABLE-RX-PWR)
Typical 3–5 years when operated in the temperature range -20° to
40°C (-4°F to 104°F); operation outside this range will reduce the
battery service life
32 MB, 2 million measurements, continuous logging
Logging interval plus 2–4 minutes, typical
Hinged door secured by two latches with eyelets for use with user-
supplied padlocks
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly
or go blank in temperatures outside this range
Outer enclosure: Polycarbonate/PBT blend with stainless steel hinge
pins and brass inserts; Inner enclosure: Polycarbonate; Gaskets:
Silicone rubber; Cable channel: EPDM rubber; Cable opening cover:
Aluminum with ABS plastic thumb screws; U-Bolts: Steel with zinc
dichromate finish
18.6 x 18.1 x 11.8 cm (7.3 x 7.1 x 4.7 in.); see diagrams on next page
2.2 kg (4.85 lb)
3.8 cm (1.5 inch) mast or wall mount
Weatherproof enclosure, NEMA 4X (requires proper installation of
cable channel system)
The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU)
Approved for use in the USA and Canada, see last page; RX3003
approved for use in Taiwan and Japan; contains FCC ID R68XPICOW,
IC ID 3867A-XPICOW (RX3002) and FCC ID QIPEHS6, IC ID 7830A-EHS6
(RX3003)
