ICE FISHING TRANSDUCER Installation Guide
2b. If your control head base does not include a jumper port, insert the transducer cable into the appropriate port on the rear of the control
head. The ports are keyed to prevent reversed installation, so be careful not to force the connector into the port. If the cable connector
feels tight, lightly coat the outside of the connector with silicone grease. See your control head installation guide for additional
information.
NOTE: If you have an ICE 55 Flasher, remove the control head and base from the portable bag to connect the transducer cable, then reinstall
it in the portable bag.

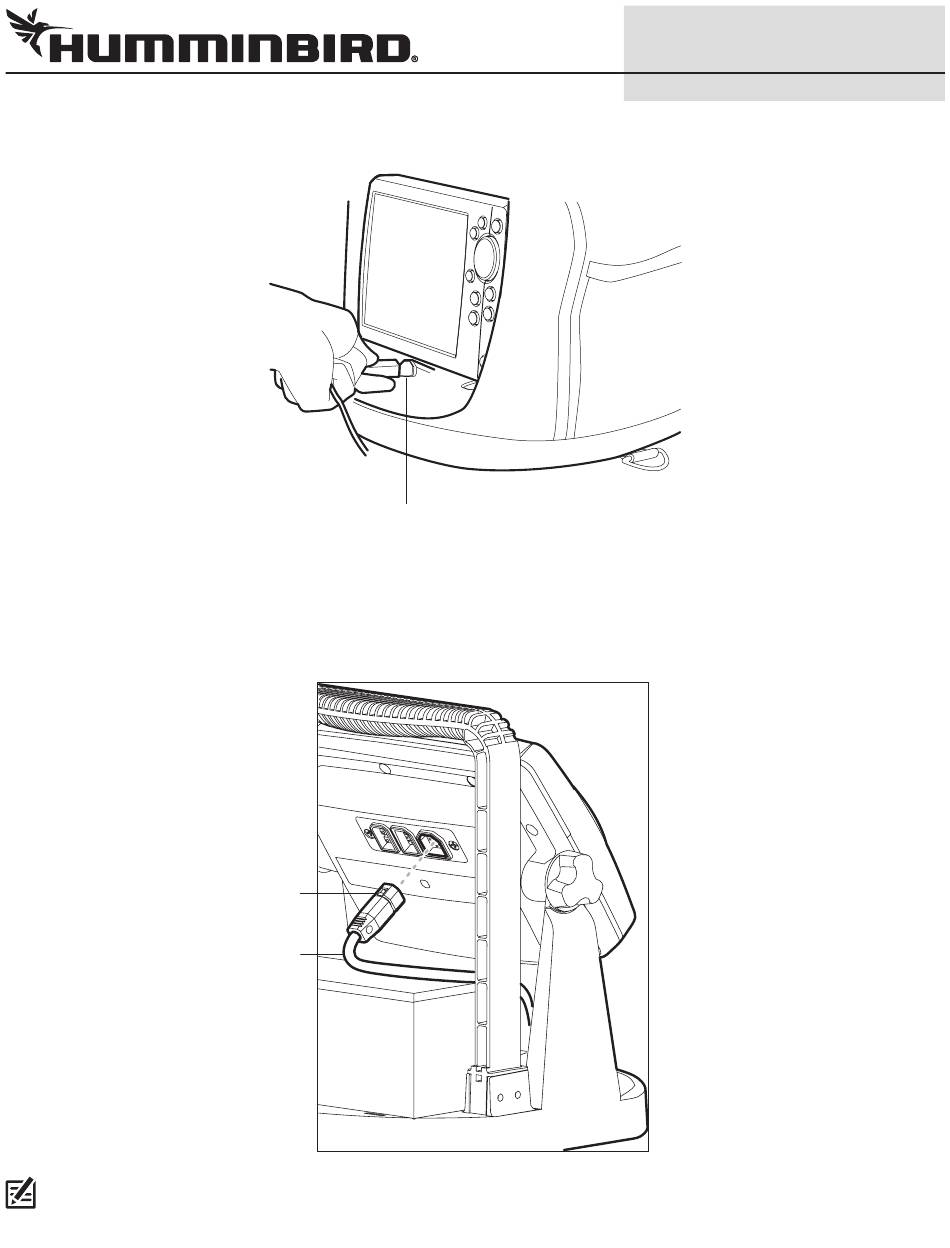

Connecting to the Portable Base
jumper port
Connecting to the Control Head
If the cable
connector feels
tight, lightly coat
the outside of the
connector with
silicone grease.
transducer cable
OR...
(ICE Flasher shown below)
