ICE HELIX® CHIRP SERIES Quick Start Guide
Power On/Off
1 Power On:
2 Select the Start-Up Mode:
startup. Select Normal, and press the RIGHT Cursor key.
3 Quick Setup:
settings. Press the EXIT key to close the menu.
Power Off:
Select Settings for Ice Fishing

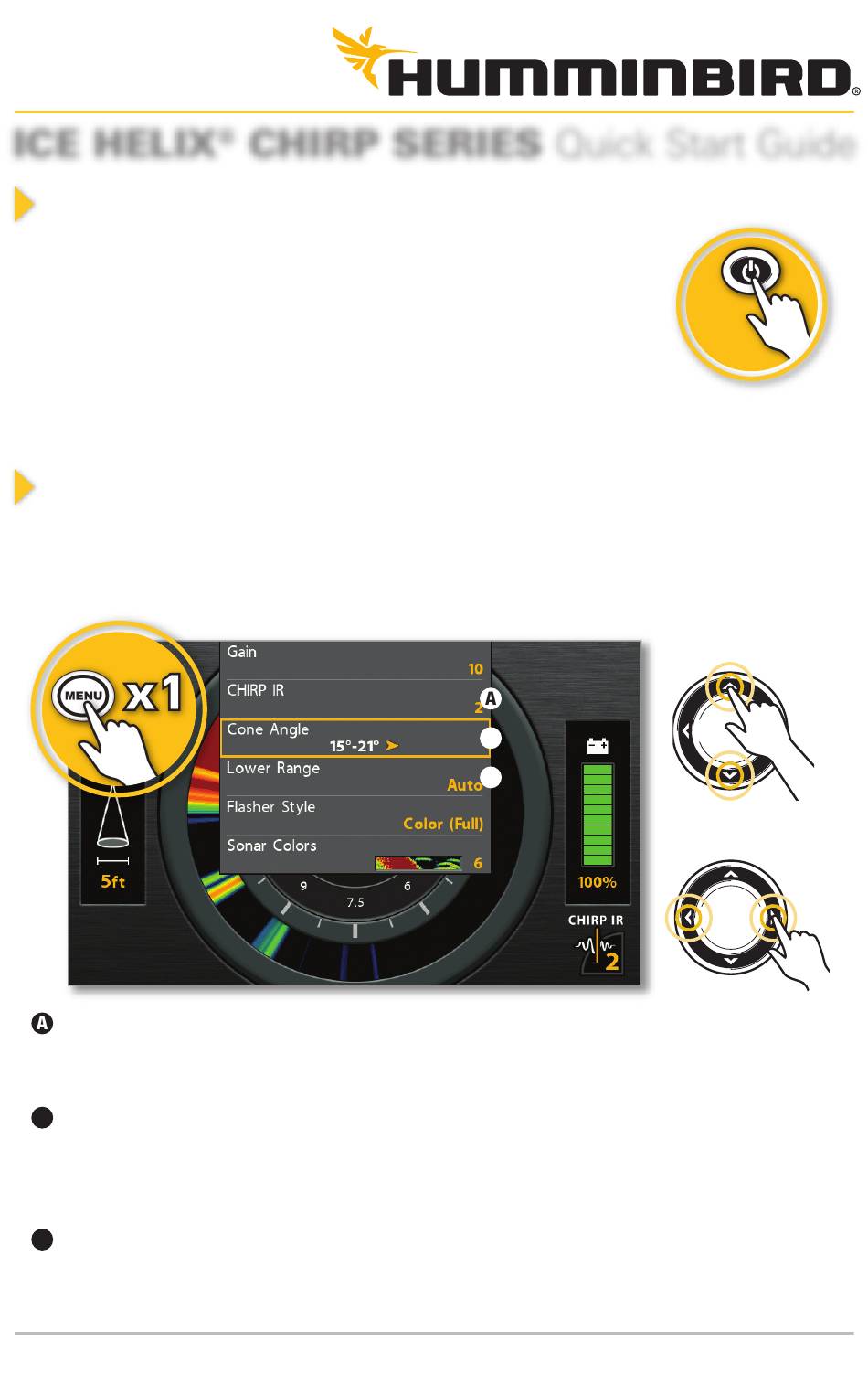

1 Display a Sonar View:
2 Open the X-Press™ Menu:
CHIRP IR (Interference Rejection) (CHIRP models only) - If you are fishing near
other ICE flashers or transducers, use CHIRP IR to reduce interference or noise on
the sonar display.
Cone Angle (CHIRP models only) - Select 15º for a narrowly focused down beam.
B
Select 21º for a wide down beam and larger coverage area. Select 15º-21º to use
the full frequency range for your transducer. CHIRP IR must be off to set the Cone
Angle.
Lower Range - Use the default Auto depth range setting included with your control
C
head, or manually set the depth range.
Press the POWER key.
Use the Cursor Control key to select
Press and hold the POWER key.
Press the VIEW key until a Sonar view is displayed.
Open the X-Press Menu
Press the MENU key on
Press the MENU key once.
B
C
1
Power On/Off
Select a Menu
Select a Setting
