Wire The Card Access Controllers - Mircom TX3-BBCX-4W Wiring

Upper cards
Lower cards
A complete library of product
information is available at:
www.TX3.mircom.com

WIRE THE CARD ACCESS CONTROLLERS

There are two battery shelves.
1. Connect the two upper cards to the batteries on the top shelf with the longer
cables.
2. Connect the two lower cables to the batteries on the lower shelf with the
shorter cables.
3. Connect the battery cables to the BAT + (red) and BAT - (black) terminals on the
card access controllers.

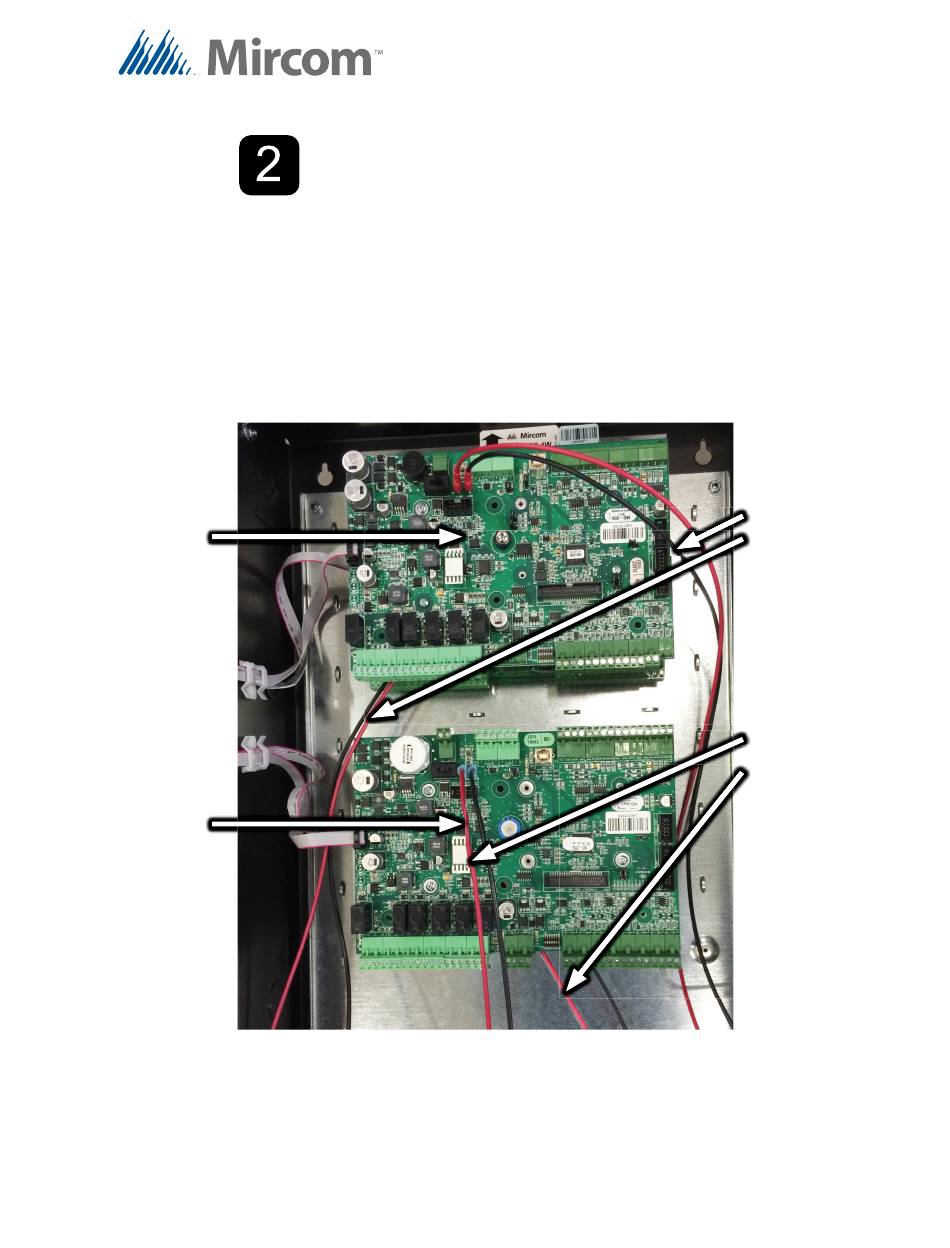

Figure 2. Wiring the card access controllers to the batteries
Longer cables to
upper battery shelf
Shorter cables to
lower battery shelf
© Mircom 2014
Printed in Canada
Subject to change without prior notice
LT-1182 rev 0
