R8/17...R30/17
Version: RO(+)
Assembly and Operating Instructions
en

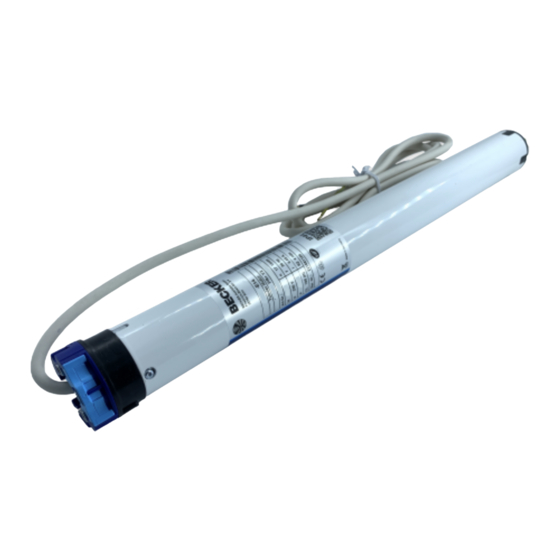

Tubular drives for roller shutters
Important information for:
• Fitters / • Electricians / • Users
Please forward accordingly!
These instructions must be kept safe for future reference.
2010 300 443 0f 25/08/2016
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
www.becker-antriebe.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Becker R12/17RO+
Summary of Contents for Becker R12/17RO+
- Page 1 Assembly and Operating Instructions Tubular drives for roller shutters Important information for: • Fitters / • Electricians / • Users Please forward accordingly! These instructions must be kept safe for future reference. 2010 300 443 0f 25/08/2016 Becker-Antriebe GmbH Friedrich-Ebert-Straße 2-4 35764 Sinn/Germany www.becker-antriebe.com...
-
Page 2: Table Of Contents
Table of contents General .................................... 3 Warranty ..................................... 3 Safety instructions ................................ 4 Instructions for the user.............................. 4 Instructions for installation and commissioning........................ 4 Intended use .................................. 6 Drive version with angled plug ............................... 6 Installation................................... 8 Assembling the drive ............................... 8 Undoing the mounting pin.............................. -
Page 3: General
General These tubular drives are high-quality products with the following features: • Ideal for use with roller shutters • Automatic detection of limit positions thanks to intelligent electronic system with stop systems (RO, RO+) ∙ Secure anti-lifting device (RO+) ∙ Slight pressure applied to the roller shutter curtain makes it difficult to raise or reach under it (RO+) ∙... -
Page 4: Safety Instructions
Safety instructions The following safety instructions and warnings are intended to avert hazards and to prevent property damage and personal injury. Instructions for the user General information • All work, including maintenance and cleaning, on electrical installations as well as other system parts must always be performed by authorised specialists, in particular qualified electricians. - Page 5 • Moving parts of drives must be installed at a height of over 2.5 m above floor level or any other surface from which access to the drive is gained. • To ensure safe operation of the system after commissioning, the limit positions must be correctly set/ programmed in.
-
Page 6: Intended Use
Intended use The type of tubular drive described in these instructions is intended solely for the operation of roller shutters. This type of tubular drive supports not only curtain attachment by means of springs but also mechanical anti-lifting devices (e.g., Zurfluh-Feller, Simu, GAH Alberts and Deprat). - Page 7 Disassembling the plug-in connecting cable for tubular drives with angled plug Caution Prior to disassembly, the power supply to the connecting cable must be disconnected. Insert a suitable flathead screwdriver right into the recess of the locating latch, so that the latch releases the locating lug from the plug.
-
Page 8: Installation
Installation Assembling the drive Attention To connect the drive to the driven part, solely mechanical accessory components made by the drive manufacturer from the current product catalogue may be used. Prior to mounting, the fitter must ensure that the masonry and the system being motorised are sufficiently robust (drive torque plus weight of the shading solution). -
Page 9: Disassembling The Drive Adapter With Safety Catch On The Drive Shaft
Disassembling the drive adapter with safety catch on the drive shaft Disassembly with disassembly tool, Item no. 4930 300 606 0 Disassembly with long nose pliers Assembling and disassembling the drive adapter with separate drive adapter safety catch Assembling and disassembling the drive adapter with screw connection Securing the drive against axial displacement In order to secure the drive against axial displacement, we recommend screwing the drive adapter to the tube. -
Page 10: Fixing The Drive Adapter To The Barrel Dia. 45
Fixing the drive adapter to the barrel dia. 45 Size of drive Diameter of barrel Torque Fastening screws [mm] [mm] max. [Nm] for drive adapter (4 pc.) dia. 45 50 - 70 mm plastic drive adapter Self-tapping screw dia. 4.8 x 9.5 mm dia. 45 50 - 85 mm plastic drive adapter Self-tapping screw for obstacle detection... - Page 11 When using springs/anti-lifting devices, we recommend you use at least three; for longer tubes, use three springs/anti-lifting devices per meter of barrel. Lay the connecting cable Lay the connecting cable up to the tubular drive, and fix The connecting cable and any antennae must not project into the winding chamber.
-
Page 12: Setting The Limit Positions
Setting the limit positions Attention The programming unit is only designed for the commissioning, not for continuous opera- tion. Intelligent installation management Completion of installation following automatic setting of limit positions The drive saves the limit position setting permanently once the upper limit position is reached 3 times in succession and then the lower limit position is reached 3 times in succession directly afterwards. -
Page 13: Deleting The Limit Positions Using The Programming Unit
Deleting the limit positions using the programming unit Connect the wires of the tubular drive to those of the same colour in the programming unit and switch on the power supply. Please pause for 1 sec after the last drive command before beginning the deletion se- quence. -
Page 14: Information For The Electrician
Information for the electrician Tubular drives with electronic limit switching can be connected in parallel. The maximum switching contact load of the switching equipment (timer, relay control, switch, etc.) must be observed. To operate drives with electronic limit switching, only use switch- ing elements (timers) that are not earthed via the drive. -
Page 15: What To Do If
What to do if...? Problem Cause Remedy The roller shutter curtain is raised un- 1. One or more attachments have Repair system; then re-programme limit evenly or not at all. broken off. positions. 2. Lath has broken off. Tubular drive overruns the upper limit po- Stops have broken off Repair system;... -
Page 16: Sample Wiring Diagrams
Sample wiring diagrams The assignment of the black and brown wires according to the direction of travel is de- pendant on how the drive is installed (mounted to the right or to the left). Controlling one/several drive(s) via a single switch/button... - Page 17 Central, group and individual control using Centronic UnitControl UC42 Central Control unit Mains 230 V / 50 Hz Central cable 230 V / 50 Hz (connection to further control units) Group 230 V / 50 Hz Individual Individual 230 V / 50 Hz 230 V / 50 Hz...
-
Page 18: Declaration Of Conformity
Declaration of conformity...
