Model: C18 PLUS
Assembly and Operating Instructions
en

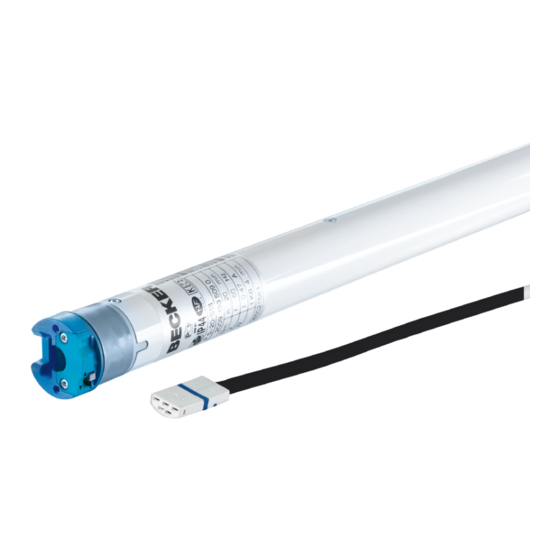

Tubular drive with integrated radio transceiver for
ZIP systems
Important information for:
• Fitters / • Electricians / • Users
Please forward accordingly!
These instructions must be kept safe for future reference.
2010 301 285 0a 06/07/2022
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
www.becker-antriebe.com
Advertisement
Table of Contents
Related Manuals for Becker P5-20-C18 PLUS
Summary of Contents for Becker P5-20-C18 PLUS
- Page 1 Tubular drive with integrated radio transceiver for ZIP systems Important information for: • Fitters / • Electricians / • Users Please forward accordingly! These instructions must be kept safe for future reference. 2010 301 285 0a 06/07/2022 Becker-Antriebe GmbH Friedrich-Ebert-Straße 2-4 35764 Sinn/Germany www.becker-antriebe.com...
-
Page 2: Table Of Contents
Table of contents General .................................... 3 Warranty ..................................... 4 Safety instructions ................................ 4 Instructions for the user.............................. 4 Instructions for installation and commissioning........................ 4 Intended use .................................. 6 Assembling and disassembling the plug-in connecting cable.................... 6 Assembly .................................... 7 Compatible Centronic transmitters ............................ 9 Commissioning with a CentronicPLUS transmitter ........................ -
Page 3: General
General These tubular drives are high-quality products with the following features: • Optimised for vertical ZIP applications • Individual, group and central radio control • No need to run wires to a switch or relay control device • Any combination of drive and transmitter possible •... -
Page 4: Warranty
Warranty Structural modifications and incorrect installation which are not in accordance with these and our other instructions can result in serious injuries, e.g., crushing of limbs. Therefore, structural modifications may only be carried out with our prior approval and strictly in accordance with our instructions, particularly the information contained in these Assembly and Operating Instructions. Any further processing of the products which does not comply with their intended use is not permitted. - Page 5 • Hazardous moving parts of the drive must be installed at a height of over 2.5 m above floor level or any other surface from which the drive can be accessed. • To ensure safe operation of the system after commissioning, the limit positions must be correctly set/ programmed in.
-
Page 6: Intended Use
Intended use The type of tubular drive described in these instructions is intended solely for the operation of vertical ZIP systems. It may only be used in networked systems if all the individual drives are exactly synchronised and reach their limit positions at the same time. -
Page 7: Assembly
Ø45/Ø58 Insert a suitable flathead screwdriver right into the recess of the locating latch, so that the latch releases the locating lug from the plug. Now you can pull out the connecting cable along with the flat- head screwdriver. A = locating latch Assembly Assembling the drive Attention... - Page 8 Assembling the drive adapter with safety catch on the Disassembling the drive adapter with safety catch on the drive shaft drive shaft Assembling and disassembling the drive adapter with drive adapter safety catch or screw connection Assembling and disassembling the drive Assembling and disassembling the drive adapter with separate drive adapter adapter with screw connection...
-
Page 9: Compatible Centronic Transmitters
All CentronicPlus receivers can be operated with the Centronic transmitters listed in the Centronic/CentronicPlus compatibility table at www.becker-antriebe.com/downloads As two fundamentally different radio technologies are linked in this case, the full performance of the CentronicPlus radio control system is not available in this combination. When using the Centronic transmitter with CentronicPlus receiver, the range perform- ance may be reduced under certain circumstances. -
Page 10: Commissioning With A Centronicplus Transmitter
Commissioning with a CentronicPLUS transmitter Explanation of symbols UP button STOP button DOWN button Programming button (on the transmitter) Function button (on the transmitter) LED ring on the transmitter Receiver confirms once or multiple times by “clicking” or “shifting” 1 = direction switch 2 = radio switch Operating modes Normal mode... -
Page 11: Establish Programming Mode
Connecting the tubular drive Connect the tubular drive to the power supply. 230V AC / 50 Hz 1 = blue 3 = black 2 = brown 4 = green / yellow Switch on the power. ► The tubular drive confirms. Establish programming mode This step is only necessary if one of the devices to be programmed is not yet part of the in- stallation. -
Page 12: Programming The Centronicplus Transmitter
Programming the CentronicPLUS transmitter With brand new products, devices from another installation or products that have been re- stored to factory settings, programming mode must be established beforehand (see Es- tablishing programming mode). Bring the transmitter as close as possible to the receiver to be programmed. Press the programming button for 3 seconds when it is ready to program. -
Page 13: Selection Of The Receiver For The Setting Mode
Now press and hold the programming button for a new transmitter. ▻ After 5 seconds, the LED rings on both transmitters start to fill in green. Continue pressing and holding the programming button. ▻ Once the new transmitter has been added successfully, both transmitters flash green to confirm. -
Page 14: Checking That The Running Direction Is Correct
Checking that the running direction is correct The direction of rotation can only be changed if no limit position has been set. There are several ways to change the direction of rotation: • Changing direction of rotation via the direction switch •... -
Page 15: Intelligent Installation Management
Intelligent installation management Completion of installation following automatic setting of limit positions The drive saves the limit position permanently once the upper limit position is reached 3 times in succession. Installation is then complete. If the limit position is set above a point, this is stored permanently. Limit position status indicator A brief stopping and restarting indicates that no limit position has been set in that direction of movement. -
Page 16: Extended Point To Retracted Stop
Extended point to retracted stop Select the required receiver as described in the chapter Selection of the receiver for the setting mode [} 13]. Open to the desired extended limit position. Press the programming button and, within 3 seconds, also press the extend button and hold the two buttons down. -
Page 17: Deleting The Limit Positions
2) Extending the range of travel (the desired limit position is located outside the current range of travel) Attention When both or individual limit positions are deleted, all the other set functions (intermediate position I, intermediate position II) are deleted as well. Select the required receiver as described in the chapter Selection of the receiver for the setting mode [} 13]. -
Page 18: Intermediate Positions I + Ii
Deleting both limit positions Any additional functions that may have been set are deleted at the same time, or are reset to the factory default settings. Select the required receiver as described in the chapter Selection of the receiver for the setting mode [} 13]. -
Page 19: Restoring The Wireless Memory Of The Tubular Drive To Factory Settings
Deleting the desired intermediate position Move the shading solution to the intermediate position that is to be deleted. Now press the STOP button and, within 3 seconds, also press the travel button as- signed to the intermediate position and hold the two buttons down. ▻... - Page 20 Briefly press the programming button to change to the setting mode. ▻ The receiver confirms. ▻ The LED ring of the transmitter slowly pulses light blue. ▻ The receiver now enters dead-man mode. ▻ The setting mode is now active. Then press the programming button and also the button, the STOP button and the button for approximately 3 seconds.
-
Page 21: Commissioning With A Centronic Transmitter
Commissioning with a Centronic transmitter Explanation of symbols UP button STOP button DOWN button Programming button (on the transmitter) Receiver confirms once or multiple times by "clicking" or "shifting" 1 = direction switch 2 = radio switch Attention The tubular drives are designed for short-time operation. An inbuilt thermal protection switch prevents overheating of the tubular drive. -
Page 22: Programming The Master Transmitter
Readying the tubular drive for programming with the radio switch Switch the radio switch to the inside position. If the radio switch is already in this posi- tion, switch it to the outside and back to the inside position. ► The tubular drive is ready to program for 3 minutes. Programming the master transmitter Press the programming button for 3 seconds when it is ready to programme. -
Page 23: Intelligent Installation Management
Changing direction of rotation via master transmitter Press the button. ▻ The shading solution runs in the desired direction. ► The running direction is OK. If the shading solution runs in the wrong direction, the running direction must be changed. Proceed as follows: First, press the programming button, then within 3 seconds also press the button for 3 seconds. -
Page 24: Deleting The Limit Positions
Lower point to upper stop Close to the desired lower limit position. Press the programming button and, within 3 seconds, also press the button and hold the two buttons down. ▻ The tubular drive acknowledges. Then open as far as the permanent stop. ▻... -
Page 25: Programming Additional Transmitters
Travelling to the desired intermediate position Press the travel button for the desired intermediate position twice within one second. ► The curtain runs to the intermediate position assigned to the travel button. Deleting the desired intermediate position Move the shading solution to the intermediate position that is to be deleted. Now press the STOP button and, within 3 seconds, also press the travel button as- signed to the intermediate position and hold the two buttons down. -
Page 26: Overwriting The Master
Deleting all transmitters (except the master transmitter) Press the programming button on the master transmitter for 3 seconds. ▻ The tubular drive acknowledges. Re-press the programming button on the master transmitter for 3 seconds. ▻ The tubular drive acknowledges. Re-press the programming button on the master transmitter for 10 seconds. ▻... -
Page 27: Setting The Limit Positions With Auto-Install (For Zip Applications With Heavy End Strip)
Setting the limit positions with Auto-install (for ZIP applications with heavy end strip) For proper execution of the auto-install function, the necessary torque in the lower limit position must be at least 1/3 of the rated torque of the tubular drive used. Example: Tubular drive 12 Nm, barrel diameter 85 mm (r= 0.0425 m, no part of the shading solution is on the barrel when uncoiled). -
Page 28: Restoring The Factory Settings Of The Tubular Drive
Activating/deactivating the fabric untensioning function with a CentronicPLUS transmitter Select the required receiver as described in the chapter Selection of the receiver for the setting mode [} 13]. Open the shading solution to the upper limit position. Then press the programming button again, and also the STOP and buttons for ap- prox. -
Page 29: Local Operation With A Single Button
Local operation with a single button Only use a single button (normally open). Only connect one drive for each push-button. The length of cable between the tubular drive and the push-button must not exceed 20 m. The push-button must not be operated during the first five seconds after the mains voltage has been switched on. -
Page 30: Technical Data Dia. 35
Technical data dia. 35 Tubular drive P5-20 P5-30 P9-16 Model C18 PLUS Type C PSOF Z1 PLUS Rated torque [Nm] Output speed [rpm] Limit switch range 64 revolutions Supply voltage 230 V AC / 50 Hz Connected load [W] Rated current consumption [A] 0.47 0.47 0.47 Operating mode S2 4 min. -
Page 31: What To Do If
What to do if...? Problem Remedy Tubular drive does not move. Program new transmitter. Bring transmitter within range of the tubular drive. Press drive or stop button on transmitter at least five times in the immediate vicinity of the tubular drive. Insert battery/batteries correctly in the transmitter or insert new battery/batteries. -
Page 32: Sample Wiring Diagram
Problem Remedy Tubular drive encounters an obstruction and reverses. How- The installation is not yet complete. Travel to the limit position ever, it does not double-check again whether the obstruction is "Stop" three times. still there. Sample wiring diagram 32 - en... -
Page 33: Declaration Of Conformity
Declaration of conformity 33 - en...
