Instruction Disassembling and assembling APP 11-13 and APP 16-22

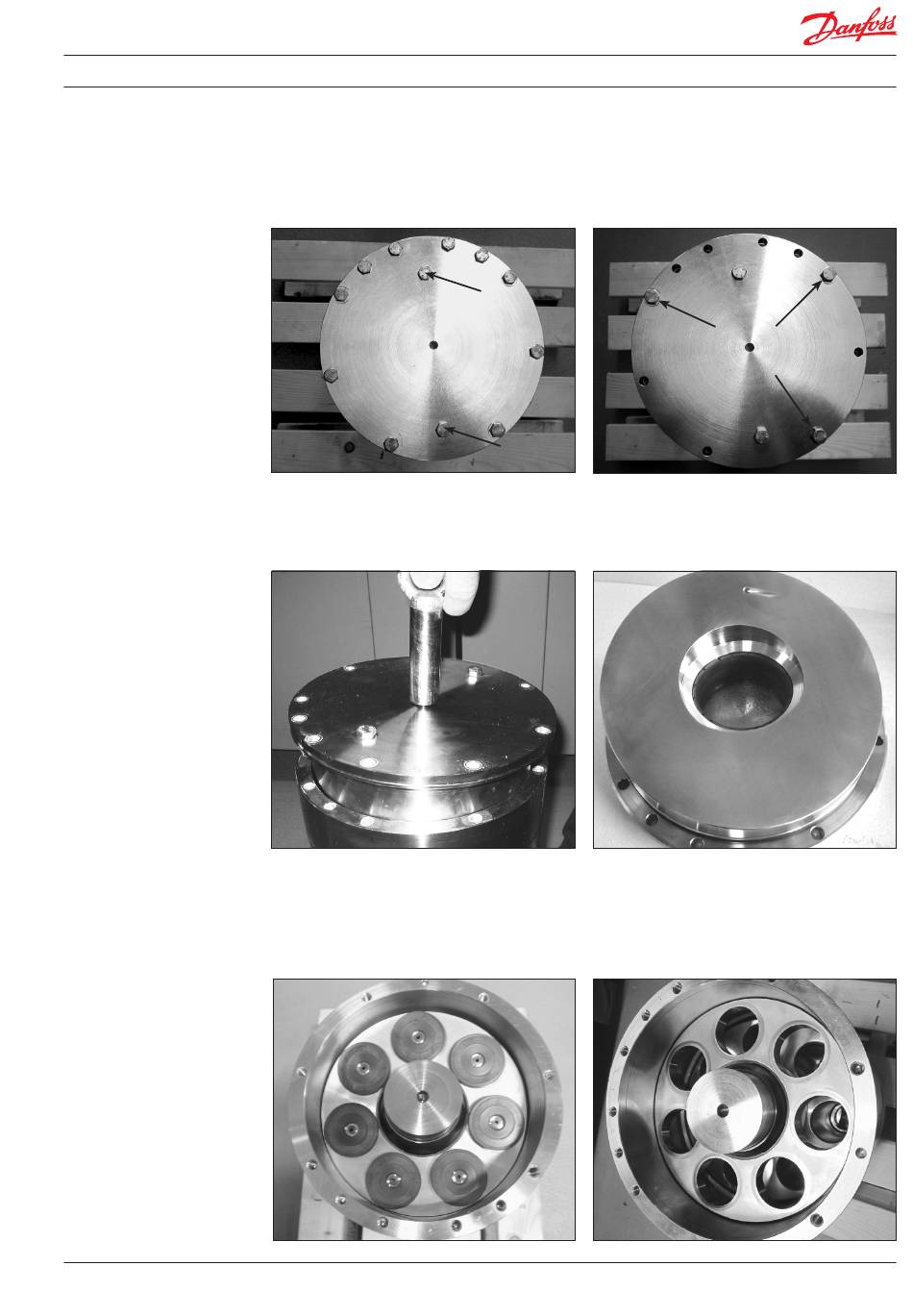

8. Using the 13 mm combination wrench,
remove all the bolts on the mounting
flange except the three shown in the
picture in item 9.
WARNING: Do not loosen the two screws
keeping the swash plate in place.
10. Screw the eye bolt in the M8 hole in the
middle of the flange. Pull it straight
upwards.
12. Remove the pistons one by one. Be careful
not to scratch pistons. Tilt the retainer plate
to horizontal for easy removal of pistons, if
required.
WARNING: DO NOT USE ANY TOOLS.
180R9228 / 521B1181 / DKCFN.PI.013.A2.02 / 10.2013
9. Unscrew the remaining three bolts. Turn
each bolt one round at the time to make
sure that the flange is removed as straight
upward as possible.
11. Swash plate must be placed so that its
surface is not scratched. For further dis-
assembling of swash plate, see page 12.
13. Remove the retainer plate.
Note: As the retainer guide is not
attached to the retainer plate, it might fall
out.
