Summary of Contents for Hunter Douglas Vignette

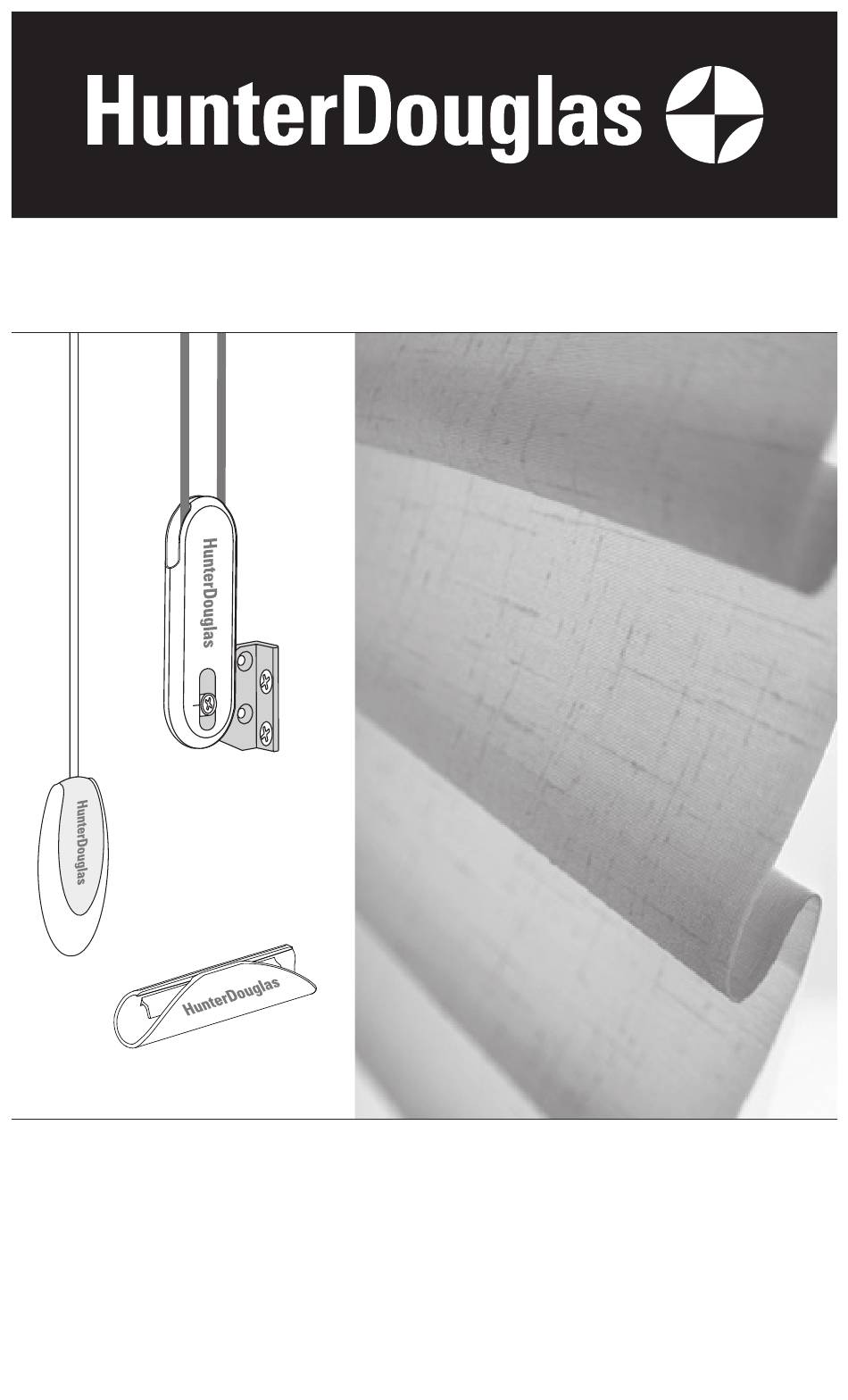

- Page 1 Installation Operation Care • • EasyRise ™ UltraGlide ® LiteRise ® Vignette Modern Roman Shades ® Rolling Style EasyRise, LiteRise, and UltraGlide Operating Systems...
-
Page 2: Table Of Contents
Warning ................... 20 Cord Loop Shades ..............20 Warranty ...............Back Cover Questions? Call Hunter Douglas Consumer Support at 1-888-501-8364. © 2018 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or their respective owners. -
Page 3: Getting Started
GETTING STARTED Product View — Rolling Style EasyRise Shades ™ Installation Brackets Headrail 4" Full Fold Fabric Standard Shade Universal Cord Tensioner Bracket Magnetic Hold-Down Bracket (Optional) Two-on-One Headrail Shade Not Shown: 6" Flat Fold... -
Page 4: Product View - Rolling Style Ultraglide Shades
GETTING STARTED Product View — Rolling Style UltraGlide Shades ® Installation Brackets Headrail 4" Full Fold Fabric Standard Shade Retractable Cord Tassel Magnetic Hold-Down Bracket (Optional) Two-on-One Headrail Shade Not Shown: 6" Flat Fold... -
Page 5: Product View - Rolling Style Literise ® Shades
GETTING STARTED Product View — Rolling Style LiteRise Shades ® Installation Brackets Headrail Standard Shade 4" Full Fold Fabric Magnetic Hold-Down Bracket (Optional) Handle Two-on-One Headrail Shade Not Shown: 6" Flat Fold... -
Page 6: Tools And Fasteners Needed
GETTING STARTED Thank you for purchasing Hunter Douglas Vignette Modern Roman Shades. With proper ® installation, operation and care, your new shades will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation. -
Page 7: Installation
INSTALLATION Installation Overview Your order will include installation brackets specific to your shade. ■ The number of installation brackets required varies with shade width, as shown in ➤ the table. Brackets Shade Width Required 12" – 38" " – 72" "... -
Page 8: Mount The Installation Brackets - Inside Mount
INSTALLATION Mount the Installation Brackets — Inside Mount Measure and mark 3" in from each jamb (two bracket widths) for bracket location. ■ If more than two installation brackets came with your order, space additional bracket(s) ➤ evenly between the two end brackets. Mount into wood whenever possible. 3"... -
Page 9: Mount The Installation Brackets - Outside Mount
INSTALLATION Mount the Installation Brackets — Outside Mount Center the headrail over the window opening at the desired height. Use a pencil to lightly ■ mark each end of the headrail. Alternatively, measure the width of the headrail and use that width to mark the headrail ➤... -
Page 10: Mount The Installation Brackets - End Mount
INSTALLATION Pre-drill the screw holes using a " drill bit. ■ CAUTION: Use drywall anchors when mounting into drywall. 3" Attach the installation bracket using the screws provided. ■ IMPORTANT: The front edges of the installation brackets must be level and aligned to each other. If using spacer blocks, attach the spacer ■... -
Page 11: Install The Shade
INSTALLATION Install the Shade Mount the Headrail Peel back the protective covering from the Installation ■ Bracket top of the fabric-covered headrail. Leave the rest of the protective covering on the front of the headrail. Hold the headrail so the front (curved side) ■... -
Page 12: Attach The Universal Cord Tensioner - Easyrise Shades Only
INSTALLATION Attach the Universal Cord Tensioner — EasyRise Shades Only ™ Before you proceed, you must first slide the cord tensioner(s) to the bottom of the cord loop. Insert a small screwdriver, punch, or awl through ■ the screw hole at the bottom of the cord tensioner. Move the screw hole down to the indicator line to ■... -
Page 13: Cord Adjustment - Ultraglide Shades Only
INSTALLATION Cord Adjustment — UltraGlide Shades Only ® Adjusting the tassel to eye level will decrease the amount of pulls needed to raise and lower the shade. This will also enhance child and pet safety. To Shorten the tassel cord: Grasp both parts of the tassel (the colored cover and the ■... -
Page 14: Attach The Magnetic Hold-Down Brackets (Optional)
OPERATION Attach the Magnetic Hold-Down Brackets (Optional) Lower the shade until it is fully lowered and rotated ■ back toward the window. Magnetic Hold-Down Attach the magnetic hold-down brackets onto the ■ Bracket bottom rail just inside the end caps, oriented as shown. -
Page 15: Operate The Shade
OPERATION Operate the Shade EasyRise Shades ™ IMPORTANT: If the cord tensioner moves with the cord, you have not secured it to the wall or window frame. You must do so for the shade to operate properly. See the Universal Cord Tensioner Installation Instructions in the kit included with your shade. - Page 16 OPERATION UltraGlide Shades ® CAUTION: To avoid damage to the shade or personal injury, do not let go of the cord until it is fully retracted. To Lower the Shade: Using long, even strokes, pull the cord toward the center ■ of the shade.
-
Page 17: Troubleshooting
OPERATION Troubleshooting Problem The shade is hard to raise or lower, or will not raise or lower. Solution Check that the headrail and installation brackets are level and aligned in the window. Level the headrail by shimming (not provided) the installation brackets, if necessary. - Page 18 Do not steam the fabric on the headrail, bottom rail, or back liners. A “Fabric Steaming” video is available on YouTube (Vignette Modern Roman Shades—Fabric Steaming—Hunter Douglas) and from Hunter Douglas Learning and Development at my.hunterdouglas.com.
- Page 19 OPERATION Problem EasyRise shades only: Shades raise at different rates when the cord is ™ pulled. Solution Depending on the size and weight of the shades, the clutch ratios may be different. More cord travel is required with larger shades than with smaller shades.
-
Page 20: Care
Cleaning Procedures Vignette Modern Roman Shades are made of an anti-static, dust-resistant fabric which repels ® dirt and dust. For most fabrics, the options below are available if your shade needs cleaning. - Page 21 A Note on Textiles As with all textiles, Vignette fabrics are subject to some inherent variations in the fabric weave. Subtle dye-lot variations, puckering, or wrinkling fall within textile industry standards and should be considered as normal, acceptable quality. These characteristics are not usually visible from the front or rear, but may be visible from a side angle.
-
Page 22: Child Safety Warning
See “Attach the Universal Cord Tensioner (UCT)” on page 10. This can prevent children from pulling cord loops around their necks. Hunter Douglas provides a cord tensioner installation kit with ■ instructions for attaching the cord tensioner. For the shade to operate properly, the cord tensioner must be correctly mounted and secured. -
Page 24: Warranty
2. Visit hunterdouglas.com for additional warranty information, frequently asked questions and access to service locations. 3. Contact Hunter Douglas at (888) 501-8364 for technical support, certain parts free of charge, for assistance in obtaining warranty service or for further explanation of our warranty.
