Summary of Contents for Hunter Douglas Duette Honeycomb

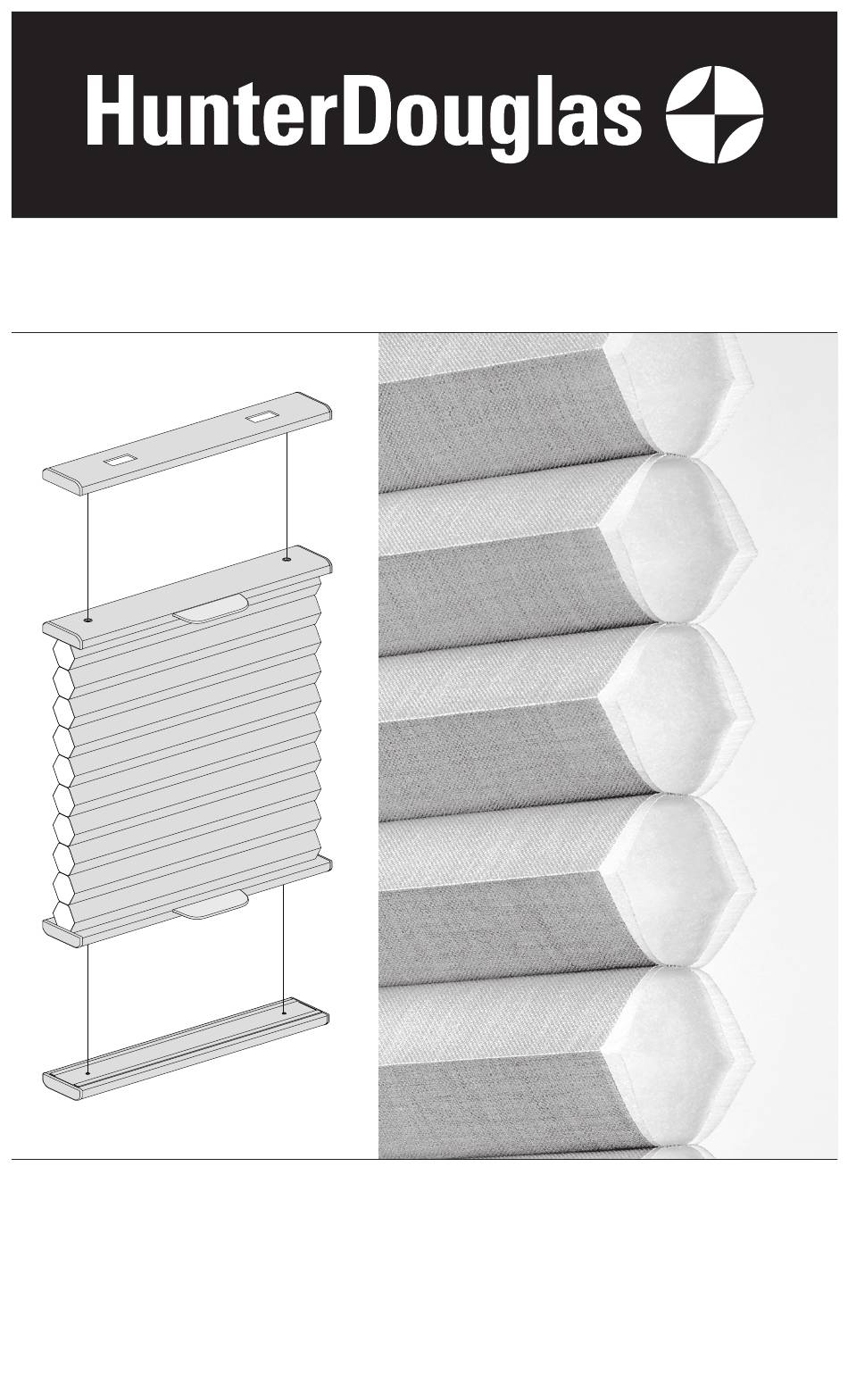

- Page 1 Installation Operation Care • • Duette and Applause ® ® Honeycomb Shades Cordless Sidelight Shades...
-
Page 2: Table Of Contents
Removing the Shade, If Necessary ........12 Cleaning Procedures ............12 WARRANTY ............Back Cover Questions? Call Hunter Douglas Consumer Support at 1-888-501-8364. © 2019 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or their respective owners. -
Page 3: Getting Started
GETTING STARTED Product View Specialty Brackets Headrail End Cap Top Moving Rail Bottom Moving Rail Bottom Rail Not Shown: Top-Down Specialty Brackets Bottom-Up Non-Operable Note: The installation procedures for operable and non-operable sidelights are the same. -
Page 4: Tools And Fasteners Needed
GETTING STARTED Thank you for purchasing Hunter Douglas Duette and Applause Honeycomb Shades. With ® ® proper installation, operation, and care, your new shade(s) will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation. -
Page 5: Installation
INSTALLATION Installation Overview Your order will include four specialty brackets per shade. ■ ■ Specialty Bracket Specialty brackets are required for both the headrail and the bottom rail. They are ■ ■ mounted at the top and bottom of the window opening. Mounting Types and Window Terminology If the specialty brackets are mounted correctly, the rest of the installation process follows easily. -
Page 6: Mount The Specialty Brackets - Inside Mount
INSTALLATION Mount the Specialty Brackets — Inside Mount Your order will include four specialty brackets. ■ ■ Specialty Bracket Bracket Template Tabs Double-sided Tape Bend the two tabs of the bracket templates downward and insert the tabs into the holes ■... -
Page 7: Mount The Specialty Brackets - Outside Mount
INSTALLATION Mark the screw holes. ■ ■ Carefully remove the templates from the mounting surfaces. ■ ■ Drill the screw holes using a ⁄ " drill bit. ■ ■ Attach the specialty brackets using the screws provided. ■ ■ IMPORTANT: The specialty brackets should be aligned and level with each other. Proceed to “Install the Shade”... - Page 8 INSTALLATION Center the specialty brackets on your marks, then mark each of the screw holes. ■ ■ A minimum flat vertical surface of ⁄ " is required to mount the brackets. ➤ ■ The top of the specialty brackets or extension brackets should be at the desired shade ➤...
- Page 9 INSTALLATION If using spacer blocks with specialty brackets, attach the spacer block(s) and specialty ■ ■ bracket to a flat vertical mounting surface with #6 mounting screws long enough for a secure installation. CAUTION: The rear spacer block must be flush against a flat mounting surface. Do not mount spacer blocks and specialty brackets on curved molding.
-
Page 10: Install The Shade
INSTALLATION Install the Shade Install the shade into the specialty brackets. Rubber Flap ■ ■ IMPORTANT: Install the headrail into the brackets first, then install the bottom rail. Rail Hold the rail at a high angle, then push the Headrail Bracket ■... -
Page 11: Check The Tension (For Operable Shades Only)
INSTALLATION Check the Tension (For Operable Shades Only) Slowly push down on the top moving rail handle a few inches. Allow the fabric to stack ■ ■ evenly, then stop. The top moving rail should remain steady and should not sag down. Slowly push up on the bottom moving rail handle a few inches. -
Page 12: Operation
OPERATION Operate the Shade For better support and smoother operation, use the handle when raising and lowering the shade. Top-Down or Bottom-Up Shades: To Raise or Lower the Moving Rail Slowly and steadily push up or down on the moving rail ■... -
Page 13: Troubleshooting
OPERATION Troubleshooting Problem The shade will not snap into the mounting brackets. Solution Check that the specialty brackets are level and aligned. Shim the specialty brackets to level the headrail, if necessary. Be sure the heads of the screws are flush against the specialty bracket. Check that the headrail is completely inserted into the specialty brackets. -
Page 14: Care
Front the rail out of the brackets. Rail Latch Cleaning Procedures Hunter Douglas Duette and Applause Honeycomb Shades are made of anti-static, ® ® dust-resistant fabric which repels dirt and dust. For most honeycomb fabrics, the following cleaning options are available. - Page 15 CARE Bathtub Cleaning/Water Immersion CAUTION: Do not immerse Alexa, Alexa Metallic , Calypso , Commercial, Elan , India ™ ™ ® Silk, all Batiste fabrics, all Alustra Duette fabrics, and all room-darkening fabrics. Do not ® ® immerse Applause Esprit fabrics.
- Page 16 2. Visit hunterdouglas.com for additional warranty information, frequently asked questions and access to service locations. 3. Contact Hunter Douglas at (888) 501-8364 for technical support, certain parts free of charge, for assistance in obtaining warranty service or for further explanation of our warranty.
