This manual MUST be given to the user of the product.
BEFORE using this product, read this manual and save for
future reference.
Invacare® Soft Tilt
en
Accessory for Invacare® Medley Ergo
User Manual .....................................................3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Medley Ergo Soft Tilt and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Invacare Medley Ergo Soft Tilt

Summary of Contents for Invacare Medley Ergo Soft Tilt

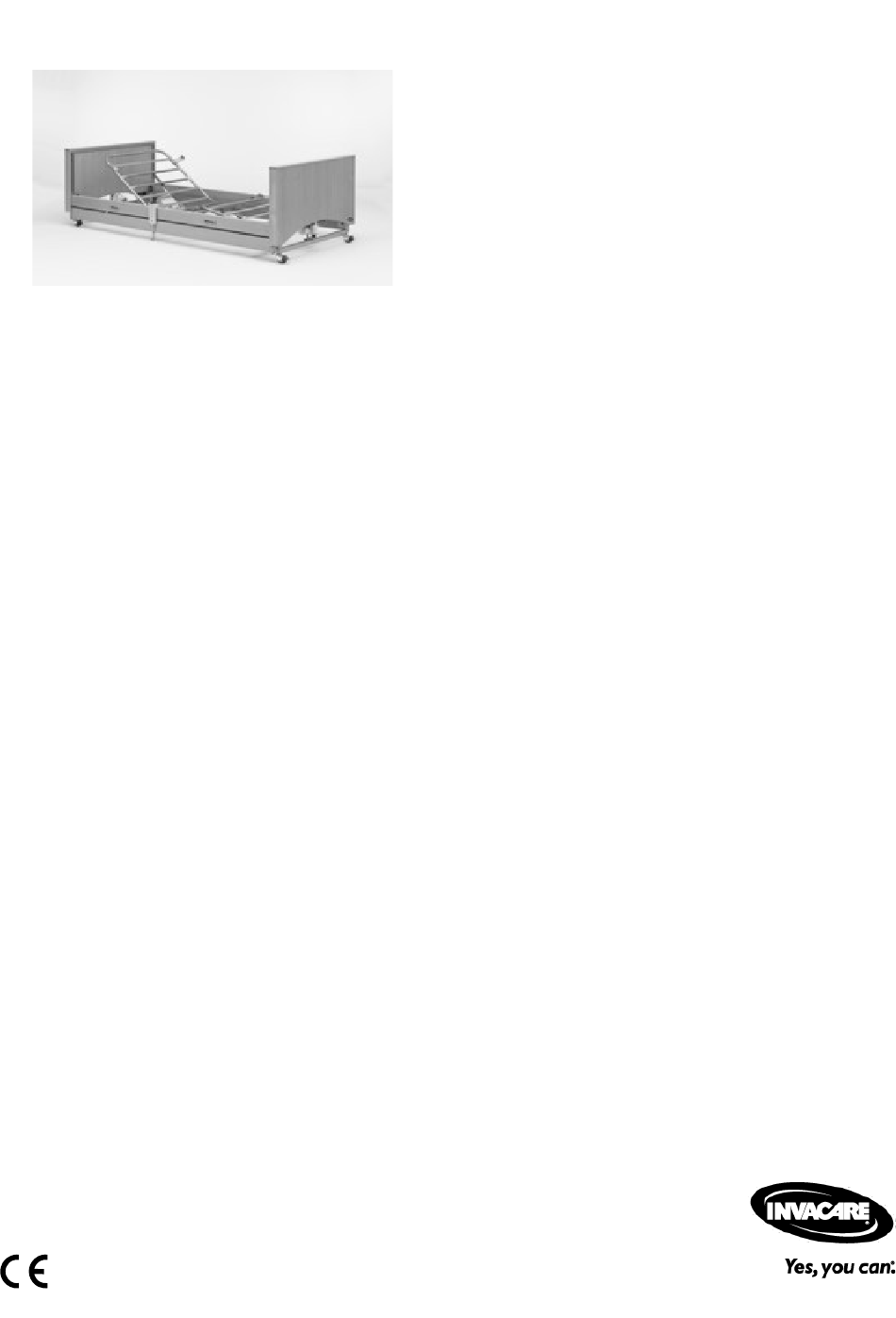

  • Page 1 Invacare® Soft Tilt Accessory for Invacare® Medley Ergo User Manual .............3 This manual MUST be given to the user of the product. BEFORE using this product, read this manual and save for future reference.
  • Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by TM and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.

  • Page 3: Table Of Contents

    Contents This manual MUST be given to the user of the product. BEFORE using this product, read this manual and save for future reference. 1 General ....................4 1.1 Introduction ..................4 1.1.1 Definitions ................. 4 1.2 Symbols in this document ..............4 1.3 Intended use ..................

  • Page 4: General

    Before reading this document, make sure you have the latest supported by care staff in combination with a technical aid version. You find the latest version as a PDF on the Invacare such as a rollator. website.

  • Page 5: Compliance

    Keep bed components and accessories at least 30 This Soft Tilt version is specially designed and must cm away from a heated surface and not in direct only be used in conjunction with 90 cm wide Invacare® sunlight. Medley Ergo beds.

  • Page 6: Labels And Symbols On The Product

    Invacare® Soft Tilt Electromagnetic interference Max. Safe Working Load WARNING! Risk of malfunction due to electromagnetic Type B Applied Part interference Electromagnetic interference between this product and other electrical equipment can occur and WEEE conform disturb the electrical adjustment functions of this product.

  • Page 7: Setup

    – This Soft Tilt version is specially designed and must only be used in conjunction with 90 cm wide Invacare® Medley Ergo beds. – Follow instructions carefully. If you have any question regarding the assembly, contact your local dealer or Invacare representative.
  • Page 8 Invacare® Soft Tilt Setup designated slots on the main module, place the fixation plate Place the two feet squeezing labels on the shield plate of the actu- from set  underneath of the bed onto the carriage-bolts to- ators on both sides of the bed.
  • Page 9 Setup Connect the cables of the right and left motor to the two extension cables from the control box. The right motor cable is marked on the cable clip corresponding to on the cable from the control box and the left motor cable is marked on the cable Ensure that the head arms is mounted on the telescopic bracket V clip corresponding to...

  • Page 10: Usage

    Invacare® Soft Tilt IMPORTANT! Control Box and Hand Control The Soft Tilt must not be used without the cover. Place and secure the mattress onto the Soft Tilt. a. Release the Velcro fastener of both straps on the side of the cover and fold them away to the side.

  • Page 11: Emergency Stop

    Usage Emergency Stop Display Note 0 = no activity MANUAL LED The numbers IMPORTANT! active on the display U01 = right wing moves up When the emergency stop is activated, the Reset represent the d01 = right wing moves down angle at which function can still be activated, by pressing button A, U01 = left wing moves up...

  • Page 12: Auto Program Sequence

    Invacare® Soft Tilt The hand control will not work when a program is Press and hold for 3 sec. R button, while an automatic pro- active. gram is running, the wings will move to the flat position. Now the manual mode can be used.

  • Page 13: Programming

    Programming 5 Programming WARNING! Risk of falling If the secondary wing stays elevated while the end- Individually defined programs user is resting in a side position, the distance to the top of the side rail is decreased. Program 1 and 2 can be individually defined by the care staff –...

  • Page 14: How To Program The Individual Automated Programs

    Invacare® Soft Tilt How to program the individual automated programs • P Set time / Start programming mode button • Q Set angle button • R Adjust button Plus (increase values for time and angle) • S Adjust button Minus (decrease values for time and angle)) •...
  • Page 15 Programming Step Function Display Note Press P1 or P2 The time value appears in the display & Left Press P1 or P2 Adjust the time between 000 and 180 minutes (0, 3, 10-180 in +/- 10 min. intervals) & Left Press None single *BEEP* = The time has now been set.

  • Page 16: Program Examples For Automated Pressure Relief

    Invacare® Soft Tilt • End user turning from one side to flat and back to the same Program examples for automated side, always laying on a slightly elevated wing. pressure relief – Angle primary wing = 13°-40° – Angle secondary wing = 1°-12°...

  • Page 17: Maintenance

    Maintenance Textiles 6 Maintenance See attached label on the textile cover for detailed washing instructions. General Maintenance Information Ensure that the foam support from foot end of the cover is taken out, before placing the cover in a washing machine. IMPORTANT! Service and maintenance of the Soft Tilt must be carried General Cleaning Method...

  • Page 18: After Use

    Invacare® Soft Tilt Be environmentally responsible and recycle this product through 7 After Use your recycling facility at its end of life. Disassemble the product and its components, so the different materials can be separated and recycled individually. Disposal The disposal and recycling of used products and packaging must comply with the laws and regulations for waste handling in each country.

  • Page 19: Troubleshooting

    Press the ON/OFF button to reset an ERROR and try again. Contact your dealer or Invacare representative if the above does not solve your problems. IVCMAMED221119...

  • Page 20: Programming Errors

    Invacare® Soft Tilt Programming Errors Error display for incorrect setup of values for Program 1 or 2 Error Display Acoustic Signal Comment Program 1 or 2 E40 for 4 sec. 2 beeps of 5 sec. ON and 1 Occurs when activating Program 1 or 2 with incorrect time values set.

  • Page 21: Technical Data

    Technical Data 9 Technical Data – End-user laying on a elevated wing Allowed mattress heights, when the end-user is laying on a up to 12° elevated wing (secondary wing = 1–12°). Characteristics Side rail Matteress Automatic Operation height Max. angle in Manual mode 80°...
  • Page 22 Invacare® Soft Tilt * IPX6 classification means that the electrical system is protected Battery type: LP 12-0.8 (12 V 0.8AH) Sealed Lead-acid Battery against water projected from any direction (not high pressure). ** IP66 classification means that the electrical system is protected...

  • Page 23: Electromagnetic Compatibility (Emc)

    Electromagnetic compatibility (EMC) 10 Electromagnetic compatibility (EMC) 10.1 General EMC information Medical Electrical Equipment needs to be installed and used according to the EMC information in this manual. This product has been tested and found to comply with EMC limits specified by IEC/EN 60601-1-2 for Class B equipment. Portable and mobile RF communications equipment can affect the operation of this product.
  • Page 24 Invacare® Soft Tilt Immunity test Test / Compliance level Electromagnetic environment – guidance < 0% U for 0,5 cycle at Voltage dips, short 45° steps Mains power quality should be that of a typical commercial or hospital environment. interruptions and...
  • Page 25 Electromagnetic compatibility (EMC) Test Frequency Band (MHz) Service Modulation Maximum Distance (m) Immunity test level (MHz) power (W) (V/m) GSM 1800; CDMA 1900; 1720 Pulse GSM 1900; 1845 1700 - 1990 modulation DECT; LTE Band 1970 217 Hz 1, 3, 4, 25; UMTS Bluetooth, WLAN, 802.11...
  • Page 26 Notes...
  • Page 27 Invacare sales companies Danmark: Sverige: Suomi: Nederland: Invacare A/S Invacare AB Camp Mobility Invacare BV Sdr. Ringvej 37 Fagerstagatan 9 Patamäenkatu 5, 33900 Galvanistraat 14-3 DK-2605 Brøndby S-163 53 Spånga Tampere NL-6716 AE Ede Tel: (45) (0)36 90 00 00...
