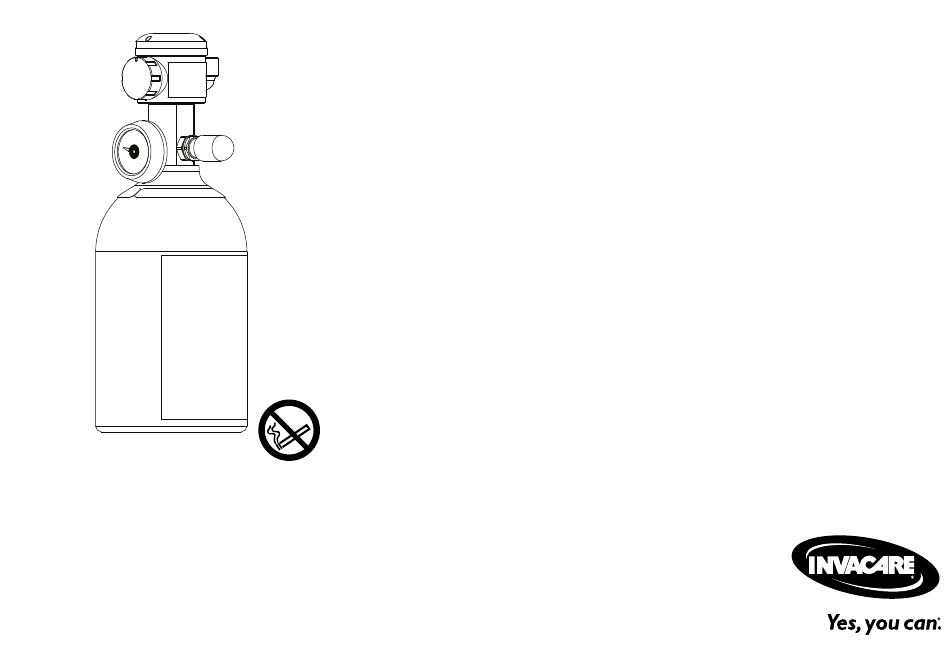

- Page 1 Invacare® ML4, ML6, M9 Cylinder With Conserver For HomeFill® Oxygen System en HF2ICL4, HF2ICL6, HF2IC9 User Manual This manual MUST be given to the user of the product. BEFORE using this product, read this manual and save for future reference.
- Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
-
Page 3: Table Of Contents
5.6 Storage ........21 Contents 5.7 Optional Accessories . -
Page 4: General
Invacare® ML4, ML6, M9 Cylinder With Conserver 1 General Read the manual 1.1 Symbols No open flame Signal words are used in this manual and apply to hazards or unsafe practices which could result in personal injury or property damage. -
Page 5: Intended Use
General 1.2 Intended Use intended to be used by or under adult supervision only after reading and understanding the instructions and warnings of this user manual. This cylinder assembly is intended to store, regulate, and deliver supplemental oxygen to patients who may have difficulty extracting Only personnel instructed and trained in the use of the HomeFill®... -
Page 6: Limited Warranty
Do not return products to our factory without from Invacare or a dealer, with a copy of the seller’s invoice required prior consent. C.O.D. shipments will be refused; please prepay for coverage under this warranty. - Page 7 THE TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER. SOME STATES DO NOT ALLOW THE EXCLUSION OR...
-
Page 8: Component Identification
Invacare® ML4, ML6, M9 Cylinder With Conserver 1.6 Component Identification Item Description Cylinder Assembly Cylinder Conserver Outlet Connection Flow Dial Cylinder Gauge Cylinder Fillport Cylinder Gauge Needle Cylinder Fillport Cover (not shown for clarity) 1167432-B-00... -
Page 9: Safety
Safety 2 Safety 2.1 Label Locations Serial number located above product label shown here. 1167432-B-00... -
Page 10: General Guidelines
– If you are unable to understand the warnings, cautions professional users. or instructions, contact a healthcare professional, – This cylinder is to be used with the Invacare HomeFill dealer or technical personnel before attempting to oxygen system. This cylinder contains 93±3% oxygen use this equipment. - Page 11 If you use these types of cigarettes or other sources of ignition out of the room products Invacare suggests you wash your hands prior in which this cylinder is located and away from where to using the HomeFill system. If the cylinder fillport oxygen is being delivered.
- Page 12 Invacare® ML4, ML6, M9 Cylinder With Conserver DANGER! WARNING! Risk of Fire Risk of Injury or Death Dirt or contaminants on the cylinder assembly or Contaminants in the oxygen may cause injury or death. conserver can cause fire, injury or death.
- Page 13 To avoid injury or accessories may vary by manufacturer. Invacare accessories death: such as the cylinder bag and Invacare oxygen tubing are latex – The cannula MUST be routed and secured properly. and phthalate free. Refer to the packaging on any cylinder –...
- Page 14 Invacare® ML4, ML6, M9 Cylinder With Conserver The cylinder assembly MUST be emptied of gas prior to shipping by courier or postal service. Refer to Emptying the Cylinder Assembly. Because the cylinder contains magnetic, ferrous material, it is not suitable to be in an MRI room.
-
Page 15: Setup
Refer to The Hydrostatic use only. Not to be filled for resale or use by Testing Date section. professional users. – Filling of cylinder assemblies is performed by Invacare WARNING! HomeFill Oxygen System only. Risk of Injury –... -
Page 16: The Hydrostatic Testing Date
Invacare® ML4, ML6, M9 Cylinder With Conserver DANGER! WARNING! Risk of Injury or Death Risk of Injury Improper filling or abuse of this cylinder assembly, or To reduce the risk of injury: failure to follow these safety instructions may cause –... -
Page 17: Usage
– All cylinders MUST be inspected before attempting to fill. – If the cylinder is found to be defective or does not work properly, contact an Invacare dealer or qualified technician for service or replacement. Before filling a cylinder assembly, read and follow the information in Cylinder Prefill Inspection and External Examination. - Page 18 Invacare® ML4, ML6, M9 Cylinder With Conserver Position the cylinder assembly A so the outlet connection D is DANGER! pointing away from the user and any other person(s). Risk of Injury or Death The cannula can cause tripping, falling, or other WARNING! injury if improperly positioned and secured.
-
Page 19: Maintenance
The conserver should be inspected and tested at a minimum every 5 years. This inspection and test MUST be performed by Invacare DANGER! Corporation or by an Invacare approved repair center. Risk of Fire... -
Page 20: Cleaning
Invacare® ML4, ML6, M9 Cylinder With Conserver Examine the cylinder gauge F until the pressure is below 500 CAUTION! psig (3447 kPa). Risk of Damage – DO NOT completely empty the cylinder. Otherwise, Cylinder pressure is below 500 psig (3447 kPa) when damage to the cylinder could occur. -
Page 21: Reuse
Maintenance 5.6 Storage This procedure is for disinfecting the cylinder assembly and is to be performed by the provider prior to a patient change and as otherwise required. Recommended disinfectant products: • Quaternary ammonium based wipes selected by the provider for the desired disinfecting characteristics •... -
Page 22: Optional Accessories
Invacare® ML4, ML6, M9 Cylinder With Conserver 5.7 Optional Accessories WARNING! Risk of Injury or Damage Use of non-Invacare accessories may result in serious injury or damage. – Invacare products are specifically designed and manufactured for use in conjunction with Invacare accessories. -
Page 23: After Use
6.2 Wear and Tear Invacare reserves the right to ask for any item back that has an alleged defect in workmanship. See Warranty that shipped with the product for specific warranty information. -
Page 24: Troubleshooting
Invacare® ML4, ML6, M9 Cylinder With Conserver 7 Troubleshooting 7.1 Troubleshooting If the Conserving Cylinder fails to function, consult the Troubleshooting guide. If problem cannot be corrected, consult your Dealer/Home Care equipment provider. Problem Possible Cause Solution No flow. Flow dial at setting “Off”. -
Page 25: Technical Data
The cylinder assembly Assembly Dimensions is filled with USP 93±3% oxygen using its proprietary fill port that allows filling only through the use of an Invacare HomeFill System. Model: HF2ICL4 The duration of oxygen flow between fills is dependent on the size of Overall Length: 9.4 in (23.9 cm) - Page 26 Invacare® ML4, ML6, M9 Cylinder With Conserver Cylinders Accessories Cylinder Size: Single Lumen Cannula 4’ (1.21 m) recommended. 7’ (2.1 m) tubing length maximum Volume (H 0.67 L (0.024 ft Carry Bag HF2PCL6BAG, HF2PC9BAG, Oxygen Capacity: 113 L (4 ft HF2PCL4BAG —...
- Page 27 Notes...
- Page 28 Invacare Corporation Manufacturer Invacare Corp. 2101 E. Lake Mary Blvd. One Invacare Way Sanford, FL 32773 Elyria, Ohio USA Tel: 407–321–5630 44036–2125 440–329–6000 800–333–6900 Technical Services 440–329–6593 800–832–4707 www.invacare.com 1167432-B-00 2016-02-10 Making Life’s Experiences Possible™ *1167432B-00*...
