Equipment Description; Approval Basis Faa Tso; Limitations - PS Engineering PAC45D System Installation And Operation Manual

Model
number
PAC45D Op- For installs that are not replacing "third
tional Install party" audio controllers, includes 50 & 37
Kit pin connectors/hardware.
Label45 Customizable bezel label program
*The exact CTL45 part number depends upon the nomenclature applied to the
bezel label. Consult PS Engineering for specific LRU part number.
1.3

EQUIPMENT DESCRIPTION

The PAC45D is a state-of-the-art audio isolation amplifier and audio selector that contains an au-
tomatic voice activated (VOX) intercom system. It can switch six transceivers (Com 1 - 6) and six
receivers (Nav 1, Nav 2, MKR, and three additional inputs that can be individually labeled, for
use with ADF, DME, AUX, etc.).
There are four unswitched inputs, available for traffic or EGPWS, autopilot disconnect, and/or
radar altimeter warning.
A wired input is available for Satellite or Cellular telephone.
In addition, three alerts can be triggered by external sources to provide additional capability.
The individual volume controls select the receiver audio source provided to the headphones
when selected.
An eight-station voice activated (VOX) intercom is included in the PAC45D. This system has PS
Engineering's patented IntelliVOX® circuitry that eliminates manual adjustments. The intercom
system incorporates pilot isolate, all and crew modes, a stereo music input with "SoftMute™".
In the PAC45D, a Bluetooth® wireless interface is available for wireless telephone and music
connection.

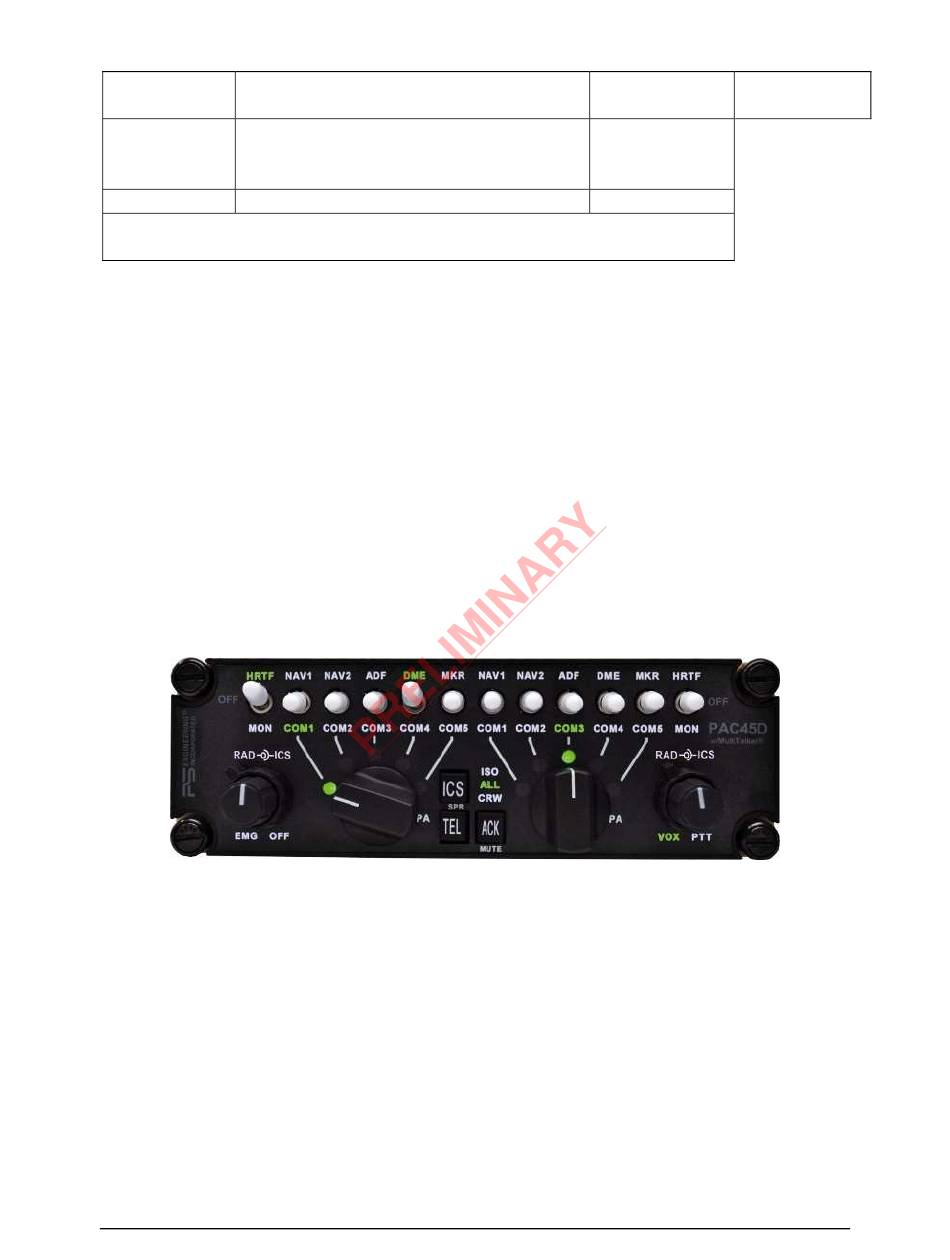

Figure 1-1 CTL45D
1.4

APPROVAL BASIS FAA TSO

FAA TSO The PAC45D-series Audio Selector Panels is FAA authorized under TSO C139A (Audio
Amplifiers). ED-14C/DO-160G (Environmental Conditions and Test Procedures for Airborne Equip-
ment), ED12B/DO-178C, Level D (Software Considerations for Airborne Equipment) and ED-
18/DO-214A (Audio Systems Characteristics and Minimum Operational Performance Standards
for Aircraft Audio Systems).

1.1.2 Limitations

This article meets the minimum performance and quality control standards required by a tech-
nical standard order (TSO). Installation of this article requires separate approval.
Refer to Advisory Circular 20-41A for information on TSO installation approval.
Operation is subject to the following conditions:
200-045-0100
PS Engineering
PAC45 Audio Selector Panel and Intercom System
Installation and Operator's Manual
Description
Page 1-2
PS Engineering NVIS Compatible
Part Number
Part Number
250-945-0500
575-045-XXXX
January 2020
