Page 1: User Manual
Kramer Electronics, Ltd. Preliminary USER MANUAL Models: VM-3AN, 1:3 Audio DA VM-3SN, 1:3 s-Video DA VM-3VN, 1:3 Video DA... -
Page 2: Table Of Contents
Figures Figure 1: VM-3AN Audio DA Figure 2: VM-3SN s-Video DA Figure 3: VM-3VN Video DA Figure 4: Connecting the VM-3AN Audio Distributor Figure 5: Connecting the VM-3SN s-Video Distributor Figure 6: Connecting the VM-3VN Video Distributor Tables Table 1: VM-3AN Audio DA Features... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... - Page 4 Getting Started KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 5: Overview

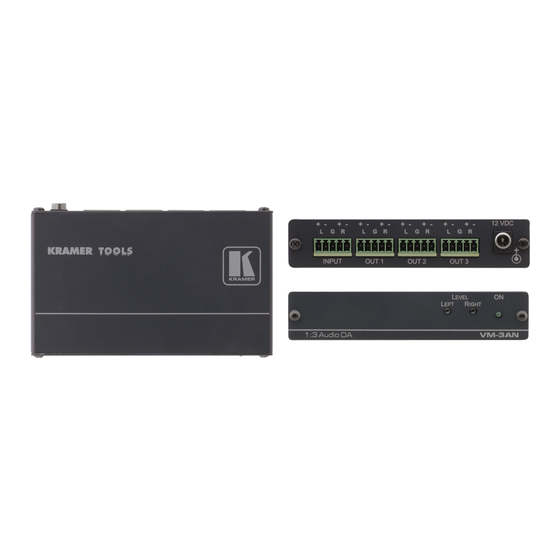

Recommendations for achieving the best performance, see section 3.4 VM-3AN Audio DA The VM-3AN is a high-quality 1:3 balanced stereo audio distribution amplifier. It accepts one balanced stereo input on a removable terminal block and distributes the signal to three identical outputs on removable terminal blocks. -
Page 6: Achieving The Best Performance
This section defines your: VM-3AN Audio DA, see section 4.1 VM-3SN s-Video DA, see section 4.2 VM-3VN Video DA, see section 4.3 1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com 2 For example, part number 2535-000251 KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 7: Your Vm-3An Audio Da
Your Distribution Amplifier Your VM-3AN Audio DA Figure 1 and Table 1 define the VM-3AN: Figure 1: VM-3AN Audio DA Table 1: VM-3AN Audio DA Features Feature Function INPUT Detachable Terminal Block Connector Connects to the balanced audio source OUT Detachable Terminal Block Connector... -
Page 8: Your Vm-3Sn S-Video Da
Y LEVEL Trimmer Adjusts the luminance output signal level for the s-Video output ON LED Illuminates when receiving power 1 Insert a screwdriver into the small hole and carefully rotate it, trimming the appropriate output level KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Your Vm-3Vn Video Da
Illuminates when receiving power Connecting Your Distribution Amplifier This section explains how to connect your: VM-3AN Audio DA, see section 5.1 VM-3SN s-Video DA, see section 5.2 VM-3VN Video DA, see section 5.3 1 Insert a screwdriver into the small hole and carefully rotate it, trimming the appropriate output level... -
Page 10: Connecting Your Vm-3An Audio Da
Figure 4: Connecting the VM-3AN Audio Distributor 1 Switch OFF the power on each device before connecting it to your VM-3AN. After connecting your VM-3AN, switch on its power and then switch on the power on each device... -
Page 11: Connecting Your Vm-3Sn S-Video Da
Connecting Your Distribution Amplifier Connecting Your VM-3SN s-Video DA the VM-3SN, as illustrated in the example in Figure 5, do the To connect following: 1. Connect the s-Video source (for example, an s-Video player) to the INPUT 4-pin connector. 2. Terminate the input by ensuring that the TERM switch is pressed to the IN position. -
Page 12: Connecting Your Vm-3Vn Video Da
1 Switch OFF the power on each device before connecting it to your VM-3VN. After connecting your VM-3VN, switch on its power and then switch on the power on each device 2 You do not have to connect all the outputs KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 13: Technical Specifications
Technical Specifications Technical Specifications Table 4 includes the technical specifications. Table 4: VM-3AN Audio Distributor Technical Specifications VM-3AN VM-3SN VM-3VN INPUT: 1 balanced audio stereo 1 YC on a 4-pin 1 composite video on a on 5-pin terminal blocks connector... - Page 14 KRAMER: SIMPLE CREATIVE TECHNOLOGY...
- Page 15 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
