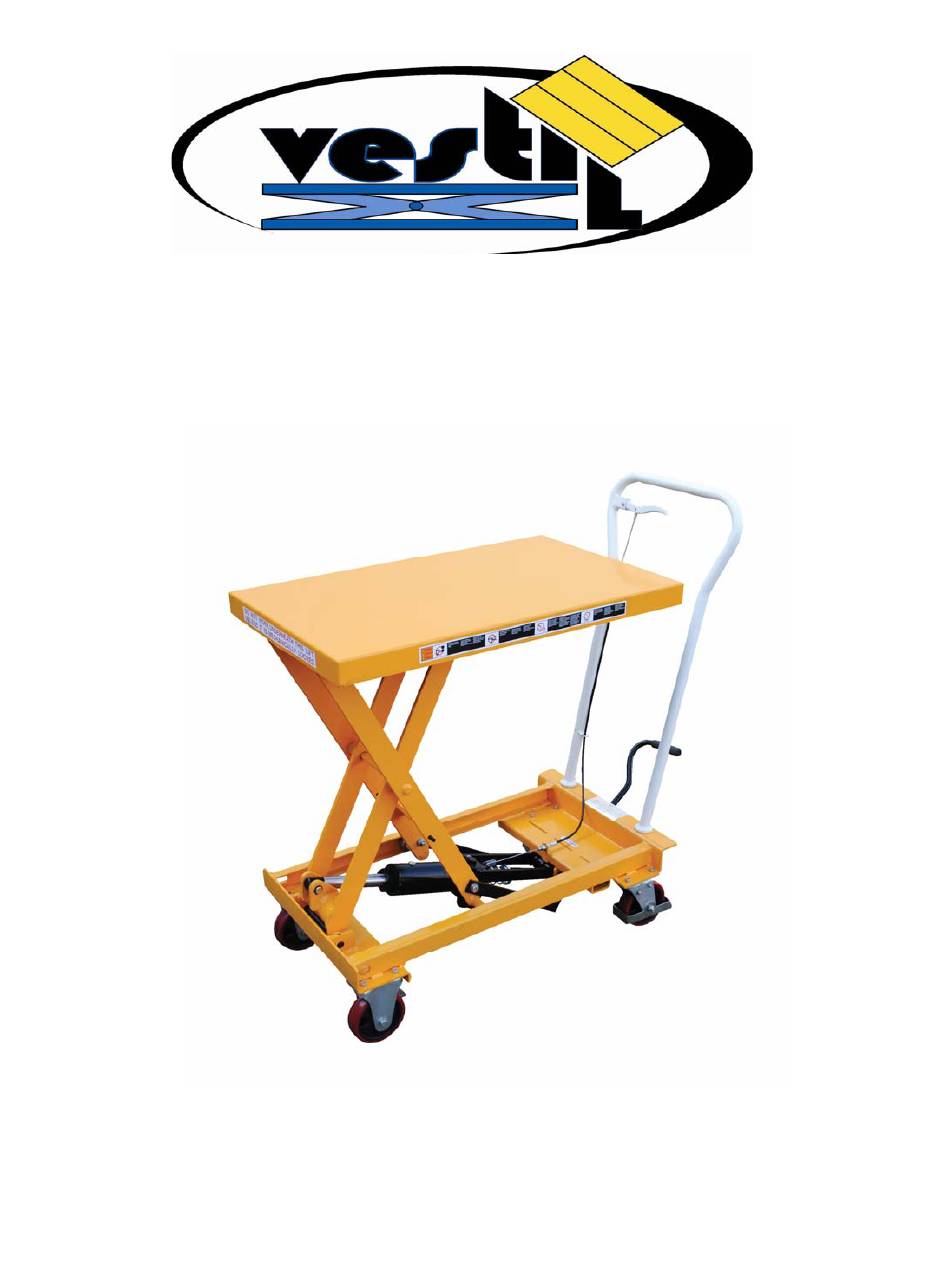

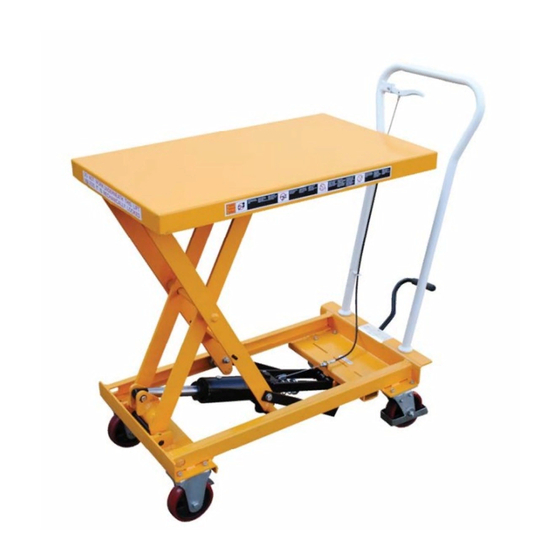

- Page 1 Instruction Manual For Auto Shift Hydraulic Lift Table Model Number: CART-550-AS Note: Owner/Operator must read and understand this Instruction Manual before operating the lift & tilt table.
-
Page 2: Table Of Contents
Contents WARNING CAUTION NAME OF PARTS HOW TO ASSEMBLE DAILY INSPECTION OPERATING LIFTTABLE SERVICE INSTRUCTION HYDRAULIC CIRCULT SPARE PARTS LIST TROUBLES SHOOTING... -
Page 3: Warning
Operation and Service Manual READ THIS MANUAL CAREFULLY AND BE SURE TO UNDERSTAND ALL THE INSTRUCTIONS BEFORE OPERATING THE LIFT TABLE. KEEP THIS MANUAL ON FILE FOR FUTURE REFERENCE AND IF LOST, PLEASE CONTACT YOUR LOCAL SUPPLIER FOR A NEW COPY. IF THE WARNING/CAUTION DECAL ON THE UNIT IS WORN, TORN OR LOST, PLEASE CONTACT YOUR LOCAL SUPPLIER FOR A NEW DECAL. -
Page 4: Name Of Parts
3. NAME OF PARTS 4. Assembly Instructions Ensure that the “Lift Table” is sufficiently secured before beginning to assemble. A spanner tool and caliper are required when assembling the lift table. Clamping tools, such as monkey wrenches can also be used. Locate these parts for assembly Correctly assembled 4.1 Secure the handle on the chassis using two bolts as well as the flat washers and spring washer. -
Page 5: How To Assemble
4.2 Foot pedal assembly 1) Place the foot pedal into the chassis pipe 2) Tighten the bolts 4.3 Lift the platform and place two support bars that will secure and hold the chassis steady. 4.4. To attach the release handle: 4.4.1 Connect the chain to the bottom of the pump. - Page 6 Using two washers, put the bolt into the middle of thread groove and then tighten the nut. 4.4.3 Clip the chain on the handle. 4.4.4. Once assembled, the lift table will activate, lift and lower easily when the lift handle is released. If the table will not lower, please adjust using steps a) or b) a) Loosen the up and down nuts, pull the release wire up for a snug fit, and then tighten the nuts until the table lowers smoothly.
-
Page 7: Daily Inspection
smoothly. 5. DAILY INSPECTION Daily inspection is a good means to find any possible malfunction or fault with the lift table. Check the lift table on the following points before operation. CAUTION DO NOT use the lift table if any malfunction or fault is detected. (1) Check for scratches, bending or cracking on the lift table. -
Page 8: Service Instruction
6-2. Lifting the table WARNING 1. DO NOT overload the lift table; ensure the load is within its rated capacity. 2. All loads must be distributed evenly on at least 80% of the table area. DO NOT set loads to the side or ends of the lift table surface. -
Page 9: Spare Parts List
9. LIFT TABLE SPARE PARTS LIST... - Page 10 LIFT TABLE SPARE PARTS LIST DESCRIPTION QTY NO DESCRIPTION DESCRIPTION Seal cover d35×D43.5×5 Reflux rod Safety rod Cylinder cover O-ring d4×1.8 Spring washer 10 O-ring d75×3.55 Guide casing Nut M10 O-ring d35.5×3.55 Protect casing External scissors lever Piston Rod Lever Bushing Spacing casing Lever bushing...
-
Page 11: Troubles Shooting
10. TROUBLES SHOOTING TROUBLE CAUSE ACTION The table does not -Not enough hydraulic oil. -Add more oil. lift maximum height. The table does not -Not enough hydraulic oil. -Pour in more filtered oil. lift up. -The oil has impurities. -Change the oil. -Discharge valve -Adjust the setting nut... -
Page 12: Wheel
(you) for warranty service. Who may request service? Only a warrantee may request service. You are a warrantee if you purchased the product from Vestil or from an authorized distributor AND Vestil has been fully paid.
