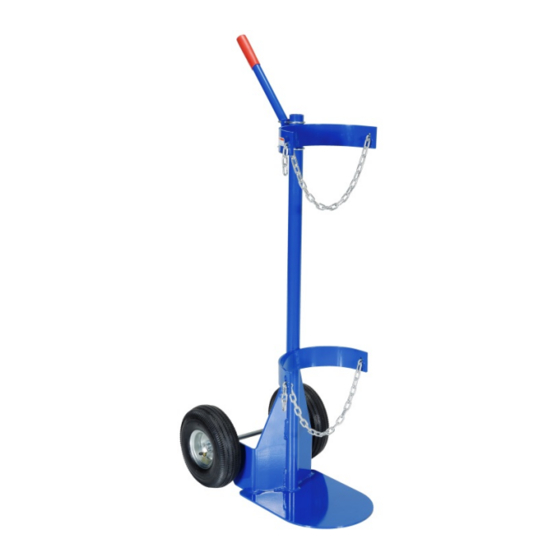

CYL-D-1-PN & CYL-D-1-HR Cylinder Dollies
Receiving instructions:
After delivery, remove the packaging from the product. Inspect the product closely to determine
whether it sustained damage during transport. If damage is discovered, record a complete
description of it on the bill of lading. If the product is undamaged, discard the packaging.
NOTE:
The end-user is solely responsible for confirming that product design, installation, use, and
maintenance comply with laws, regulations, codes, and mandatory standards applied where the
product is used.
Signal Words.................................................................................................................... 2
Hazards of Improper Use..................................................................................................... 2
CYL-D-1-PN & CYL-D-1-HR Specifications and Exploded Parts Diagram & Bill of Materials............... 3
Using the Dolly.................................................................................................................. 5
Inspections & Maintenance.................................................................................................. 5
Labeling Diagram............................................................................................................... 5
Limited Warranty............................................................................................................... 6
Rev. 2/21/2018
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Web:
Instruction Manual
CYL-D-1-PN
Table of Contents
Copyright 2018 Vestil Manufacturing Corp.
Vestil Manufacturing Corp.
Fax: (260) 665-1339
www.vestilmfg.com
CYL-D-1-HR
CYL-D-1, MANUAL
e-mail:
info@vestil.com
Page 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vestil CYL-D-1-PN
Summary of Contents for Vestil CYL-D-1-PN
- Page 1 Table of Contents Signal Words……………………………………………………………..……………………………………... 2 Hazards of Improper Use…………..…………………………………………………………………..………. 2 CYL-D-1-PN & CYL-D-1-HR Specifications and Exploded Parts Diagram & Bill of Materials….... 3 CYL-DLX-1-PN & CYL-DLX-1-HR Specifications and Exploded Parts Diagram & Bill of Materials..4 Using the Dolly…………….…………………………………………………………………………………….. 5 Inspections &...
- Page 2 Hazards of Improper Use: Vestil strives to identify all foreseeable hazards associated with the use of this product. However, no manual can address every conceivable risk. Ultimately, the most effective way to avoid injury when using this device is to exercise good judgment and to always apply the following warnings.
- Page 3 Rev. 2/21/2018 CYL-D-1, MANUAL CYL-D-1-PN & CYL-D-1-HR Exploded Parts Diagram & Bill of Materials Model Net weight Capacity ” ” ” ” ” 55 lb. 500 lb. CYL-D-1-PN 8.9 cm 42.2 cm 137.4 cm 63.7 cm 26.0cm 25 kg 227.3 kg ”...
- Page 4 16-514-131 attachment 16-132-009 PP-4/1.25-W Flat washer, low carbon, USS, 33008 zinc plated, ” Wheel: 16-132-276 CYL-D-1-PN: 10” x 3 ” pneumatic, for ” axle 16-132-310 CYL-D-1-HR: 10” x 2 ” hard rubber, 16mm steel hub 99-145-031 ” chain 24” long...
- Page 5 The dolly should always be labeled as shown below. Replace any label that is missing or becomes difficult to read (e.g. faded; damaged). Labels and label locations are subject to change without notice. A: Label 287 B: Label 286 C: Label 658 Copyright 2018 Vestil Manufacturing Corp. Page 5 of 6...
