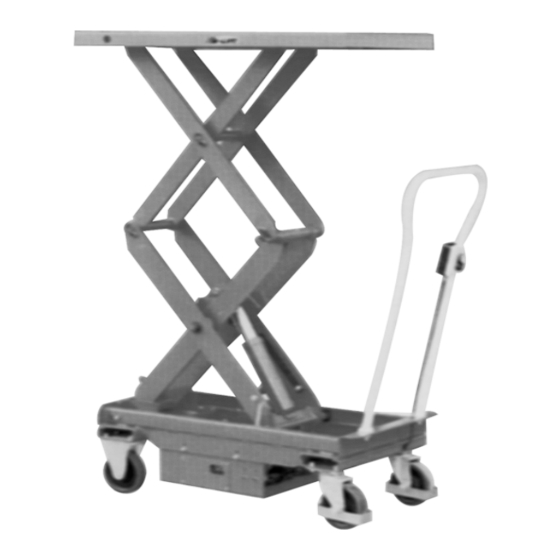

- Page 1 Instruction Manual ELECTRIC SCISSOR LIFT TABLE CART-1000D-DC Model: Vestil Manufacturing Corp. 2999 North Wayne St., Angola, IN 46703 Ph: 260-665-7586 . Fax: 260-665-1339 E-mail: Sales@vestil.com Website: www.vestil.com...
-
Page 2: Property Damage
ELECTRIC LIFT TABLE Model CART-1000D-DC Instruction Manual READ THIS OPERATION MANUAL COMPLETELY BEFORE USING.THOROUGHLY UNDERSTAND AND FOLLOW ALL SAFETY INSTRUCTIONS.IF THIS IS LOST, PLEASE CONTACT YOUR LOCAL SUPPLIER FOR A NEW COPY.IF THE WARNING/CAUTION DECAL ON THE UNIT IS LOST, PLEASE CONTACT YOUR LOCAL SUPPLIER FOR A NEW COPY. -
Page 3: Daily Inspection

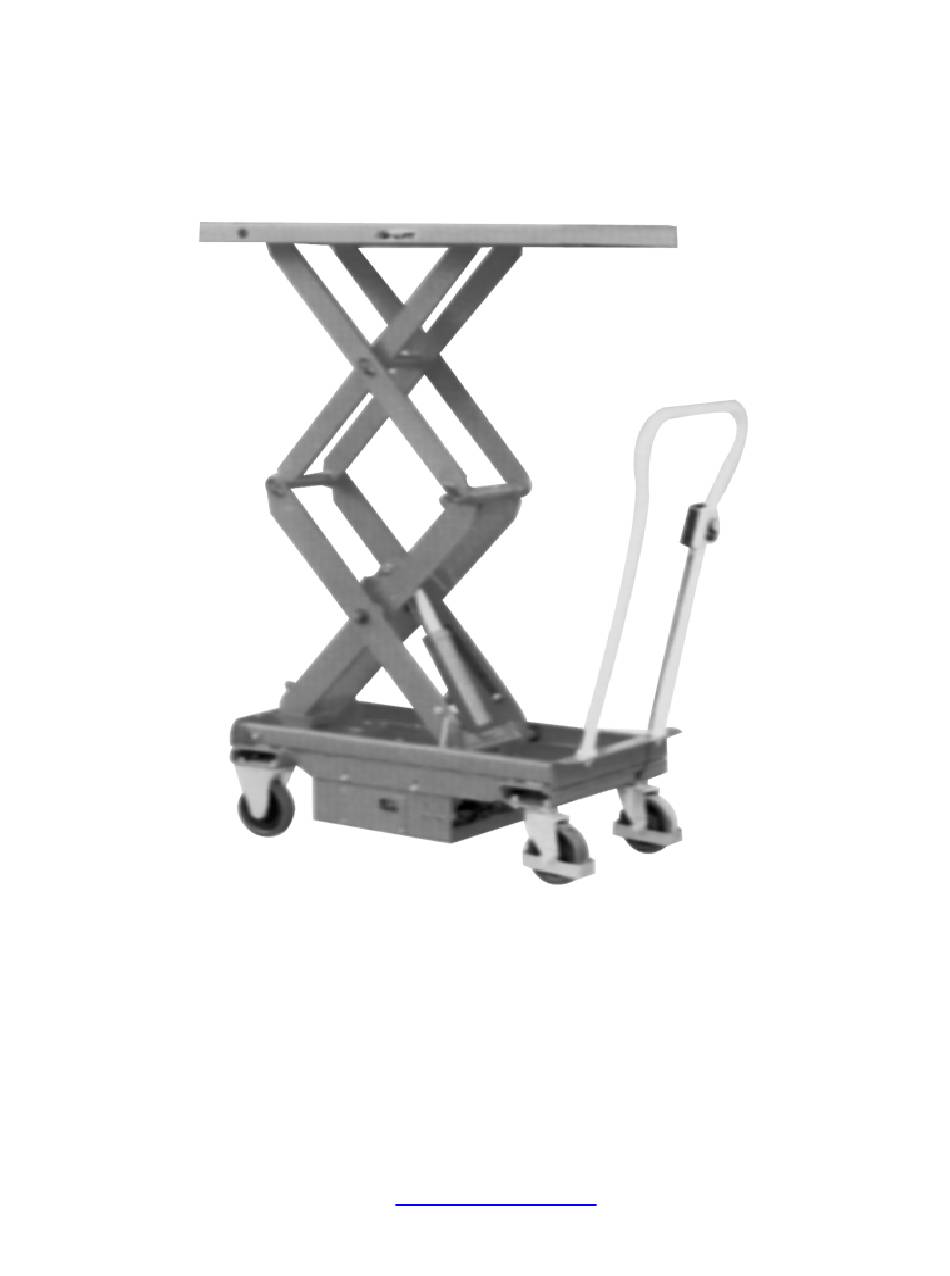

(3) Check if there is oil leakage. (4) Check vertical creep of table. (5) Check the function of brake. (6) Check if all the bolts and nuts are tightened firmly. 4. NAME OF PARTS CART-1000D-DC 1.Handle 4.Platform 2.Switch 5. Link 3.Brake Pedal... -
Page 4: Operating Lift Table
5. OPERATING LIFT TABLE How to use the brake. CAUTION Brake lift table when not moving it in order to prevent sudden movement. The brake is equipped with the swivel caster on the right side. (1) Brake the wheel, press the brake pedal. (2) Releasing the brake, lift up the brake pedal. -
Page 5: Charging The Battery
9.CHARGING THE BATTERY Warning! Working with or near lead acid batteries is dangerous. Batteries contain sulfuric acid and produce explosive gases. A battery explosion could result in loss of eyesight or serious burns. Do not smoke or allow a spark or flame near batteries. Charge batteries in locations which are clean, dry, and well-ventilated. Do not lay tools or anything metallic on top of any battery. -
Page 6: Regular Inspection
10.REGULAR INSPECTION Perform the regular inspection for the safety operation (1) Check the items expressed in daily inspection (daily) (2) Grease roller guides & grease zerks every month Roller Guides Grease Zerks (3) Lubricate wheel axles every 6 months (4) Replace the hydraulic oil. (Every 12 months) Do not use brake fluid or jack oil in the hydraulic system. -
Page 7: Specifications
12. SPECIFICATIONS Model CART-1000D-DC Capacity (lbs) 1,000 Table (in) 20 ½ × 39 ¾ Min. table height (in) 19 ½ Max. Table height (in) 63 11/16 Lifting stroke (in) 44 ¼ Motor (KW) 3 times of table moving Work cycle of hydraulic power pack up-down per 10 min. - Page 8 LIFT TABLE SPARE PARTS LIST CART-1000-D-DC DESCRIPTION QTY NO DESCRIPTION Seal cover φ60×φ68×6.5 Charger Y-ringφ60×φ70×6 Washer 5 Cylinder cover Screw M5×10 Retainer ring Screw M5×20 O-ring φ65×2.65 Fuse Piston rod Spring washer 5 Bushing Nut M5 Bushing Screw M5×16...
- Page 9 Pin axle Fuse Snap ring 60 Screw M4×16 Cylinder Nut M8 Prevent burst valve Washer 8 Spring Screw M10×16 Seal ring 18 Spring washer 10 Prevent burst joint Washer 10 Seal ring 14 Switch High pressure hose Battery case weldment Joint Covering plate Split Pin...
- Page 10 Screw M10×25 101 Pin axle for table Front wheel 102 Bushing Chassis 103 Oil cup Screw M6x8 104 Screw M6×16 Table 105 Cable Roller for table 106 Cable velcro strap...
Need help?
Do you have a question about the CART-1000D-DC and is the answer not in the manual?
Questions and answers

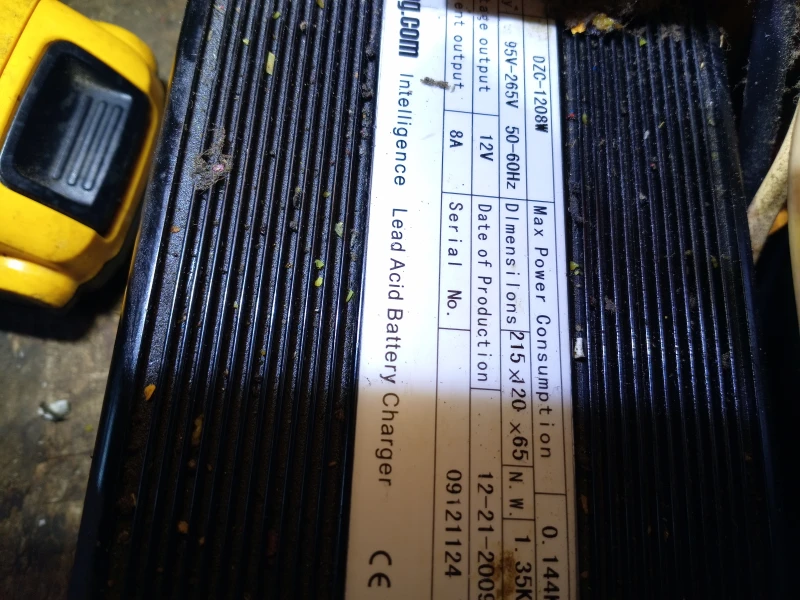

I bought a used unit at auction and need to replace charger. What is model number of charger you use, can't find old # DZC-1208w
