Customer Service: 800-367-2810
Online: www.ballarddesigns.com

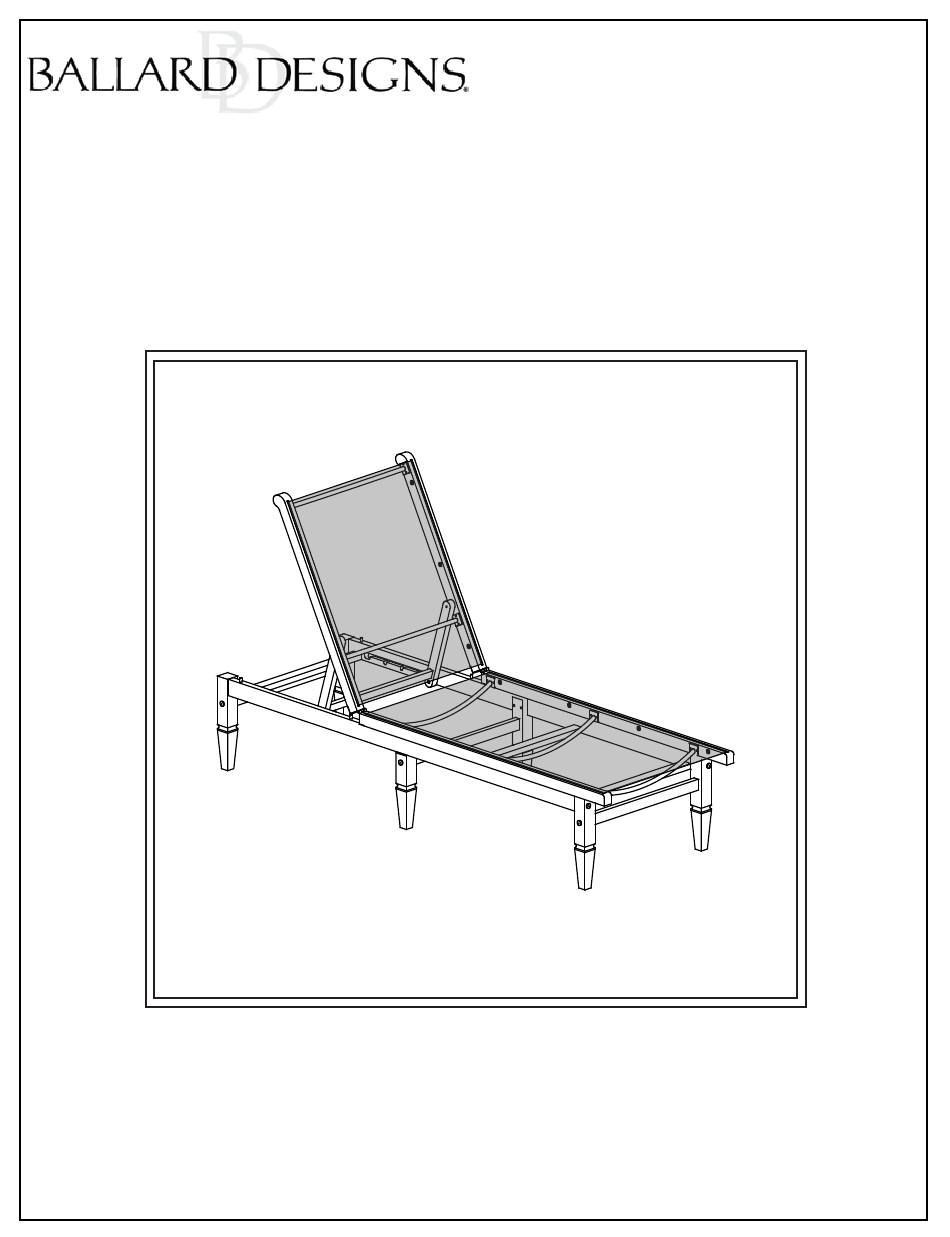

PRODUCT NAME: Madison Poolside Chaise
ITEM NUMBER: JC152
DIMENSIONS OF ITEM ASSEMBLED: 42 1/2"H x 24 3/4"W X 79"L
PRODUCTS ARE NOT INTENDED
FOR COMMERCIAL USE.
MADE IN VIETNAM
UPDATED: 4/11/2019
Page 1 of 5
Advertisement
Related Manuals for Ballard Designs Madison Poolside Chaise JC152
Summary of Contents for Ballard Designs Madison Poolside Chaise JC152
- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Madison Poolside Chaise ITEM NUMBER: JC152 DIMENSIONS OF ITEM ASSEMBLED: 42 1/2”H x 24 3/4”W X 79”L PRODUCTS ARE NOT INTENDED FOR COMMERCIAL USE. MADE IN VIETNAM UPDATED: 4/11/2019 Page 1 of 5...
-
Page 2: Tools Needed
Ltr. Qty. Hardware Included Allen Screws 40mm Allen Bolts TOOLS NEEDED: Assembly requires 1 or 25mm Allen Bolts more people. Nuts Screw Plugs Allen Wrenches Ltr. Qty. Components Left Legs (G) Cross Bars (H) Right Legs (I) Middle Left Leg (J) Middle Right Leg (K) Chaise Frame (L) Back Cover (M) - Page 3 STEP 1: Attach a Left and Right Leg (G & I) to the ends of a Crossbar (H) using Allen Screws (A) and an Allen Wrench (F). Repeat for the remaining Left and Right Leg (G & I) and a Crossbar (H). NOTE: Make sure the peg holes are facing the same direction.
- Page 4 STEP 5: Slide the Back Supports (N) into the pockets on the edge of the Back Cover (M). Slide the Seat Supports (P) into the pockets on the edge of the Seat Cover (O). STEP 6: Insert the assembled Seat Cover (O) and Back Cover (M) inside channels on the sides of the Chair Frame (L).
- Page 5 STEP 7: Turn the Chaise upright and lightly tap the Screw Plugs (E) into the screw holes on the sides and ends. STEP 8: Pull the back rest of the Chaise up and lock it into the desired position. Clean & Care Please refer to the care instructions on the hang tag.
