Ballard Designs Toulouse MV362 Manual

Tall bookcase
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Customer Service: 800-367-2810
Online: www.ballarddesigns.com

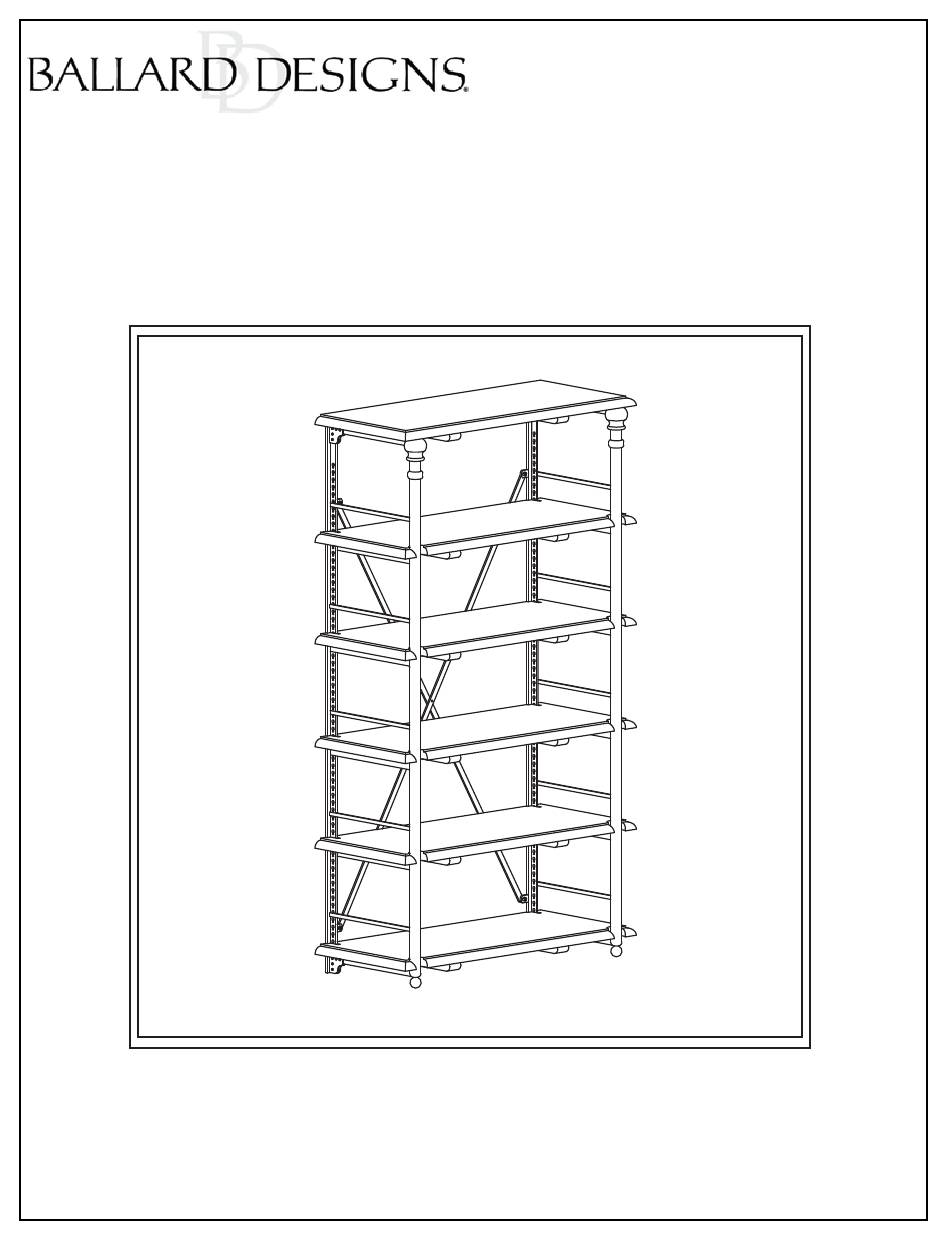

PRODUCT NAME: Toulouse Tall Bookcase
ITEM NUMBER: MV362
DIMENSIONS OF ITEM ASSEMBLED: 84"H x 42 1/2"W x 16"D
PRODUCTS ARE NOT INTENDED
MADE IN INDIA
FOR COMMERCIAL USE.
UPDATED: 4/15/2015
Page 1 of 6

Advertisement

loading
Need help?

Need help?

Do you have a question about the Toulouse MV362 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ballard Designs Toulouse MV362

Summary of Contents for Ballard Designs Toulouse MV362

  • Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Toulouse Tall Bookcase ITEM NUMBER: MV362 DIMENSIONS OF ITEM ASSEMBLED: 84"H x 42 1/2"W x 16"D PRODUCTS ARE NOT INTENDED MADE IN INDIA FOR COMMERCIAL USE. UPDATED: 4/15/2015 Page 1 of 6...

  • Page 2: Tools Needed

    Ltr. Qty. Hardware Included Allen Bolts and Cap Nuts TOOLS NEEDED: -Assembly requires 2 or more people. Allen Bolts -Assembly requires a screwdriver. -1/16” Drill Bit and Power Drill. Wood Screws NOTE: When unpacking, lay the parts Wrench on a padded surface such as the packaging provided.
  • Page 3 NOTE: Assemble the Bookcase in the desired location. STEP 1: Assemble Bookcase on a smooth, clean surface such as the packaging provided. Loosely attach the Top Fixed Shelf (G) to the tops of the Left and Right Side Frames (K & L) using the Allen Bolts (B).
  • Page 4 NOTE: Assemble the Bookcase in the desired location. STEP 3: Stand Bookcase upright and lay the Middle Fixed Shelf (H) on the center support bars of the Left and Right Side Frames (K & L) with the notches facing the front. To get the Shelf in place, tilt it back and lay it flat on the supports.
  • Page 5 NOTE: Assemble the Bookcase in the desired location. STEP 5: Insert the Left and Right Shelf Supports (N & O), with equal spacing, on the respective Side Frames (K & L) by inserting the Shelf Support fronts into the holes in the Side Frame’s front first and then sliding the back of the Shelf Support into the corresponding key hole in the Side Frame’s Back.
  • Page 6 NOTE: Assemble the Bookcase in the desired location. STEP 7: Insert the Shelf Guards (P) into the Side Frames (N & O) by inserting the Guards into the front holes of the Side Frames first and then sliding the back of the support into the corresponding key hole in the Side Frames back.
