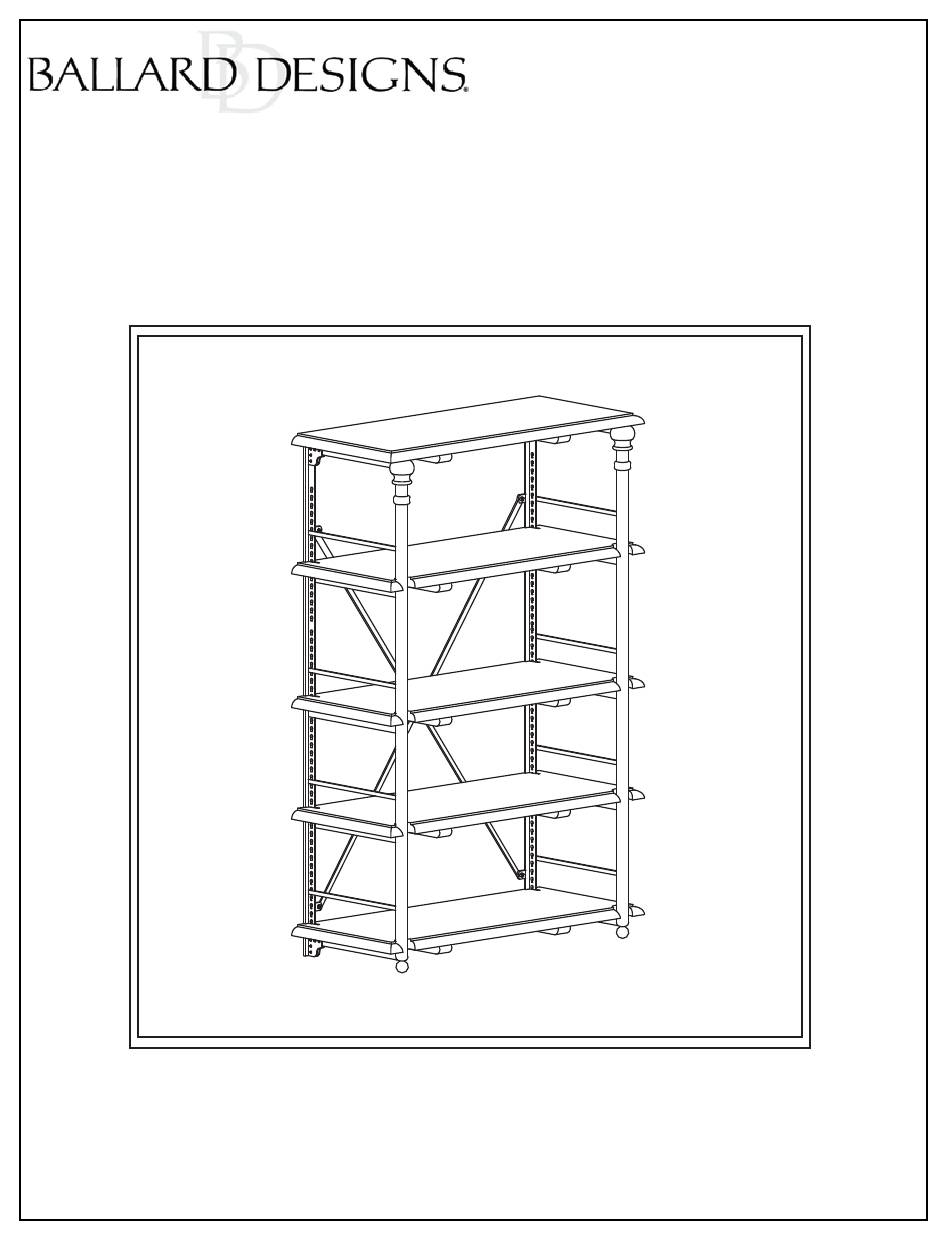

PRODUCT NAME: Toulouse Medium Bookcase
ITEM NUMBER: MV360
DIMENSIONS OF ITEM ASSEMBLED: 45"H x 30 1/2"W x 16"D
PRODUCTS ARE NOT INTENDED
FOR COMMERCIAL USE.
MADE IN INDIA
UPDATED: 4/15/2015
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Toulouse MV360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ballard Designs Toulouse MV360

  • Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Toulouse Medium Bookcase ITEM NUMBER: MV360 DIMENSIONS OF ITEM ASSEMBLED: 45"H x 30 1/2"W x 16"D PRODUCTS ARE NOT INTENDED FOR COMMERCIAL USE. MADE IN INDIA UPDATED: 4/15/2015 Page 1 of 5...
  • Page 2 Ltr. Qty. Hardware Included Allen Bolts and Cap Nuts TOOLS NEEDED: -Requires a screwdriver. -Assembly requires 2 or more people. Allen Bolts NOTE: When unpacking, lay Wrench the parts on a padded surface such as the packaging provided. Be sure to locate all hardware Allen Wrench before throwing away any packaging.
  • Page 3 NOTE: This assembly requires the help of 2 or more people. STEP 1: Assemble Bookcase on a smooth, clean surface such as the packaging provided. Loosely attach the Top Fixed Shelf (F) to the tops of the Left and Right Side Frames (I & J) using the Allen Bolts (B).
  • Page 4 NOTE: This assembly requires the help of 2 or more people. STEP 3: Insert the Left and Right Shelf Supports (L & M), with equal spacing, on the respective Side Frames (I & J) by inserting the Shelf Support fronts into the holes in the Side Frame’s front first and then sliding the back of the Shelf Support into the corresponding key hole in the Side Frame’s Back.
  • Page 5 NOTE: Assemble the Bookcase in the desired location. STEP 5: Insert the Shelf Guards (N) into the Left and Right Side Frames (I & J) by inserting the Guards into the front holes of the Side Frames first and then sliding the back of the support into the corresponding key hole in the Side Frames back.
