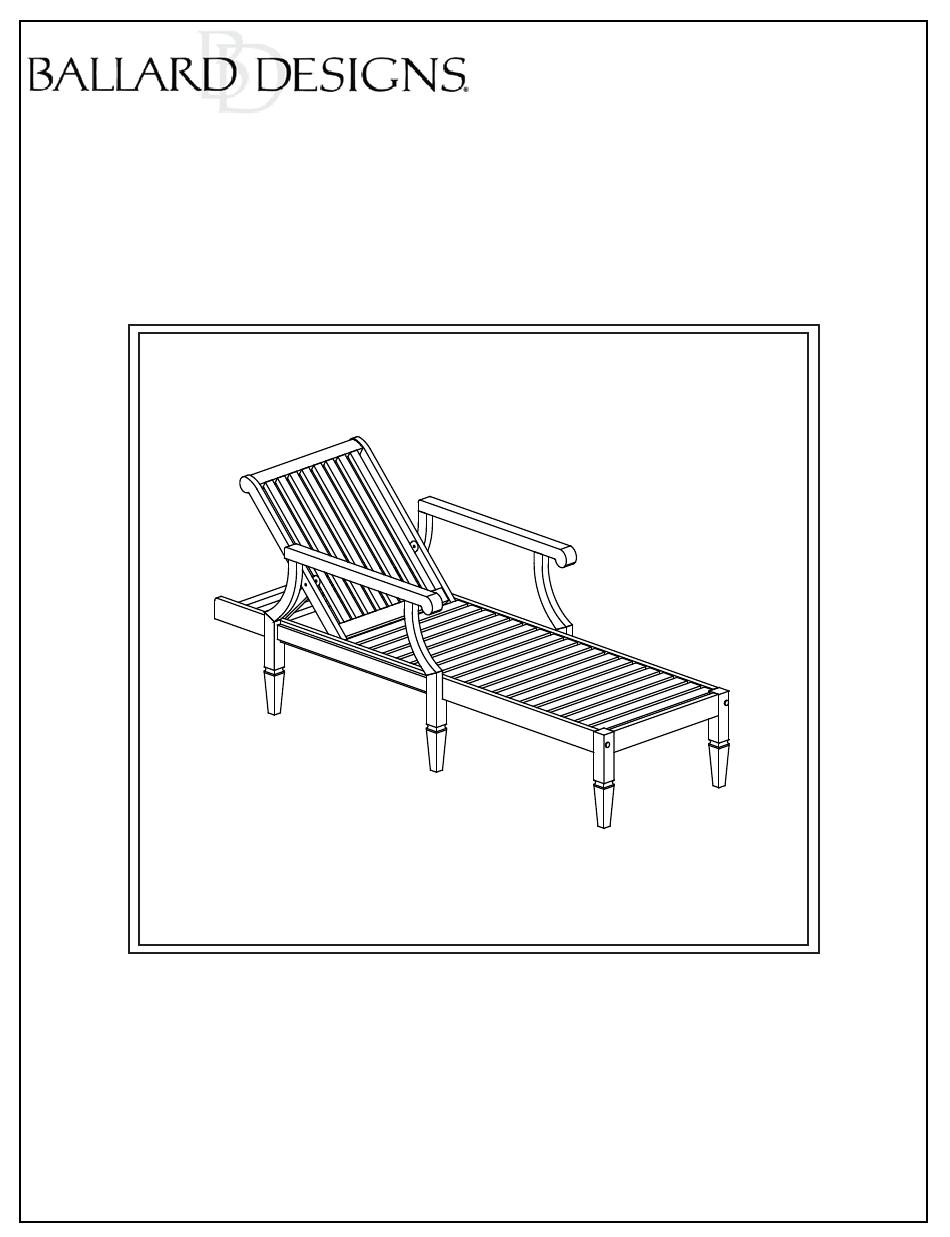

- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Madison Chaise ITEM NUMBER: JC022 DIMENSIONS OF ITEM ASSEMBLED: 24 1/2”H x 28”W X 80”D PRODUCTS ARE NOT INTENDED MADE IN VIETNAM FOR COMMERCIAL USE. UPDATED: 1/3/2014 Page 1 of 5...
-
Page 2: Tools Needed
Ltr. Qty. Hardware Included 90mm Allen Screws TOOLS NEEDED: 2 Person assembly. 40mm Allen Bolts Screw Plugs Allen Wrench Ltr. Qty. Components Frame (E) Left Arm (F) Right Arm (G) Front Leg (H) Seat Cushion (I) Customer Service: 800-367-2810 Page 2 of 5 Online: www.ballarddesigns.com... - Page 3 STEP 1: Place the Frame (E) upside down on a smooth, clean surface. Attach the Front Leg (H) to the Frame (E) using the 90mm Allen Screws (A). Tighten all Screws (A) with the Allen Wrench (D). STEP 2: Place the Frame (E) on its right side and attach the Left Arm (F) to the Frame (E) using 2 of the 40mm Allen Bolts (B).
- Page 4 STEP 4: Turn the Chaise upright and insert the Screw Plugs (C) into the 90mm Screw (A) holes. Lightly tap them into place. STEP 5: Place the Seat Cushion (I) on the Chaise. Then tie the Seat Cushion (I) to the Frame (E). Customer Service: 800-367-2810 Page 4 of 5 Online: www.ballarddesigns.com...
- Page 5 STEP 6: Adjust the Chaise back height as desired. Clean & Care: Please refer to the care instructions on the hang tag. Customer Service: 800-367-2810 Page 5 of 5 Online: www.ballarddesigns.com...
