• Use the drill with correct indicated sized drill
bit to drill each of the 4 holes as marked. Do
not drill too deep a hole- only enough depth to
fully enclose the anchor screws.
Note: Please double check to ensure there
is no existing water pipes or obstruction
behind area you are drilling. If there is an
obstruction, you will need to reposition
the template guide to avoid it.

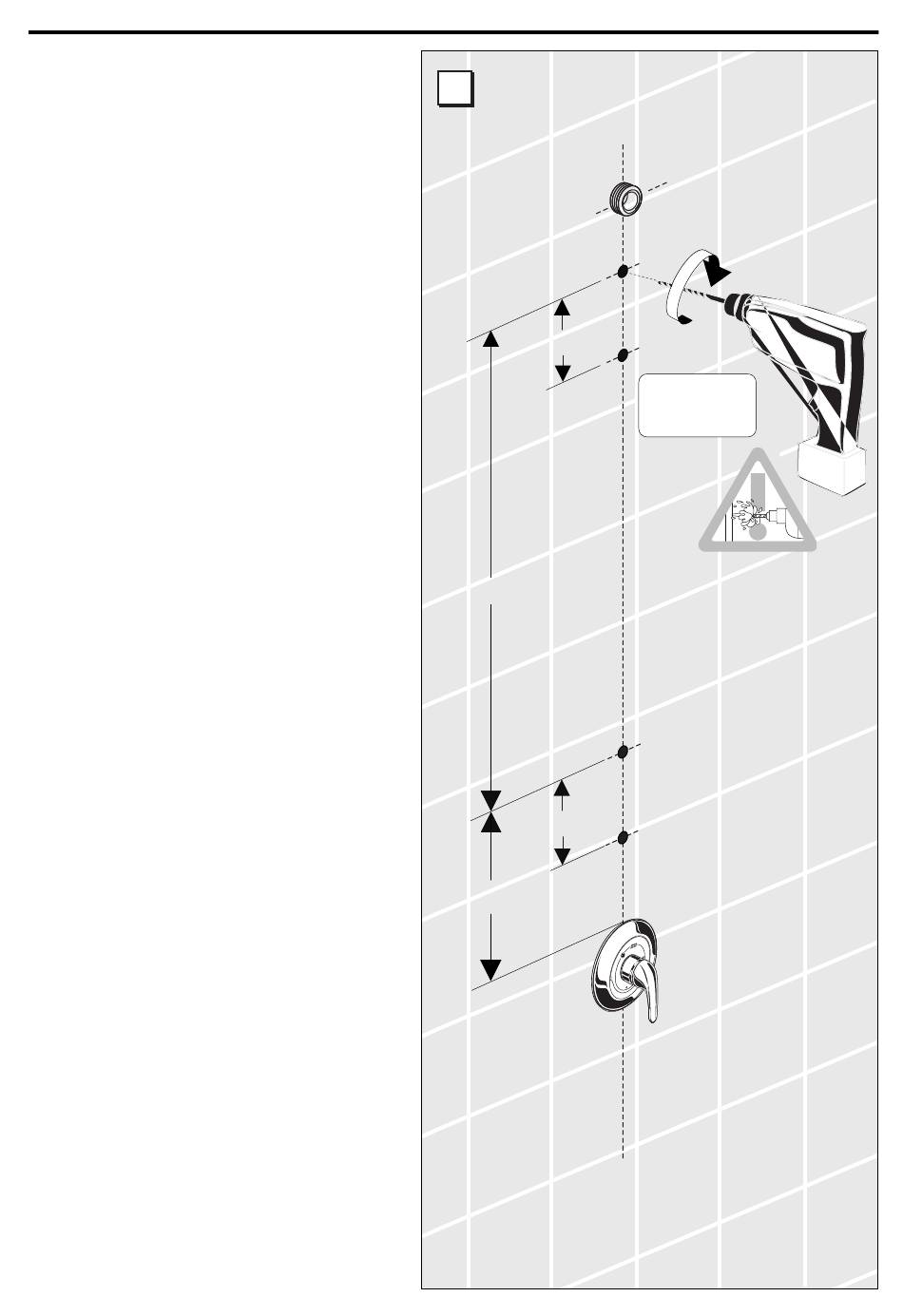

INSTALLATION INSTRUCTIONS
6
24.17"
5.6"(MIN)
- 8 -
1"
Hole
dia=Ø6.5mm
Depth=30mm
1"
