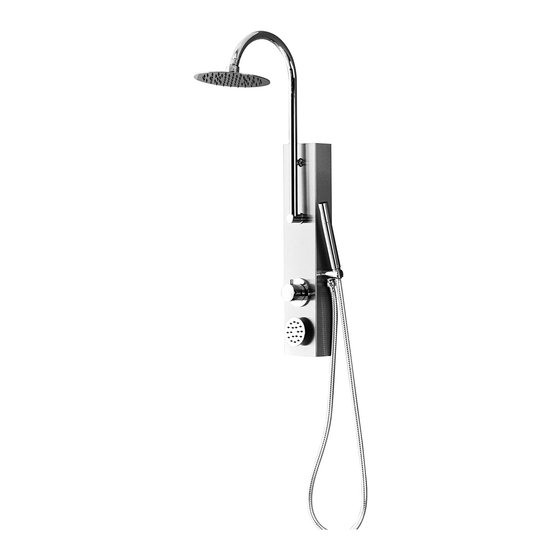

Easy Install Shower Panel
VS-1000C Plus
Installation and User Guide
Français p.18
Version No.: V1.20160526
Español p. 35
ATTACH YOUR RECEIPT HERE
Serial Number
Purchase Date
If you have questions relating to the use, warranty, return, claims and replacement,
please call: Phone: 877-551-0484 (Monday to Friday 8:30am-5:30pm PST)
Advertisement
Table of Contents
Related Manuals for Valore VS-1000C Plus
Summary of Contents for Valore VS-1000C Plus
- Page 1 Easy Install Shower Panel VS-1000C Plus Installation and User Guide Français p.18 Version No.: V1.20160526 Español p. 35 ATTACH YOUR RECEIPT HERE Serial Number Purchase Date If you have questions relating to the use, warranty, return, claims and replacement, please call: Phone: 877-551-0484 (Monday to Friday 8:30am-5:30pm PST)
-
Page 2: Code Compliance
DIMENSIONS " " " " " " " " CODE COMPLIANCE DIMENSIONS This product is tested and certified to • (H) 30.74" x (W) 4.72" x (D) 2.6" meet U.S. and international standards • Hand shower hose: 59.05" cUPC-certified • Weight: Net: 10 lbs /Gross: 12 lbs ATTENTION FEATURES •... -
Page 3: Important Note
IMPORTANT NOTE • Before and during installation, please read and familiarize yourself with all installation instructions for this product. • Please keep all components, parts and accessories of this product away from small children and minors. During installation, all screws,tools and small parts should be supervised so that they do not fall into the hands of children. •... - Page 4 - 4 -...
- Page 5 ASSEMBLY - 5 -...
- Page 6 ASSEMBLY - 6 -...
-
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS • Before Installation, insure there is sufficient clearance to accommodate the shower panel. A minimum of 23.5” is required between the shower outlet and top of your existing valve. Maximum clearance required 42”. Ensure that the water line to the overhead shower pipe is completely shut off prior to performing any work. - Page 8 INSTALLATION INSTRUCTIONS • Insert the Bracket (Part 13) onto the Brass Extender Joint (Part 15) • To ensure the bracket (and your shower panel) will be in a completely straight and level position, use a level tool against the side of the bracket guide to make fine adjustments to the bracket guide's position until fully level.
- Page 9 INSTALLATION INSTRUCTIONS Add a Filter Gasket (Part 3) into Elbow Connector (Part 14) first. Then attach the Elbow Connector (Part 14) to the Brass Extender Joint (Part 15), turn clock wise to tighten. • After all connections have been completed inside the shower panel, it is ready to be hung on the shower wall for installation.
- Page 10 INSTALLATION INSTRUCTIONS Recommended 10" Installation position will vary, depending on users height. It is recommended to have at approximately 10" of clearance above the users head, for the best experience with this produce. - 10 -...
-
Page 11: Assembly & Installation Instructions
ASSEMBLY & INSTALLATION INSTRUCTIONS • Add a O Ring Gasket (Part 9) into Handshower Hose ( Part 11). Then attach the Handshower Hose (Part 11) to the Handshower Cradle (Part 10), turn clock wise to tighten. dd a Filter Gasket ( Part 3) into Handshower •... - Page 12 Technical Data Maximum operating pressure: 125psi Recommended pressure: 50~80psi Test pressure: psi ,125psi Recommended hot water temperature: 93.2~107.6 F Flow rate @ 80 psi: <2.0gpm * For Safety, it is highly recommended that you familiarize yourself with all applicable local plumbing codes before installing this product.
- Page 13 Diverter Valve Structure Diverter valve How to Remove the Diverter Valve (2.5 mm) • Remove the handle to open the set screw access hole. • Loosen the set screw (#1) from the valve stem and pull the knob (#2) straight out. Diverter valve •...
- Page 14 How to Install the Diverter Valve Diverter valve • Place the Diverter valve (#5) into the valve body. Note • Tighten the gland nut (#4). Take precaution to avoid the one pillar on the bottom of the Diverter valve (#5) scratching the trim plate.
- Page 15 How to Replace the Check Valve • Loosen the nut securing the PVC Flexible hose to • Disconnect the PVC hose from the valve body and the brass valve body. remove the Filter Gasket (#3). Check Valve Check Valve • Using needle nose pliers, grip the edge of the check •...
-
Page 16: Troubleshooting
Cleaning Recommendations Modern faucets and shower products utilize a combination Cleaning Procedures of materials to comply with the needs of the market with • Required cleaning your faucets and shower products, regard to design and functionality. regular cleaning will prevent scale buildup and water To avoid damage, it is necessary to use some caution spotting. - Page 17 LIMITED WARRANTY Valore (“Seller”) and the person or entity that acquires these The limited warranty does not cover damage due to such things as accident, misuse, abuse, mishandling, goods from Seller (“Purchaser”) hereby fully agrees to the following terms and conditions of the sale: Shipping fees are...
