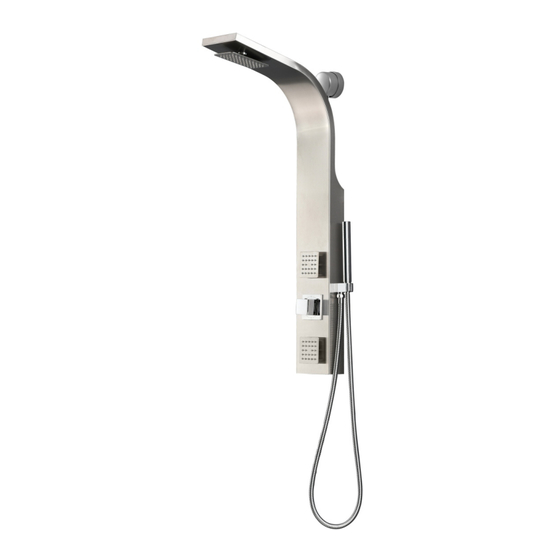

- Page 1 EFFUSION Easy Install Shower Panel Installation and User Guide Version No.: V1.20170107 ATTACH YOUR RECEIPT HERE Serial Number Purchase Date If you have questions relating to the use, warranty, return, claims and replacement, please call: Phone: 877-551-0484 (Monday to Friday 8:30am-5:30pm Pacific)
-
Page 2: Code Compliance
DIMENSIONS " " " 38 2 " " 10 4 " " " " DIMENSIONS BEFORE USAGE • (H) 38.46" x (W) 5.5" x (D) 2.56" • Read this Installation and User Guide before installing and operating. • Hand shower hose: 59.05" •... -
Page 3: Before Installation
BEFORE INSTALLATION • Before and during installation, read and familiarize yourself with all installation instructions for this product. • Keep all components, parts and accessories of this product away from small children and minors. During installation, all screws,tools and small parts should be supervised so that they do not fall into the hands of children. •... - Page 4 - 4 -...
- Page 5 ASSEMBLY ASSEMBLY - 5 -...
- Page 6 INSTALLATION INSTRUCTIONS • Before Installation, ensure there is sufficient clearance to accommodate the shower panel. A minimum of 19.5” is required between the shower outlet and top of your existing valve. Maximum clearance required 42”. Ensure that the water line to the overhead shower pipe is completely shut off prior to performing any work.
- Page 7 INSTALLATION INSTRUCTIONS Attention: Recommended PVC cover is not 10" required if the water outlet is below 33.38" Installation position will vary depending on users height. Depending on users height, it is recommended to have 10” of clearance above your head. Valve goes below this template.
- Page 8 INSTALLATION INSTRUCTIONS This section will guide you on measuring the Draw a level horizontal line based on required length of the Main PVC Supply Line the lower-edge of the selected hole (Part #8) relative to the final position of the Template Guide •...
- Page 9 INSTALLATION INSTRUCTIONS • To ensure the template (and your shower panel) will be in a completely straight and level position, use a level tool against the side of the template guide to make fine adjustments to the template guide's position until fully level. •...
- Page 10 INSTALLATION INSTRUCTIONS • After anchors has been secured, align the mounting brackets (Part #14) using the supplied screws (Part #13). x2PCS x4PCS For the Positioning & Mounting Brackets (Part #14), make sure that they are installed with protruding portion facing upward as shown in the drawing.
- Page 11 INSTALLATION INSTRUCTIONS NOTE: If the water outlet is below 33.38” on the template, the PVC cover is not required. 1. Peel off the paper backing to the adhesive ring for the Base Plate cover (Part #5). 2. Place the adhesive side to the wall and apply pressure to secure the Base Plate Cover (Part #5).
-
Page 12: How To Use
Technical Data Maximum operating pressure: 125psi Recommended pressure: 20~80psi Test pressure: 45psi ,125psi Flow rate @ 80 psi: <2.0gpm * For Safety, it is highly recommended that you familiarize yourself with all applicable local plumbing codes before installing this product. How to use Diverter NOTE: Use your exising shower valve to operate temperature and water flow to shower panel. - Page 13 Diverter Valve Structure Diverter valve How to Remove the Diverter Valve (2.5 mm) (2.5 mm) • Remove the cover(#3) to open the set screw access hole. • Loosen the set screw (#1) from the valve stem and pull the knob (#2) straight out. Diverter valve •...
- Page 14 How to Install the Diverter Valve Diverter valve • Place the Diverter valve (#5) into the valve body. Note • Tighten the gland nut (#4). Take precaution to avoid the one pillar on the bottom of the Diverter valve (#5) scratching the trim plate.
-
Page 15: Troubleshooting
Cleaning Recommendations Modern faucets and shower products utilize a combination Cleaning Procedures of materials to comply with the needs of the market with • Required cleaning your faucets and shower products, regard to design and functionality. regular cleaning will prevent scale buildup and water To avoid damage, it is necessary to use some caution spotting. -
Page 16: Limited Warranty
LIMITED WARRANTY Valore (“Seller”) and the person or entity that acquires these The limited warranty does not cover damage due to such things as accident, misuse, abuse, mishandling, goods from Seller (“Purchaser”) hereby fully agrees to the following terms and conditions of the sale: Shipping fees are...
