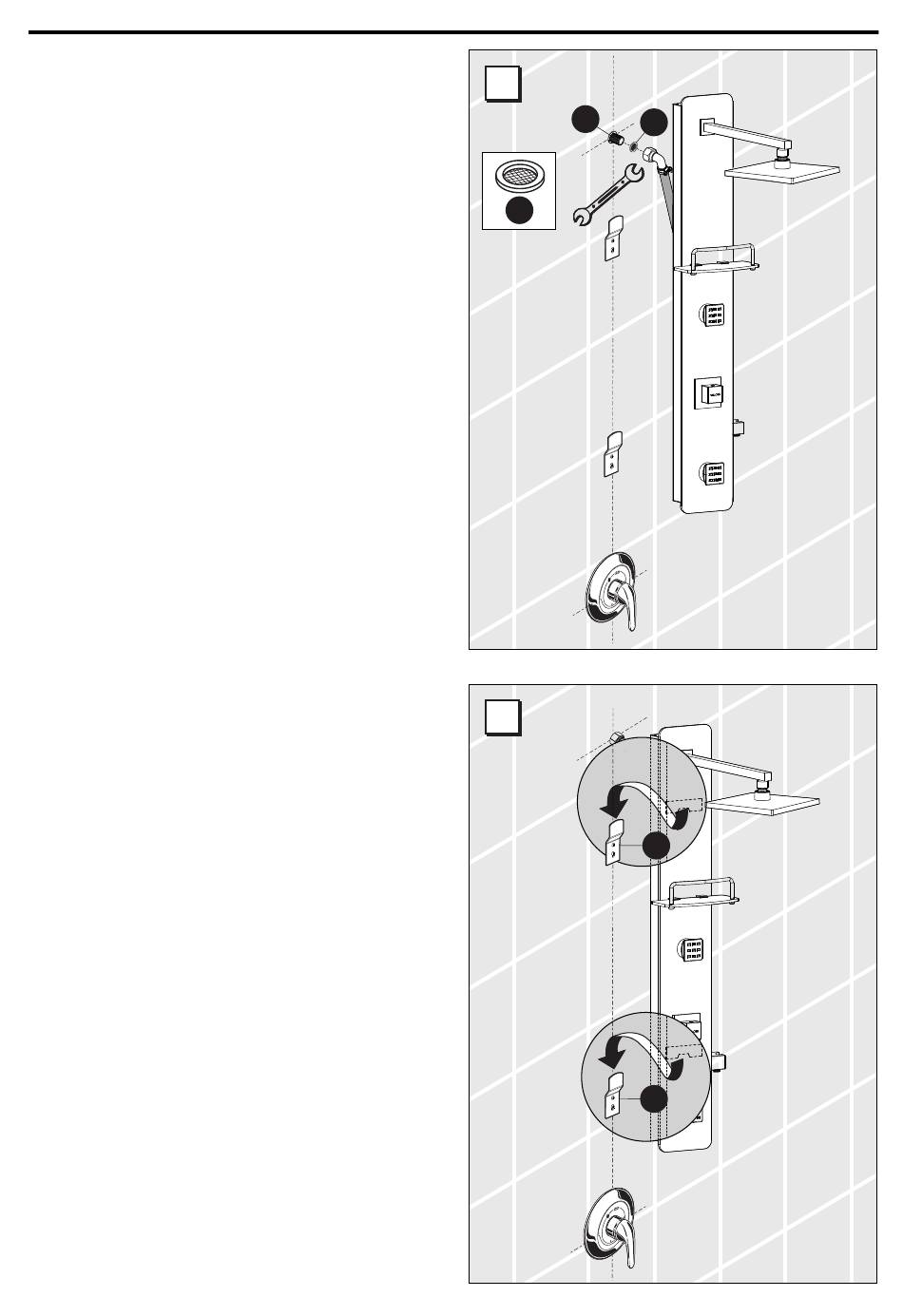

• Add a Filter Gasket (Part 12) into Elbow Connector
assembly first. Then attach the Elbow Connector
assembly to the Brass Extender Joint (Part 9), turn
clock wise to tighten.
• After all connections have been completed inside
the shower panel, it is ready to be hung on the
shower wall for installation.
• Raise the shower panel and bringing it to the
surface of the shower wall and gently lower it until
the bracket support struts on the back of the
shower panel meet the support brackets( Part 7)
installed in Step 8. Please ensure the brackets
(Part 7) are centered on the groove on the support
struts.
• Once a snug and secure fit is achieved and all parts
of the PVC Supply Line are secured to the back of
the shower panel, silicone sealant can be applied
to seal the gap between the shower panel casing
and the shower wall to hold it in place and prevent
water from entering behind the panel.
INSTALLATION INSTRUCTIONS
10
11
- 10 -
9
12
12
7
7
