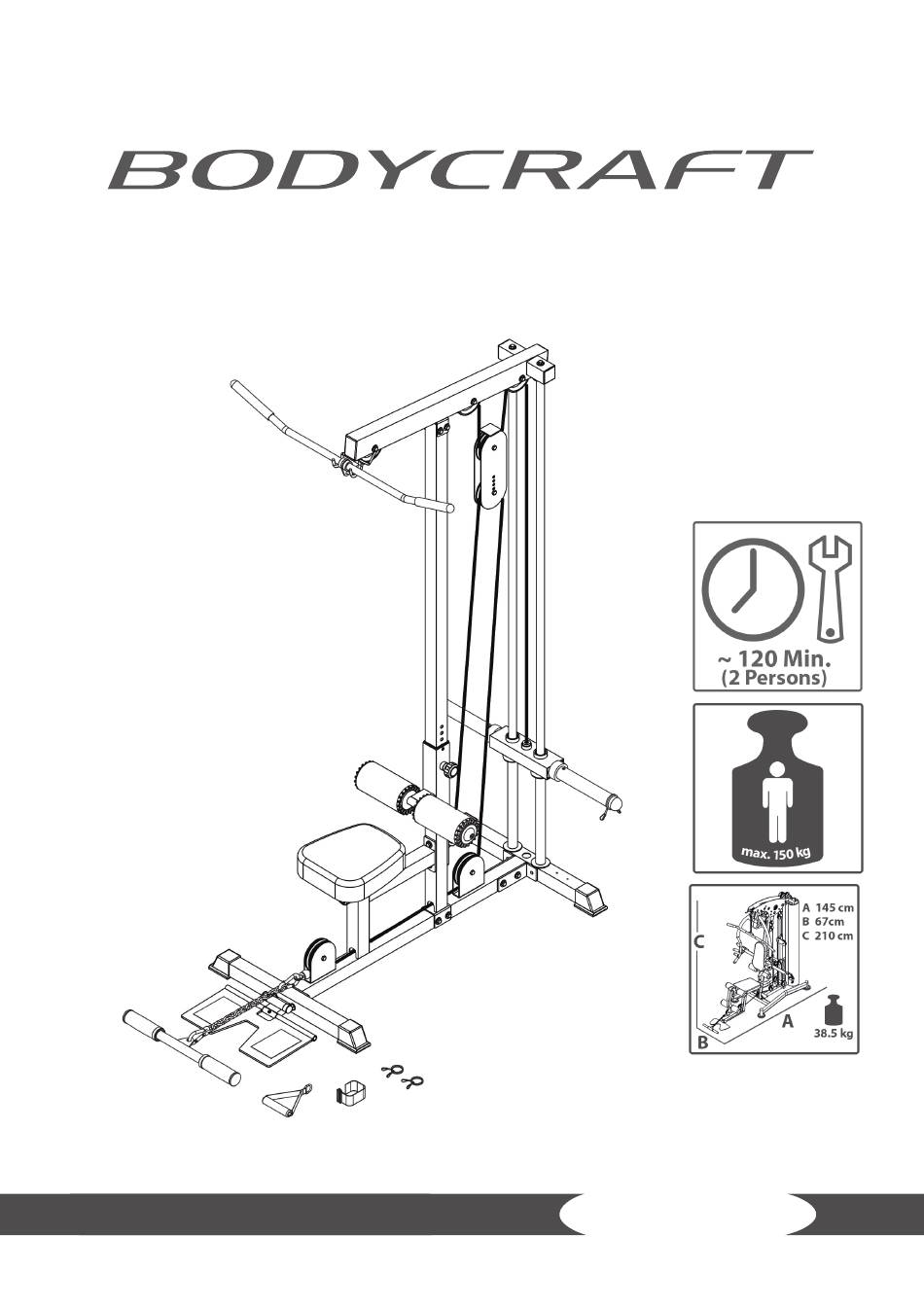

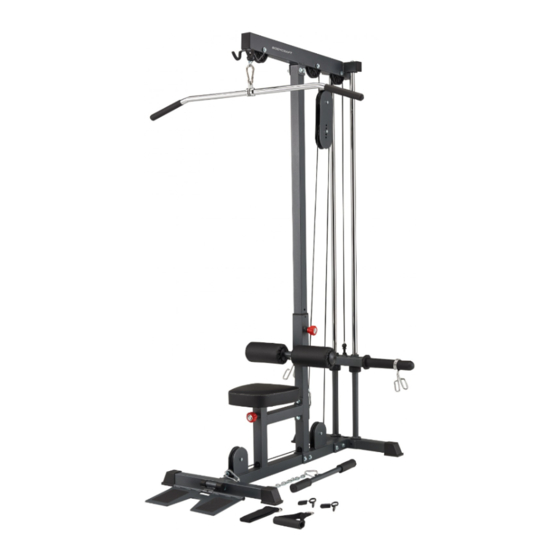

- Page 1 Assembly and Operating Instructions BC-LPT.01.02 Lat Pull Tower BC-LPT...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 With BodyCraft® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 5 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 6: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions: Packed dimensions boxes (L x W x H) and article weight (gross, incl. packaging): Box 1: L 113 | W 57 | H 21 cm | 42,5 kg Box 2: L 213 | W 12 | H 8 cm | 10,5 kg Article weight (net, without packaging): 38.5 kg Set-up dimensions (L x W x H): approx. -
Page 7: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 8: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION The training room should be well ventilated during training and not be exposed to any draughts. Choose the place in which to set up the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. -
Page 9: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 10: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠... -
Page 12: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Assemble base frame Attach four 50x50mm endcaps (19) to both ends of the front stabilizer (2) and the... - Page 13 Step 2: Assemble upright frame Mount the upright frame (5) to the base frame (1) using two 3/8” X 3” hex bolts (54), four 3/8” washers (63) and two 3/8” nylon nuts (66). Mount the connector plate (11) to the upright frame (5) using two 3/8”...
- Page 14 Step 3: Assemble top frame Attach two 50x75mm endcaps (20) to the top frame (4). Attach two 50x50mm caps (21) to the top frame (4). Shove the adjuster frame (7) over the upright frame (5). Mount the top frame (4) to the upright frame (5) using two 3/8”...
- Page 15 Step 4: Assemble foam pad Shove the two plastic covers (26) and the two foam pads (16) over the adjuster frame (7). Mount the foam pads (16) to the adjuster frame (7) using two 5/16” X 1-1/4 set screws (59), two plastic washers (27) and two 5/16”...
- Page 16 Step 5: Assemble top cable Insert the ball end of the top cable (32) into the front of the top frame (4) and fix the cable using a pulley (18), see T1. Mount the pulley (18) using two spacers (29), two 3/8” washers (63), one 3/8” X 2-3/4” hex bolt (55) and one 3/8”...
- Page 18 Step 6: Assemble lower cable Insert the ball end of the lower cable (33) into the front of the base frame (1) and fix the cable using a pulley (18), see L1. Mount the pulley (18) using a 3/8” X 1-3/4” hex bolt (56) and a 3/8” nylon nut (66), see L1. Guide the cable (33) along the base frame (1) and fix the cable using another pulley (18), see L2.
- Page 20 Step 7: Assemble lat bar Mount the lat bar (34) to the lat pull tower using the 9mm snap hook (23A). To mount accessories like the low row bar (43), the hand grip (39) or the ankle strap (40) mount the low row chain (42) to the end of the lower cable (33) using a 8mm snap hook (23) and connect the accessories to the low row chain (42) using a second 8mm snap hook (23).
-
Page 21: Storage And Transport
STORAGE AND TRANSPORT General Instructions ࣑ ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. The storage location should be dry and well ventilated and have a constant ambient temperature between 5°C and 45°C. WARNING ⚠... -
Page 22: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 23: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Half-yearly Yearly Cables and pulleys... -
Page 24: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 25: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: BodyCraft / multi gym Model Name: Article Number: BC-LPT... -
Page 26: Parts List
Parts List Name Qty. 1835-1 BASE FRAME 1835-2 FRONT STABILIZER FRAME 1835-3 REAR STABILIZER FRAME 1835-4 TOP FRAME 1835-5 UPRIGHT FRAME 1835-6 GUIDE ROD 1835-7 ADJUSTER FRAME 1835-8 SEAT ADJUSTER FRAME 1835-9 FOOT PLATE 1835-10 TOP PLATE 1835-11 CONNECTOR PLATE 1835-12 ADJUSTABLE PULLEY BLOCK 1835-13... - Page 27 1835-32 TOP CABLE 1835-33 LOW CABLE 1835-34 LAT BAR 1835-35 1" X 200mm HAND GRIP 1835-36 HOOK PLATE 1835-37 COLLAR 1835-38 SEALING RING 1835-39 HAND GRIP 1835-40 ANKLE STRAP 1835-41 NON SLIP 1835-42 LOW ROW CHAIN 1835-43 LOW ROW BAR 1835-44 1"...
-
Page 28: Exploded Drawing
Exploded Drawing... -
Page 29: Warranty
WARRANTY Training equipment from BodyCraft® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 30 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
Page 31: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��... - Page 32 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store for www.sport-tiedje.co.uk home fitness equipment with currently 80 stores www.sport-tiedje.de/blog and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 web shops www.facebook.com/SportTiedje in the respective national language or have their desired equpiment assembled on site.
- Page 33 Notes...
- Page 34 Notes...
- Page 36 Lat Pull Tower...
