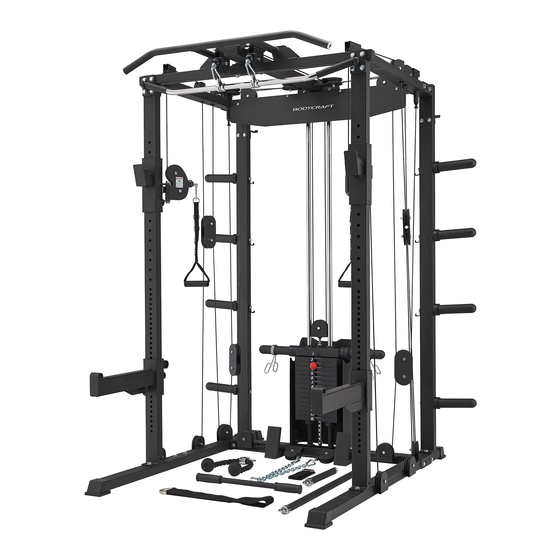

- Page 1 Assembly and Operating Instructions max. 150 kg ~ 300 Min. 235 kg L 166 | B 183 | H 212 BCSG1.01.01 Art. No. BC-SG1 BodyCraft Super Gym 1...
- Page 2 Super Gym 1...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 Super Gym 1...
- Page 5 BodyCraft weight stations, for example, off er a very wide range of exercise possibilities. This ranges from traditional strength training such as bench presses to rehabilitation exercises and workouts for complex sports such as golf, tennis or badminton.
- Page 6 This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries! NOTICE This notice indicates further useful information. Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts. Super Gym 1...
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions Weight block (67.5 kg) Packaging dimensions (L x W x H) and article weight (gross, incl. packaging): Box 1: 205.7 cm x 36.4 cm 13.3 cm 53.7 kg Box 2: 160.2 cm x 62.4 cm x 26.1 cm 53.3 kg Box 3: 94.8 cm x 59.1 cm x 20 cm... -
Page 8: Personal Safety
Be aware that if adjustment devices are left protruding, they may impede the user’s movement. ATTENTION Do not insert any objects of any kind into the openings of the device. Super Gym 1... -
Page 9: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
To prevent damage to the equipment and the fl oor, assemble the equipment on a mat or packaging board. NOTICE In order to make the assembly as simple as possible, some screws and nuts to be used can already be pre-assembled. Ideally, assemble the equipment at its later set-up place. Super Gym 1... -
Page 11: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... - Page 12 Super Gym 1...
-
Page 14: Assembly
Attach two plugs (38) to the base frame (1). Assemble the left and right base frame (2L & 3R) to the base frame (1) with four bolts (76), eight washers (94) and four nuts (97). Attach two non slips (113) to the base frame (1). Super Gym 1... - Page 16 Slide the left and right pulley height adjusters (9L & 10R) to the front upright frames (4). Assemble two rotating pulley holders (20) to the left and right pulley height adjuster (9L & 10R) with two bolts (76), four washers (94) and two nuts (97). Super Gym 1...
- Page 17 Step 3: Assembly of the Top Frame Assemble the lat bar bracket (23) to the front upright frame (4) and left top frame (15L) with two bolts (78), four washers (94) and two nuts (97). Assemble the rear upright frame (5) to the left top frame (15L) with two bolts (79) and two washers (94).
- Page 18 Assemble the chin up frame (12) to the left and right top frame (15L & 16R) with four bolts (78) and four washers (94). Assemble the rear top frame (11) to the left and right top frame (15L & 16R) with four bolts (76), six washers (94) and two nuts (97). Super Gym 1...
- Page 19 Step 5: Assembly of the Connector Top Frame Assemble two top frame pulley brackets (18) to the connector top frame (13) with two bolts (75), four washers (94) and two nuts (97). Assemble the connector top frame (13) to the chin up frame (12) and rear top frame (11) with two bolts (79), one bolt (80), fi ve washers (94) and two nuts (97).
- Page 20 Assemble the top guide rod holder (33) to the rear top frame (11) with two bolts (87). Assemble the two screws (93) to the guide rods (6). Insert the selector pin (59) into any desired hole of the weight stack. Super Gym 1...
- Page 22 14. Attach the head of the cable (74) to the bolt end of the pulley column cable (71). Super Gym 1...
- Page 24 (99) and route the cable (72) underneath the pulley [A4]. Guide the cable (72) upwards and screw the bolt end of the top cable into the left top frame (15L) [A5]. Repeat these steps for the right side [B1-B5]. Super Gym 1...
- Page 26 Attach the head of the cable (74) to the bolt end of the cable (73). Repeat these steps for the left side. Super Gym 1...
- Page 27 Low Cable (73) Threaded Bolt End Bolt End Head of Cable (74)
- Page 28 Assemble the top panel (14) to the rear top frame (11) with four bolts (88) and four plastic studs (51). Assemble the stack guard (17) to the base frame (1) with four bolts (84) and four washers (96). Super Gym 1...
- Page 29 Step 11: Assembly of the Olympic Adapter Sleeve Assemble eight lever support rods (28), eight rubber cushions (45) and eight adapter sleeves (63) to each side of the rear upright frame (5) with six weight holder brackets (25), eight washers (95) and eight bolts (83).
- Page 30 Attach the curl bar (31) with one snap hook (69) on the low cable (73). Attach two multiple D-ring single handles (67) with two snap hooks (69) on the pulley column cable (71). Make sure that all cables are properly seated in all of the pulleys. Tighten all bolts and nuts. Super Gym 1...
-
Page 31: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. -
Page 32: Troubleshooting, Care And Maintenance
Uneven ground Align unit Unit wobbles Loose screw connections Tighten screw connections Weight holders/guide Lubricate guide rods* rods too dry Heavy draught Check cable routing Faulty cable routing * With a grease-free silicone oil or silicone spray. Super Gym 1... -
Page 33: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specifi ed intervals: Part Weekly Monthly Quarterly Cables Screw connections... -
Page 34: Recommended Accessories
Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you! chest strap fl oor mat triceps rope weight block extension Super Gym 1... -
Page 35: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate fi eld. Serial number: Brand / Category: Bodycraft / multi gym Model Name: Super Gym 1 Article Number: BC-SG1... -
Page 36: Parts List
LOW CABLE PULLEY BRACKET ROTATING PULLEY HOLDER PULLEY BLOCK DOUBLE CABLE RETAINER PLATE LAT BAR BRACKET BRACKET WEIGHT HOLDER BRACKET HOOK PLATE AXLE COLLAR LEVER SUPPORT ROD SELECTOR ROD LAT BAR CURL BAR TWO WAY TOP PLATE Super Gym 1... - Page 37 TOP GUIDE ROD HOLDER STACK SPACER 10 LB. WEIGHT PLATE 75W X 45H END CAP 45 X 75mm PLUG 25 X 75mm PLUG 45mm SQ. PLUG HOLLOW PLUG 1” BUSHING FOR TWO WAY TOP PLATE 1” BUSHING 1/2” ID BUSHING PLASTIC GUIDE ROD HOLDER RUBBER CUSHION RUBBER DONUT...
- Page 38 M5 TAPPING SCREW 5/16“ X 3/8” INNER HEX SCREW 5/16” X 1/4” INNER HEX SCREW 1/2” WASHER 3/8” WASHER 5/16” WASHER 1/2” NYLON NUT 1/2” NUT 3/8” THICKER NYLON NUT M5 NYLON NUT 5/16" LARGER NUT TRICEP ROPE Super Gym 1...
- Page 39 CHIN ASSIST STRAP SPORT BAR LONG BAR 1" X 295L FOAM GRIP 1" X 900L FOAM GRIP SPORT BAR COLLAR SPACER BEARING C - RING 5/16" SMALLER NUT NON SLIP 1-1/4” ROUNG PLUG BUTTON CAP 3/8” THINER NYLON NUT M6 X 6mm INNER HEX SCREW...
-
Page 40: Exploded Drawing
Exploded Drawing 62 51 89 52 62 48 97 94 62 37 92 63 92 63 92 63 57 55 82 22 62 Super Gym 1... -
Page 41: Warranty
WARRANTY Training equipment from Bodycraft® is subject to strict quality control. However, if a fi tness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 42 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. Super Gym 1...
-
Page 43: Contact
CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 189 530984 +49 4621 4210-945 +49 4621 42 10 933 �� +49 4621 4210-698 �� �� info@fi tshop.dk info@fi tshop.fr ��... - Page 44 The company employs numerous sports scientists, fi tness trainers and competitive athletes. Visit us also on our social media platforms or our blog! Super Gym 1...
- Page 45 Notes...
- Page 46 Notes Super Gym 1...
- Page 48 BodyCraft Super Gym 1...
