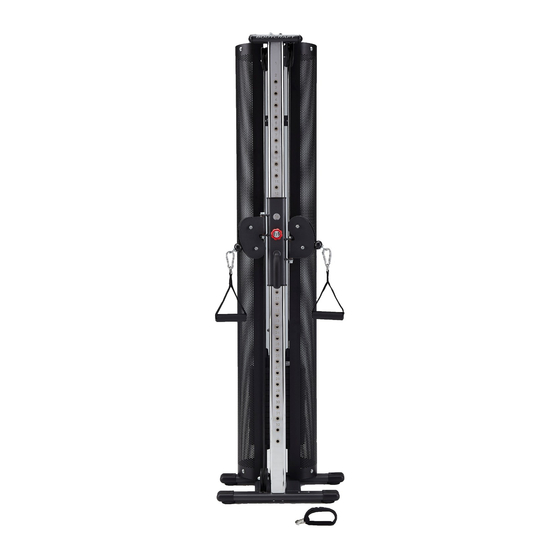

- Page 1 Assembly Instructions ~ 60 Min. L 55 | W 55 | H 206 BCCABLEPULL.01.05 Cable Pull Station BC-CABLE-PULL...
- Page 2 Cable Pull...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 In terms of innovation and technology, it is one of the highest quality fitness equipment for home use. Bodycraft multi gyms, for example, offer a very wide range of exercise possibilities. This ranges from traditional strength training such as bench presses and rehabilitation exercises to workout for complex sports like golf, tennis or badminton.
- Page 5 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 6: General Information
Box 3: 28 cm x 19 cm x 15 cm 33 kg Weight block in kg: 67.5 kg BC-CABLE-PULL-90 Package dimensions (L x W x H) and weight approx.: Box 1: 78 cm x 53 cm x 18 cm 28.2 kg... -
Page 7: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 8: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. CAUTION ⚠ Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 9: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 10: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... - Page 11 Name Name Base Frame Rubber Donut Top Frame Plastic Guide Rod Holder Front Upright Frame Pulley Rear Upright Frame Clip Guide Rod Single Handle Weight Shroud Selector Pin Cable Height Adjuster Oval End Cap Swivel Pulley Housing Oval Cap Double Pulley Bracket Round Cap Bracket Frame Cable...
-
Page 12: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Assemble Base Frame Cap four Oval End Caps (20) to the Base Frame (1). - Page 13 Step 2: Preparation for Wall Mounting NOTICE A hand drill is required for this assembly step. Make sure that you use a suitable drilling attachment. The contractor is not liable for any damage to the wall. Place the cable pulling station at the desired position and mark the drill holes.
- Page 14 Step 3: Assembly Attach Front Upright Frame (3) to the Base Frame (1) using two 3/8” X 1” Hex Threaded Bolts (33) and two 3/8” Spring Washers (37). Attach two Swivel Pulley Housings (8) to the Cable Height Adjuster (7) using two 1/2” X 4-1/4” Hex Bolts (29), four 1/2”...
- Page 16 Step 4: Assemble Top Frame and Wall Mounting NOTICE If the wall has areas of unevenness, such as a skirting board, the screws (28) supplied are not suitable for wall mounting. In such a case, you need to purchase a suitable mounting set of screws yourself.
- Page 17 Step 5: Install Cable IMP OR TANT Screw the Double Pulley Bracket (9) into the Top Plate (12) with the Selector Rod (11), see C4 and C6. ࣑ ATTENTION The thread of the Double Pulley Bracket (9) must be screw into the Top Plate (12) for at least 2 cm.
- Page 18 NOTICE The cable length can be adjusted by removing the Top Plate Bolt (35) to be able to turn the selector rod (11) and thus retighten the cable or extend the cable. 10. Tighten the bolts. Cable Pull...
- Page 19 Step 6: Assemble Weight Shroud Attach Weight Shrouds (6) to Top Frame (2) and Base Frame (1) using eight 5/16” Washers (38) and eight 5/16” X 1/2” Screws (34). Remember to keep all bolts loose in frame to ensure holes line up easily.
-
Page 20: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 21: Maintenance And Inspection Calendar
Visual inspection of the cable routing or the pulley guide Cables or pulleys do not run Grinding noises smoothly or are damaged If damaged, replace the defective part Weight hanging in Cable tensioned too tight Readjust cable tension the air Cable without tension Cable too loose Readjust cable tension... -
Page 22: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 23: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: BodyCraft / Cable Pull Model Name: Cable Pull Article Number: BC-CABLE-PULL... -
Page 24: Parts List
Parts List Name Qty. Name Qty. BASE FRAME HOLLOW TOP FRAME HANDLE GRIP FRONT UPRIGHT FRAME CABLE REAR UPRIGHT FRAME KNOB GUIDE ROD BUSHING WEIGHT SHROUD 5/16" X 2" HAND SET (For Wall) CABLE HEIGHT ADJUSTER 1/2" X 4-1/4" HEX BOLT SWIVEL PULLEY HOUSING 3/8"... -
Page 25: Exploded Drawing
Exploded Drawing 38 34... -
Page 26: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. Error Descriptions Your fitness equipment is developed for long-term, high-quality training. - Page 27 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 28: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��... - Page 29 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store www.sport-tiedje.co.uk for home fitness equipment with currently over www.sport-tiedje.de/blog 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 www.facebook.com/SportTiedje web shops in the respective national language or have their desired equpiment assembled on...
- Page 30 Notes Cable Pull...
- Page 32 Cable Pull Station...
