Summary of Contents for BodyCraft BC-EFT

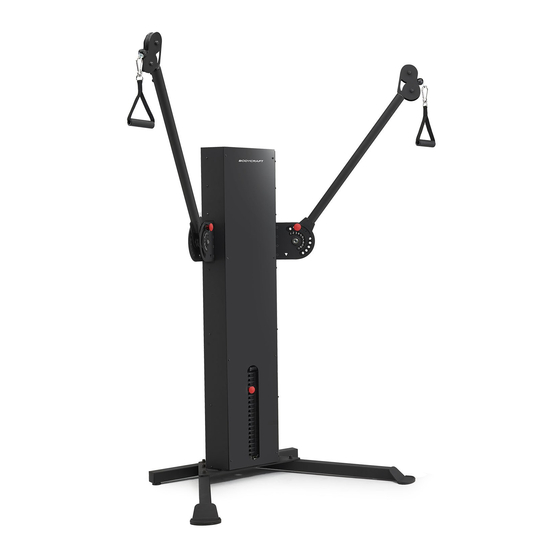

- Page 1 Assembly and Operating Instructions max. 150 kg ~ 240 Min. 96 kg L 250 | B 109 | H 190 BCEFT.01.01 Art. No. BC-EFT BodyCraft EFT Functional Trainer...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Heart Rate Controlled Programmes STORAGE AND TRANSPORT General Instructions Transportation Wheels Folding Mechanism 4.3.1 Folding Up the Treadmill 4.3.2 Unfolding the Treadmill TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis... - Page 4 WARRANTY CONTACT...
- Page 5 BodyCraft weight stations, for example, offer a very wide range of exercise possibilities. This ranges from traditional strength training such as bench presses to rehabilitation exercises and workouts for complex sports such as golf, tennis or badminton.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions Packaging dimensions (L x W x H) and article weight (gross, incl. packaging): Box 1: 188.2 cm x 72.5 cm 33.5 cm 101 kg Box 2: 39.6 cm x 5.6 cm x 185.5 cm 4.7 kg Box 3: 26.9 cm x 20.3 cm x 12.7 cm... -
Page 8: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. - Page 11 (5) GUIDE ROD (12) (13L) (14R)
-
Page 13: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g. - Page 14 Step 2: Assembly of the Top Frame Assemble the left and right upright frame (7L & 8R) to the foot plate (1) with eight screws (47). Insert two pulleys (29) into the top frame (9) and attach top frame (9) to the connector frame (10) with two bolts (37), four washers (52) and two nuts (57).
- Page 15 Step 3: Assembly of the Base Frames Attach two plugs (46) to the base frame (2). Attach the base frames (2 & 3 & 4) to the foot plate (1) wth six bolts (41) and six spring washers (53).
- Page 16 Step 4: Assembly of the Weight Plates Insert the two guide rods (5) into the bottom of the foot plate (1). Slide two springs (26), two bigger washers (25) and two rubber cushions (24) onto one end of each guide rod (5). NOTICE Make sure that each plate is oriented with the selector hole on the bottom and facing forward.
- Page 18 Step 5: Assembly of the Cables and Pulleys NOTICE Assemble the cables and pulleys simultaneously. Assemble two pulleys (29) to the double shaft (18) with two bolts (38) and two nuts (57) [A1 & A2]. Insert the bolt end of the cable (60) into the double shaft (18) and pull it upwards [A1 & A2]. Route the cable (60) through the pulleys and pull it upwards [A3, A4, A5 &...
- Page 20 Step 6: Adjustment of the Cable Tension Remove the pin (28). Pull up the selector rod (21) and use the selector pin (28) to prevent the selector rod fram falling down [Fig. 1]. Loosen and remove the top plate bolt (40) [Fig. 1]. Hold the double pulley bracket (19) and turn the selector rod (21) to adjust the cable tension [Fig.
- Page 21 Step 7: Assembly of the Stack Guards Assemble the left and right stack guards (13L & 14R) to the left and right upright frames (7L & 8R) with twelve spring washers (56) and twelve bolts (45). Attach the panel (12) to the left and right stack guards (13L & 14R) with eight screws (50).
-
Page 22: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 23: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 24: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Cables Screw connections Pulleys and cable routing... -
Page 25: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 26: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Bodycraft / multi gym Model Name: EFT Functional Trainer Article Number: BC-EFT... -
Page 27: Parts List
Parts List Name Qty. FOOT PLATE BASE FRAME BASE FRAME BASE FRAME GUIDE ROD UPRIGHT FRAME LEFT UPRIGHT FRAME RIGHT UPRIGHT FRAME TOP FRAME CONNECTOR FRAME TOP GUIDE ROD HOLDER PANEL LEFT STACK GUARDS RIGHT STACK GUARDS 15L1 LEFT PULLEY ADJUSTER 15L2 LEFT PULLEY ADJUSTER 16R1... - Page 28 60mm PULLEY BEARING ALUMINUM WASHER Ø 9.8 PLASTIC SPACER Ø 9.6 AXLE ADJUSTMENT LEVELER FOOT 3/8“ X 3“ HEX BOLT 3/8“ X 2“ HEX BOLT 3/8“ X 1-3/4“ HEX BOLT 3/8" X 1" HEX BOLT TOP PLATE BOLT 1/2“ X 1“ ROUND INNER ALLEN BOLT 3/8“...
- Page 29 CLIP 50 X 75mm PLUG CAP FOR NUT 6905 BEARING Ø 12.2 PLASTIC SPACER Ø 12 AXLE STEEL PLATE LEFT SUPPORT ARM RIGHT SUPPORT ARM...
-
Page 30: Exploded Drawing
Exploded Drawing 15L2 15L1 51 44 45 56 33 49 32 49 16R2 16R1... - Page 31 WARRANTY Training equipment from Bodycraft® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
- Page 32 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
- Page 33 CONTACT �� TECHNIK �� TEKNIK OG SERVICE �� TECHNIQUE & SERVICE �� +49 4621 4210-900 80 90 16 50 +33 (0) 189 530984 �� �� �� +49 4621 4210-945 +49 4621 42 10 933 +49 4621 4210-698 �� �� info@fitshop.dk info@fitshop.fr ��...
- Page 34 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store www.sport-tiedje.co.uk for home fitness equipment with currently over www.sport-tiedje.de/blog 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 www.facebook.com/SportTiedje web shops in the respective national language or have their desired equpiment assembled on...
- Page 36 BodyCraft EFT Functional Trainer...
