Summary of Contents for BodyCraft F605

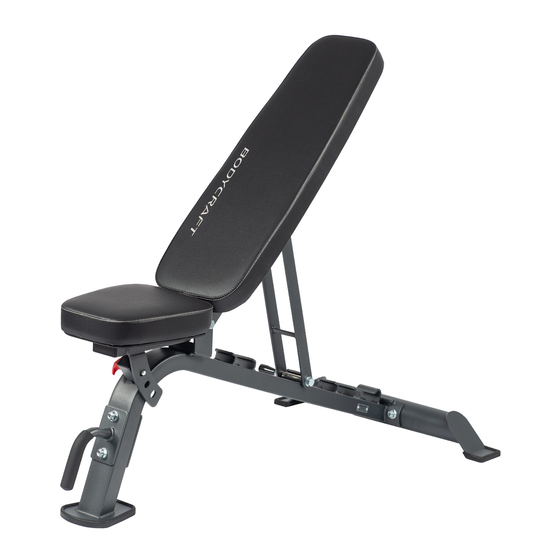

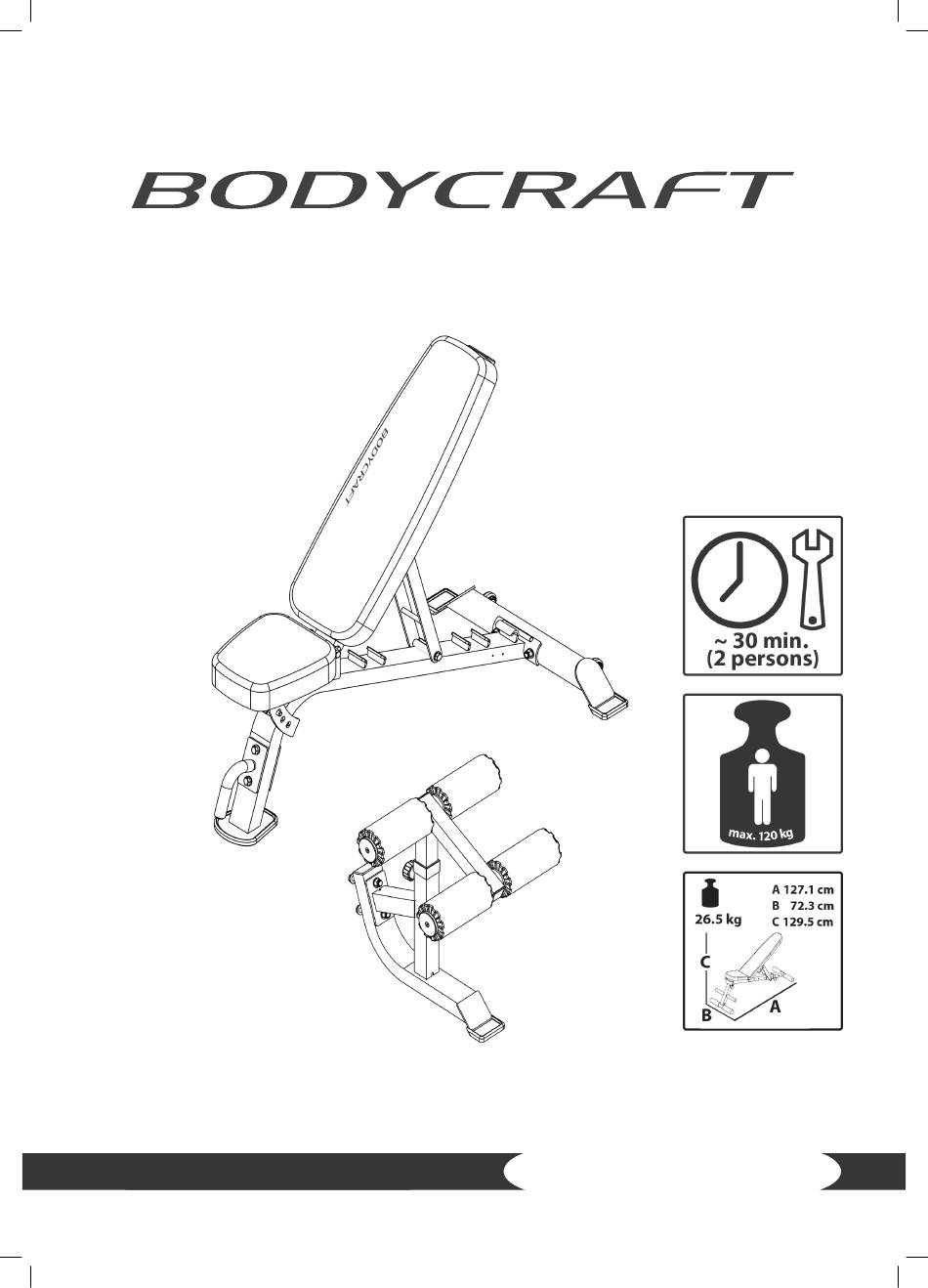

- Page 1 Assembly Instructions Art. No: BC-F605 Art. No: BC-F615 BCF605.01.01 BodyCraft Weight Bench F605 BC-F605 / BC-F615...
- Page 2 F605...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery 2.2.1 Weight Bench 2.2.2 Leg Press (optional) Assembly 2.3.1 Weight Bench 2.3.2 Leg Press (optional) STORAGE AND TRANSPORT General Instructions Transportation Wheels TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar... - Page 4 F605...
- Page 5 In terms of innovation and technology, it is one of the highest quality fitness equipment for home use. Bodycraft multi gyms, for example, offer a very wide range of exercise possibilities. This ranges from traditional strength training such as bench presses and rehabilitation exercises to workout for complex sports like golf, tennis or badminton.
- Page 6 This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries! NOTICE This notice indicates further useful information. Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts. F605...
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight bench: Weight and dimensions Article weight (gross, incl. packaging): 30 kg Article weight (net, excl. packaging): 26.5 kg Package dimensions (L x W x H): approx. 113 cm x 60 cm x cm Set-up dimensions (L x W x H): approx. 127 cm x 72.3 cm x 129.5 cm Maximum user weight: 120 kg ACCESSORIES Leg press:... -
Page 8: Personal Safety
Make sure that nobody is within the range of motion of the equipment during training so as not to endanger you or other persons. ࣑ ATTENTION Do not insert any objects of any kind into the openings of the device. F605... -
Page 9: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. CAUTION ⚠ The training room should be well ventilated during training and not be exposed to any draughts. Choose the place in which to set up the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. -
Page 10: Assembly
To prevent damage to the equipment and the floor, assemble the equipment on a mat or packaging board. NOTICE In order to make the assembly as simple as possible, some screws and nuts to be used can already be pre-assembled. Ideally, assemble the equipment at its later set-up place. F605... -
Page 11: Scope Of Delivery
Scope of Delivery 2.2.1 Weight Bench The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠... -
Page 12: Leg Press (Optional)
In the event of complaints, the contractual partner must be contacted directly. ⚠ CAUTION If parts of the scope of delivery are missing or damaged, the assembly must not be carried out. F605... -
Page 13: Assembly
Assembly 2.3.1 Weight Bench Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. - Page 14 Make sure that you do not overtighten the screws during the next step so that the back pad support can still be moved and adjusted accordingly. Tighten the bolts. Install two 45 X 75mm End Caps (9) to the Back Pad Support (3) and Seat Adjuster (4). Install the Knob (11) on to Back Adjuster (6). F605...
- Page 15 Step 4: Assembly of the seat pad Attach Back Pad (12) to the Back Support (3) using two 3/8“ X 2-3/4“ Hex Bolts (23) and two 3/8“ Washers (26). Attach Seat Pad (13) to the Seat Pad Support (4) using two 3/8“ X 2-3/4“ Hex Threaded Bolts (23) and two 3/8“...
-
Page 16: Leg Press (Optional)
Slide one Plastic Washer (211) and one Foam Pad Cover (205) onto each end of the Foam Roller Holder (203). Mount the Aluminum Cap (212) onto each end of the Foam Roller Holder (203) by using four 5/16” X 1-1/4” Screws (215). F605... - Page 17 Step 6: Assembly of the leg press Part 2 Place the Spacer Cap (209) on the Attachment Holder (201). Slide the Hold Down Tube (202) through the Spacer Cap (209) into the Attachment Holder (201). ⚠ CAUTION Make sure that the control knob (210) audibly engages in one of the setting holes during the next step.
-
Page 18: Storage And Transport
The equipment must not be used until it has been repaired. If necessary, use only original spare parts. ࣑ ATTENTION In addition to the instructions and recommendations for maintenance and care given here, additional service and/or repair work may be necessary; this must only be carried out by authorised service technicians. F605... -
Page 19: Faults And Fault Diagnosis
Faults and Fault Diagnosis The equipment undergoes regular quality controls during production. Nevertheless, faults or malfunctions may occur. Frequently, individual parts are responsible for these disturbances, an exchange is usually sufficient. Please refer to the following overview for the most common errors and how to correct them. -
Page 20: Recommended Accessories
Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you! chest strap floor mat chest strap contact gel silicone spray towels F605... -
Page 21: Ordering Spare Parts
The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: BodyCraft / Weight Bench BodyCraft / Leg Press Model Name: F605 F615... -
Page 22: Parts List
3/8" X 2-3/4" HEX THREADED BOLT 4pcs 9971-24 5/16" X 1-1/2" HEX BOLT 2pcs 9971-25 1/2" WASHER 14pcs 9971-26 3/8" WASHER 4pcs 9971-27 1/2" NYLON NUT 8pcs 9971-28 5/16" NYLON NUT 2pcs 9971-29 1/2" X 6" HEX BOLT 1pcs F605... -
Page 23: Leg Press
7.2.2 Leg Press Name Qty. 9972-201 ATTACHMENT HOLDER 1pcs 9972-202 HOLD DOWN TUBE 1pcs 9972-203 FOAM ROLLER HOLDER 2pcs 9972-204 FOAM PAD 4pcs 9972-205 FOAM PAD COVER 4pcs 9972-206 RUBBER (Pre-Assembled) 1pcs 9972-207 45 X 75mm END PLUG 1pcs 9972-208 45 X 45mm END PLUG 2pcs 9972-209... -
Page 24: Exploded Drawing
EXPLODED VIEW Exploded Drawing 7.3.1 Weight Bench 25 27 F605... -
Page 25: Leg Press
7.3.2 Leg Press... -
Page 26: Warranty
WARRANTY Training equipment from BodyCraft® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 27 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 28: Contact
�� Mo - Fr 08:00 - 18:00 09:00 - 18:00 09:00 - 18:00 Please find a detailed overview including address and opening hours for all stores of the Sport-Tiedje Group in Germany and abroad on the following website: www.sport-tiedje.com/en/stores F605... - Page 29 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store for www.sport-tiedje.co.uk home fitness equipment with currently 80 stores www.sport-tiedje.de/blog and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 web shops www.facebook.com/SportTiedje in the respective national language or have their desired equpiment assembled on site.
- Page 30 Notes F605...
- Page 32 BodyCraft Weight Bench F605...
