INSTRUCTION MANUAL

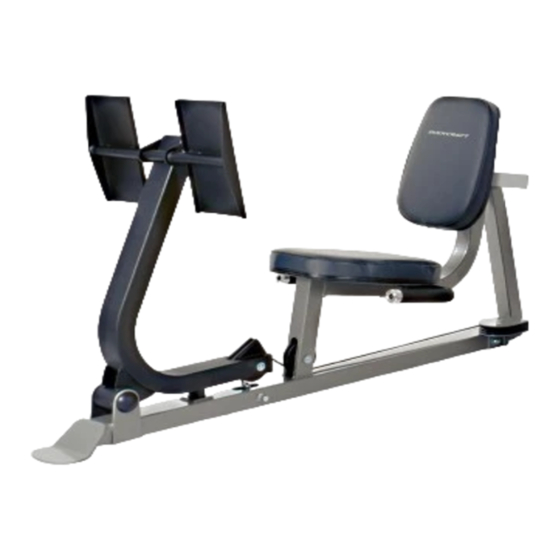

LEG PRESS

OPTION OF GX GYM (BCG-GX)
QUESTION?
As a quality home gym supplier we are committed to your complete satisfaction. If you have
questions, or find missing or damaged parts, we will guarantee your complete satisfaction through
our authorized dealer service centers or our home office customer service department. Please call
your local dealer for assistance or BodyCraft at 800-990-5556 (9:00 AM - 5:00 PM). Our trained
technicians will provide immediate assistance to you, free of charge.
Bodycraft is a division of Recreation Supply Inc.
P.O. BOX 181
Sunbury, OH 43074
MZ6882

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BCG-GX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BodyCraft BCG-GX

Summary of Contents for BodyCraft BCG-GX

  • Page 1: Instruction Manual

    Please call your local dealer for assistance or BodyCraft at 800-990-5556 (9:00 AM - 5:00 PM). Our trained technicians will provide immediate assistance to you, free of charge.

  • Page 2: Before You Begin

    6. Make certain all cables are seated within the pulleys before every use. 7. Exercise with care to avoid injury. 8. If unsure about the proper use of the BODYCRAFT GX GYM LEG PRESS strength training system call your local BODYCRAFT dealer or...
  • Page 3 EXPLODED...

  • Page 4: Parts List

    PARTS LIST NO. DESCRIPTION QTY. BASE STABILIZER MAIN FRAME LEG PRESS SUPPORT SEAT HANDLE BACK PAD ADJUSTER FOOT PLATE RUBBER STOPPER φ25mm AXLE φ3/4" AXLE COLLAR 1-1/4" X 360mm HAND GRIP (pre-assembled) NON SLIP BACK PAD SEAT PAD 114mm PULLEY 90mm PULLEY LEG PRESS CABLE LOCKING SPRING KNOB...
  • Page 5 STEP 1 ASSEMBLE BASE FRAME To ease assembly , Do Not tighten any bolts until instructed. 1. Attach the Base Stabilizer (201) to the Base Frame (1), using two 1/2" X 3-1/4" Hex Bolt (225), three 1/2" Washers (235) and one 1/2"...
  • Page 6 STEP 2 ASSEMBLE MAIN FRAME 1. Attach the Main Frame (202) to The Base Stabilizer (201), using two 1/2" X 4-1/4" Hex Bolts (224), four 1/2" Washers (235) and two 1/2" Nylon Nuts (237). 2. Insert the 25mm Axle (208) into the Leg Press Support (203), then attach to the Main Frame (202) using two Collars (210) {inside the brackets on the Main Frame (202)}, two 1/2"...
  • Page 7 STEP 3 ASSEMBLE LEG PRESS CABLE Assemble cables and pulleys simultaneously. 1. Locate the Floating Pulley Block (21) assembled to the base unit of the GX. Unscrew the Floating Pulley Block (21). Screw the Rubber Stopper (207) into the Top Frame (2) in place of the Floating Pulley Block (21).
  • Page 8 STEP 3 ASSEMBLE LEG PRESS CABLE Leg Press Cable (217) Flat End Threaded End FIG 1 FIG 1 FIG 2 FIG 3 FIG 2 FIG 3 FIG 4,5,6 FIG 5 FIG 4 FIG 4 FIG 5 FIG 6 FIG 6...
  • Page 9 6. Enjoy many years of a Fit Lifestyle. Thank you for purchasing the BodyCraft GX GYM LEG PRESS. You have any questions, please call your local BodyCraft dealer or call our customer service department at 800-990-5556...
