Summary of Contents for SIGLENT CPL5100

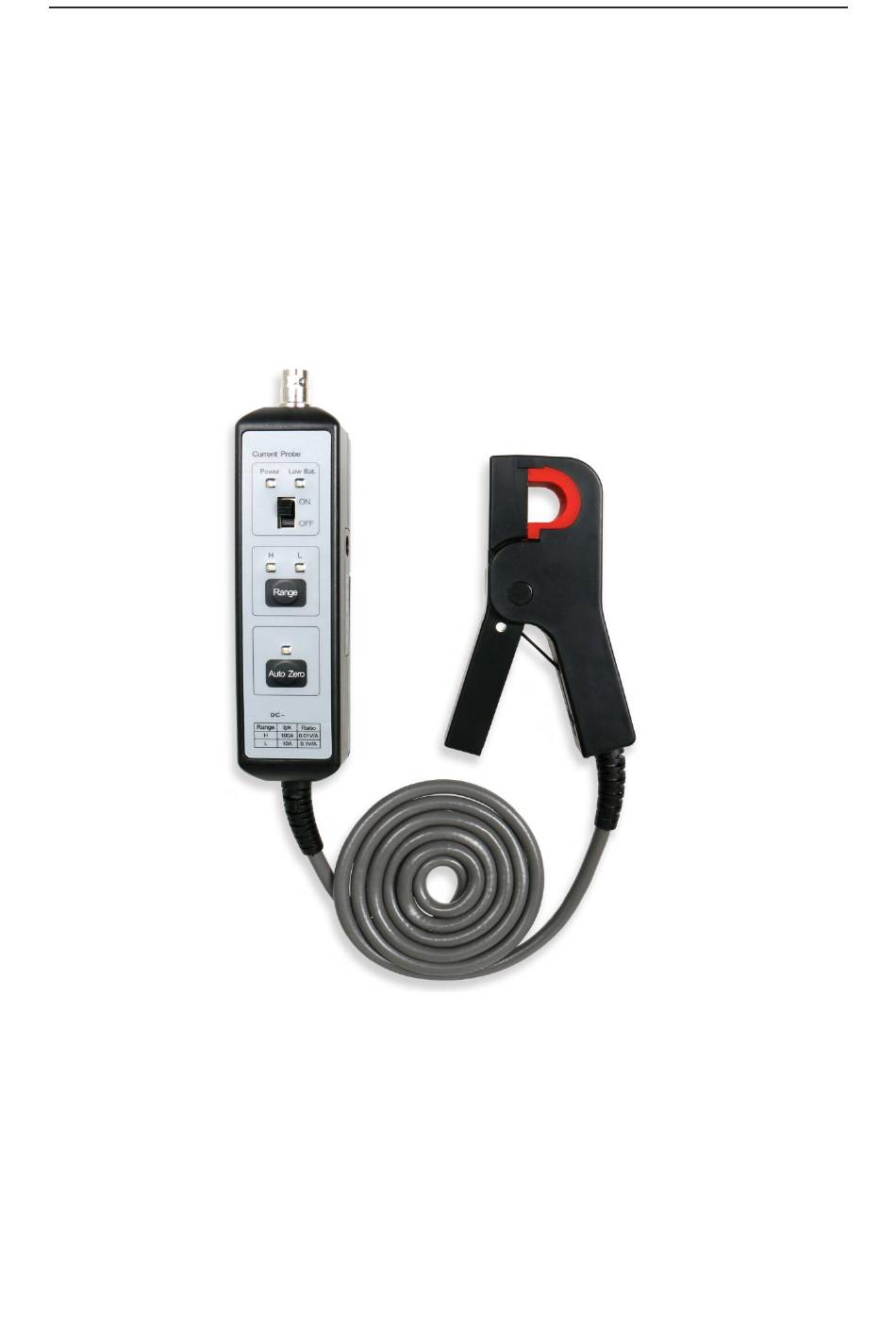

  • Page 1 AC/DC Current Probe CPL5100 (100A/600kHz) 600kHz...
  • Page 2: Preface

    Preface First of all, thank you for purchasing our products, this instruction manual is the description about the function, usage, operation attention points, etc. Before use, please read the instructions carefully and use correctly. Manual annotation will use the following symbols to distinguish. This symbol means it is harmful to the machine and human body;...
  • Page 3: Cpl5100 Brief Summary

     When the battery voltage is lower than 6.5V, the probe will indicate a low voltage alert, please change the battery. You can use a 9V alkaline battery for longer time. CPL5100 Brief Summary Max current Max RMS Band width...
  • Page 4: Table Of Contents

    Catalog Preface…………………………………………… ……………………………………………1 CPL5100 Brief Summary……………………………………………………………….…..2 Summary ……………………………………………………………………………….……...4 Introduction about probe and accessories……………………………………………………...4 Electronic Characteristics……………………………………………………………………...6 Operating Method…………………………………………………………...…………………8 Mechanic Characteristics………………………………………………………………….…...9 Environment Characteristics…………………………………………………………………...9 Maintenance……………………………………………………………………………………9 Treatment if anything wrong……………………………………………………………….…10 Packing List……………………………………………………………...………………….. 10...
  • Page 5: Summary

    1. Summary CPL5100 is a kind of current probe that can measure both DC and AC current up to 100A (70.7Arms). The band width of CPL5100 is 600 kHz (-3dB).CPL5100 provides two range option of 10A and 100A, the users may choose the correct range according to the current value.
  • Page 6: Electronic Characteristics

    ON: Power on and probe work; OFF:Power off and probe do not work.  Power indicator: When the power switch is on, the indicator is lighted green.  Battery Low Voltage Indicator: when the voltage of the battery is lower than 6.5V, the power indicator will light red, reminding the users to change battery.
  • Page 7 Test Condition: 23℃, 60%RH, cable under test get through the test center, load resistance 1MΩ Range level 50mA~10A Peak 1A~100A Peak Current range Attenuation accuracy 0.1V/A 0.01V/A 500mA~40A Peak : 4%± 50mA;40A~100A Peak : 3%± 50mA Typical DC precision ± 15% Maximum DC-600kHz Refer to the typical Amplitude frequency Band-width(-3dB) characteristic (Figure 1)
  • Page 8 DC+AC peak value AC peak value 1200 AC peak to peak value 70.7 7.07 RMS CAT III RMS CAT II 70.7 7.07 70.7 7.07 RMS CAT I Figure 1 CPL5100 Typical Gain VS Frequency curve Figure 2 Max current VS Frequency curve...
  • Page 9 Figure 3 Typical DC linearity (0.01V/A level) 4. Operating instruction Set the coupling mode of the oscilloscope to DC and the input impedance to 1MΩ; To  make it easy to read, users can set the display unit of the oscilloscope from voltage to current display.
  • Page 10: Mechanic Characteristics

     Adjust the vertical sensitivity of the oscilloscope to get a stable waveform. 5. Mechanic Characteristics Size of the front current clamp About 100*20*60mm Size of the back output box About 137*33*35mm Operation altitude 0~2000 meter Maximum diameter of the conductor 12mm ø...
  • Page 11: Packing List

     To maintain the performance of the product, there can be one check or calibration every year. 8. Troubleshoot Problem Reason Treatment Power is off Turn on the power. Please set it to DC No output signal or Oscilloscope is AC mode mode amplitude is low Check the clamp, close...
